Boss Audio Systems 865DBI User Manual

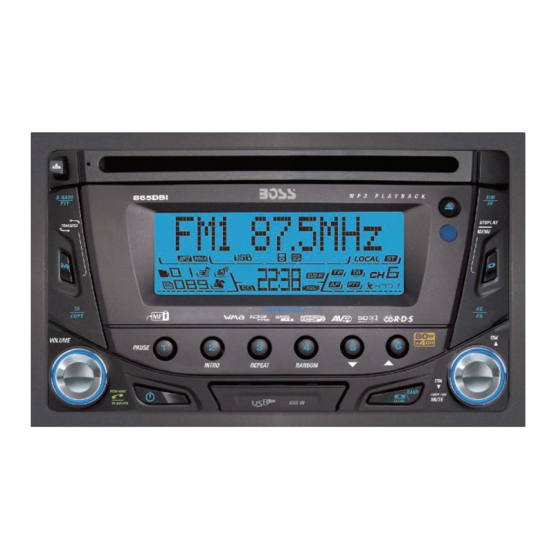

Mp3-compatible double-din cd receiver with built-in ipod docking station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Boss Audio Systems 865DBI

Summary of Contents for Boss Audio Systems 865DBI

  • Page 2: Table Of Contents

    CONTENTS LIST PAGE CONTENTS ACCESSORY INCLUDED INSTALLATION DETACHABLE CONTROL PANEL WIRING DIAGRAM CONTROL PANEL FUNCTION iPod OPERATION BASIC OPERATIONS MENU OPERATION AUDIO OPERATION TUNER OPERATION RDS OPERATION CD /MP3/WMA OPERATION USB OPERATION MEMORY CARD OPERATION MUSIC FILES COPYING / TRANSFERRING MUSIC FILES ERASING FILES MANAGER BLUETOOTH HAND FREE OPERATION...

  • Page 3: Accessory Included

    1. ACCESSORY INCLUDED When first unpacking your new full detachable DVD head unit, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the player. Owner’s Manual Warranty Card Remote control Lithium Battery 1.

  • Page 4: Installation

    2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 5: Detachable Control Panel

    3. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P) Press the panel release button. Slighly lift up the panel & pull out the panel side way in order to remove the front panel. WARNING Do not try to remove the panel by pulling directly towards you.
  • Page 6 RESETTING THE UNIT: After releasing the front panel, use a pencil or any non-metalic object to press & hold the reset button for five seconds to reset the unit. PRESS DOWN RESET...

  • Page 7: Wiring Diagram

    4. WIRING DIAGRAM (20 PIN + ISO PLUG) ANT. FUSE REAR FRONT SUB-W OUT 20-PIN AUDIO/POWER HARNESS (See Figure 1) CONNECTOR (See Figure 2) Figure 2 WIRE COLOR FUNCTION/LABEL ISO CONNECTOR 4PIN+8PIN GREY/BLACK RIGHT FRONT SPEAKER (-) FEMALE WITH MALE TERMINAL GREY RIGHT FRONT SPEAKER (+) VIOLET...

  • Page 8: Control Panel Function

    5. CONTROL PANEL FUNCTION(RDS+BLUETOOTH+iPod) 12 13 OPERATIONS: SYSTEM TUNER CD/M P3/W MA Blu etooth iPod Long Long Long Short Long Short Long Short Short Short Press Press Press Press Press Press Press Press Press Press Power Eject Panel release button Ph on e Audio Menu Enter...

  • Page 9: Ipod Operation

    6. iPod OPERATION INSTALLING iPod INTO THE BUILT-IN iPod DOCKING Always follow the below steps to install the iPod into the docking station. Incorrect or improper installation may cause permanent damage to the docking or the iPod unit. Step 1 Press down the button as indicated Step 5 Once the stick is completely...
  • Page 10 REMOVE iPod FROM THE BUILT-IN iPod DOCKING To take out the iPod from the docking station, user can first detach the front panel, and repeat step 1 to step 8 to take out the iPod & return the iPod docking inside the unit’s cabinent. Step 1 Step 5 Press the button as indicated below to...
  • Page 11 iPod FULL CONTROL / OPERATION This unit is equipped with iPod Ready function which allow end user to have direct control of the iPod on the front panel control button and display iPod song information on the unit's LCD display. Please read below for more details operation.
  • Page 12 Once selected the desire searching method, within 10 second press the AUDIO button as confirm & access into the searching mode, then turn the rotate encode volume knob to navigate thru the Album or Artist or Song contained in the iPod. Press the AUDIO button to confirm & play the selected song.

  • Page 13: Basic Operations

    7. BASIC OPERATIONS 3) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 1) POWER ON/OFF BUTTON ( Press POWER button or any other button on the front of the radio to turn the unit on. Press POWER button again to turn the unit off.

  • Page 14: Menu Operation

    8. MENU OPERATION 18) MENU FUNCTION LIST (MENU) Press DISPLAY/ MENU for more than 3 seconds to access the menu. will appear in the display momentarily. Navigate the menu by pressing DISPLAY/ MENU momentarily to move forward to the next option. The menu can also be navigated by using the Tuning Up or Tuning Down Button to move to the next or previous option.

  • Page 15: Audio Operation

    9. AUDIO OPERATION Audio Menu Pressing “AUDIO button to access the Audio Menu. User can navigate thru the Audio Menu items ” by pressing the / “AUDIO” button repeatedly, or by pressing the Tuning Up or Tuning Down Button. Once the desired menu item appears on the display, adjust that option by using the Volume Up or Down button within 5 seconds.

  • Page 16: Tuner Operation

    10. TUNER OPERATION BAND BUTTON (BAND/SEARCH) Press BAND to change between FM bands and AM(MW) bands. TUNING UP/DOWN BUTTON Manual Tuning Turn & Hold the Up Tuning or Down Tuning button for more than 3 seconds to move the radio frequency number up or down one step. Auto Seek Tuning Turn &...

  • Page 17: Rds Operation

    11. RDS OPERATION RDS functions The unit is equipped with the following RDS function: - AF Alternative Frequencies - CT Clock Time - EON Enchanced other Network - PI Program identifications - PS Program service name - PTY Program Type - REG Regional Change - TA Traffic Announcement - TP Traffic program...

  • Page 18: Cd /Mp3/Wma Operation

    12. CD /MP3/WMA OPERATION INSERT AND EJECT CD Insert a CD label-side up with the unit turned on, and the disc will begin to play. Press the Eject button to stop CD play and eject the CD. The unit does not have to be turned on to eject the CD. CD-DA OPERATION 12) PAUSE BUTTON Press the pause button to suspend disc play.
  • Page 19 MP3/WMA Encoder and CD Writer Settings Use the following settings when compressing audio data in MP3 data with the MP3 encoder. Transfer bit rate : 32- 320 kbps Sampling frequency : 32,44.1,48 kHz(WMA) 16,22.05,24,32,44.1, 48kHz (MP3) When using a CD writer to record MP3/WMA up to the maximum disc capacity, disable additional writing.
  • Page 20 FILE/FOLDER PLAY There are three different play methods as following: File/Folder Intro play: Press M2 button more than 3 seconds during playing MP3/WMA disc for “intro play” all files of the current folder. Intro play should restart from the first song of the current folder, after all files in the current files have been intro-played.

  • Page 21: Usb Operation

    13. USB OPERATION The unit can support USB Host Function. It can playback MP3 and WMA Audio format which are stored into USB Memory Stick or USB interface Music Player. Please read below before you start the operation of USB HOST Function. Inserting and Removing USB Drive Warning: Never Detach the Panel when a...

  • Page 22: Memory Card Operation

    14. MEMORY CARD OPERATION The unit can support playback MP3 and WMA Audio format which are stored into SD and MMC Memory Card . Please read below before you start the operation of Memory Card. Inserting and Removing a SD or MMC card on the main unit Inserting the SD or MMC card Click Face...

  • Page 23: Music Files Copying / Transferring

    15. MUSIC FILES COPYING / TRANSFERRING Thanks for the most useful and convenient files transferring function of this unit, user can easily transfer music files between USB Stick, SD or MMC Memory card or Built-In Memory and on the CD Disc. Please read below for the details operation of this function: TRANSFERABLE MEDIA Files are transferable within the following media: Removable USB Stick...
  • Page 24 TRANSFER MP3 OR WMA MUSIC FILES BETWEEN MEDIA DEVICES Select a device by mode button and playback the music file need to be transfer: 1. Long press the COPY button to activate the transfer mode. 2. The LCD will display as default, Rotate the encoder volume knob to navigate thru for selection of the storage media.

  • Page 25: Music Files Erasing

    16. MUSIC FILES ERASING You can erase files from the USB Stick or Memory Card. Please read below for the details operation of this function: ERASABLE MEDIA USB Stick and Memory Card ． ERASING MUSIC FILES ON THE MEDIA There are THREE different methods for erasing files; 1.Erase while the Music File is playing.
  • Page 26 Once enter into the erase mode. User can rotate the encoder to select “ ” to confirm erase or rotate the volume knob to select “ ” to cancel the ERASE mode. If no further button is press within a 5 second time out. The unit automatically resume to the previous mode. Once the “...

  • Page 27: Files Manager

    17. FILES MANAGER The advance “File Management.” System of this unit can help to well you organize all the music files just like a PC . Please read below for details: FOLDERS MANAGEMENT This unit will automatically self-create the below default folders onto any USB /SD / MMC media device, once these devices are inserted into the unit.

  • Page 28: Bluetooth Hand Free Operation

    18. BLUETOOTH HAND FREE OPERATION User Guide For Bluetooth Operation 1. When user use our Bluetooth HEAD UNIT, please make sure the mobile phone you use must / does support Bluetooth functions (Headset or Handsfree profiles or both) 2. Before you start to use our Bluetooth HEAD UNIT, please make sure complete pairing with your mobile phone first.
  • Page 29 Bluetooth Mobile Phone Compatibility List This unit can support Bluetooth specification v1.2 or higher, and compatible with Bluetooth profiles such as handsfree or headset profiles. however the functionality may be limited due to some phones' own dedicated interfacing specification. This list is only updated to the time this list is being printed. This list gives an example of bluetooth mobile phone available on the market, if your Bluetooth mobile phone is not on the list, please try it out in practice or try your phone at the local dealer or consult with the local dealer in case it is not mentioned in the list.
  • Page 30 2. HTC & LG KS 20 LG Viewty KG320 Shine KE970 HTC TyTNII HTC Touch Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject T alking Audio T ransfer Volume up/down Hang up Audio T ransfer Dialing Volume up/down Stop/Pause/Play...
  • Page 31 3. MOTOROLA Features Caller ID A2DP/AVRCP Paring Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer T alking Volume up/down Hang up Audio T ransfer Dialing Volume up/down Stop/Pause/Play Stereo Volume control Control Forward/Backward Next/Previous MOTOROLA 明 (A1200) V600 V501 Features...
  • Page 32 4. NOKIA 5610 6110 6300 5700 Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer T alking Volume up/down Hang up Audio T ransfer Dialing Volume up/down Stop/Pause/Play Stereo Volume control Control Forward/Backward Next/Previous NOKIA 6233...
  • Page 33 NOKIA 6111 6270 6600 6230 Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer T alking Volume up/down Hang up Dialing Audio T ransfer Volume up/down Stop/Pause/Play Stereo Not Supported Not Supported Not Supported Not Supported Volume control Control...
  • Page 34 SAMSUNG E568 D508 Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer T alking Volume up/down Hang up Dialing Audio T ransfer Volume up/down Stop/Pause/Play Stereo Not Supported Not Supported Volume control Control this function this function Forward/Backward...
  • Page 35 7. SONYERICSSON C902 Z750i W580i S500i K610i Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer T alking Volume up/down Hang up Audio T ransfer Dialing Volume up/down Stop/Pause/Play Volume control Stereo Forward/Backward Control Next/Previous SONYERICSSON...
  • Page 36 SONYERICSSON S700i W550i Z600 T68i T610 Features Caller ID A2DP/AVRCP Paring In-Band Ring T one Ringing T alk Reject Audio T ransfer Volume up/down T alking Hang up Dialing Audio T ransfer Volume up/down Stop/Pause/Play Stereo Not Supported Not Supported Not Supported Not Supported Not Supported...
  • Page 37 BLUETOOTH HAND FREE PANEL FUNCTION KEY MATRIX Panel Function Button Blue Tooth Hand Free Function Short Press Enter Phone number input mode AUDIO Long Press Confirm Dialing the input Phone Number Use for numeric input Encoder volume Knob 1. Reject Incoming call BAND 2.
  • Page 38 PAIRING Pairing The Bluetooth System Between User’s Mobile Phone & The Unit Access into MENU - PAIRING mode to activates the operation of Pairing . Please see MENU Operation for more details of how to access into MENU mode . Once the is appearing on the LCD Display, press the AUDIO button to activate the Pairing mode.

  • Page 39: Incoming Call

    The unit will be Auto Re-Connection by following operation . Every time turn the ignition key from off to on, the unit will Auto re-connect with the mobile phone one. Every time when user long press AUDIO button or short press MODE button confirm dialing a call, the Unit will Auto Re-connect with the Mobile Phone once ( Only if this Mobile Phone has been paired with the unit previously ).

  • Page 40: Outgoing Call

    OUTGOING CALL Making An Outgoing Call Press the “PHONE” (AUDIO)button to start making an outgoing call. The LCD Display will display And a cursor will keep blinking while waiting the user to enter the phone number. Rotate the encoder knob to navigate thru the numeric 0-9 *, # & + . Press the”...
  • Page 41 DIALED LIST To Find the Last 10 Dialed Number The unit can memory up to 10 last dialed number. Press the “PHONE” (AUDIO) button, after the LCD appeared display “ ”, then Long press “PHONE” (AUDIO) button. The last dialed number as the first number on the list will display on the LC D. Rotate the encoder knob to navigate through the 10 last dialed number.
  • Page 42 BLUETOOTH AUDIO STREAMING A2DP (ADVANCED AUDIO DISTRIBUTION PROFILE) User can listen to music files on an audio device on this unit if the audio device supports A2DP (Advanced Audio Distribution Profile) of Bluetooth Technology. Please read the below instruction before operating the Bluetooth Audio streaming function on this unit. Connecting A Bluetooth Audio Device With This Unit Before using audio device to play music on this unit, the audio device must be paired with this unit first.
  • Page 43 1) Start playing-Every time when user change mode into “BT AUDIO” mode, this unit will automatically send a “PLAY” command via AVRCP to the audio device to command the auto start playing song in the audio device. The PLAY command may differ depending on the Audio device. If the Audio device is not able auto start playing song after changed mode into “BT AUDIO”...

  • Page 44: Remote Function

    . REMOTE FUNCTION( iPod OPERATIONS: SYSTEM TUNER MP3/W MA iP od Long Long Long Long Short Short Short Short Press Press Press Press Press Press Press Press Power Display Menu Source Mute Vol ume Up Vol ume Do wn Track/File Fast Fast Se ek Up...

  • Page 45: Specifications

    20. SPECIFICATIONS CD PLAYER System Compact disc audio system Usable disc Compact disc Sampling frequency 44.1KHz No of quantization bits 1bit Frequency 5-20,000Hz Number of channels 2 stereo S/N Ratio 70dB MEDIA SECTION USB Host Host 1.1 compatibles 2.0 Memory Card Support Type of Memory Card SD and MMC RADIO SECTION...

  • Page 46: Trouble Shooting

    21. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition is not on. No power If the power supply is properly connected to the car accessory terminal, switch the ignition key to “ACC”...
  • Page 47 10 R - 02 1397...
