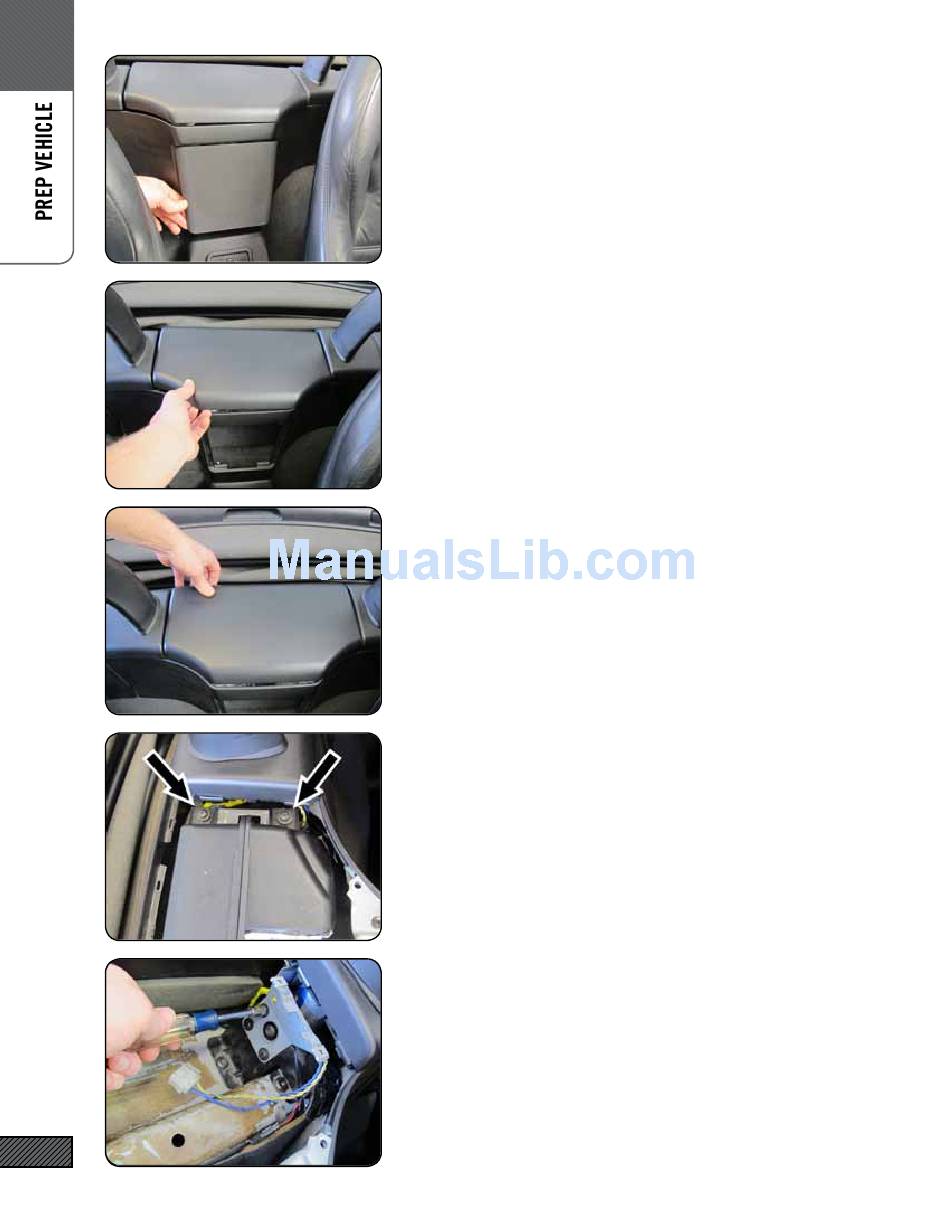

1. reMoVe front grille
Remove the grille from the front of the subwoofer compartment
by pulling out and lifting at the bottom edge.
2. loosen front edge of coVer
Pull up firmly on the front edge of the compartment cover to re-
lease two friction clips.
3. reMoVe coVer
Pull firmly on the rear edge of the cover to release the two rear
clips. Remove the cover.
4. reMoVe enclosure
Remove the (4) Phillips head screws and remove the enclosure.
5. reMoVe Mounting Brackets
Remove both of the existing mouting brackets with a 10mm sock-
et. KEEP THESE MOUNTING BOLTS! You will be re-using them.
5
