ASSEMBLY INSTRUCTIONS HOODED GAS GRILL
Model: UC510PSS
FOR OUTDOOR USE ONLY
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC510PSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ultra chef UC510PSS

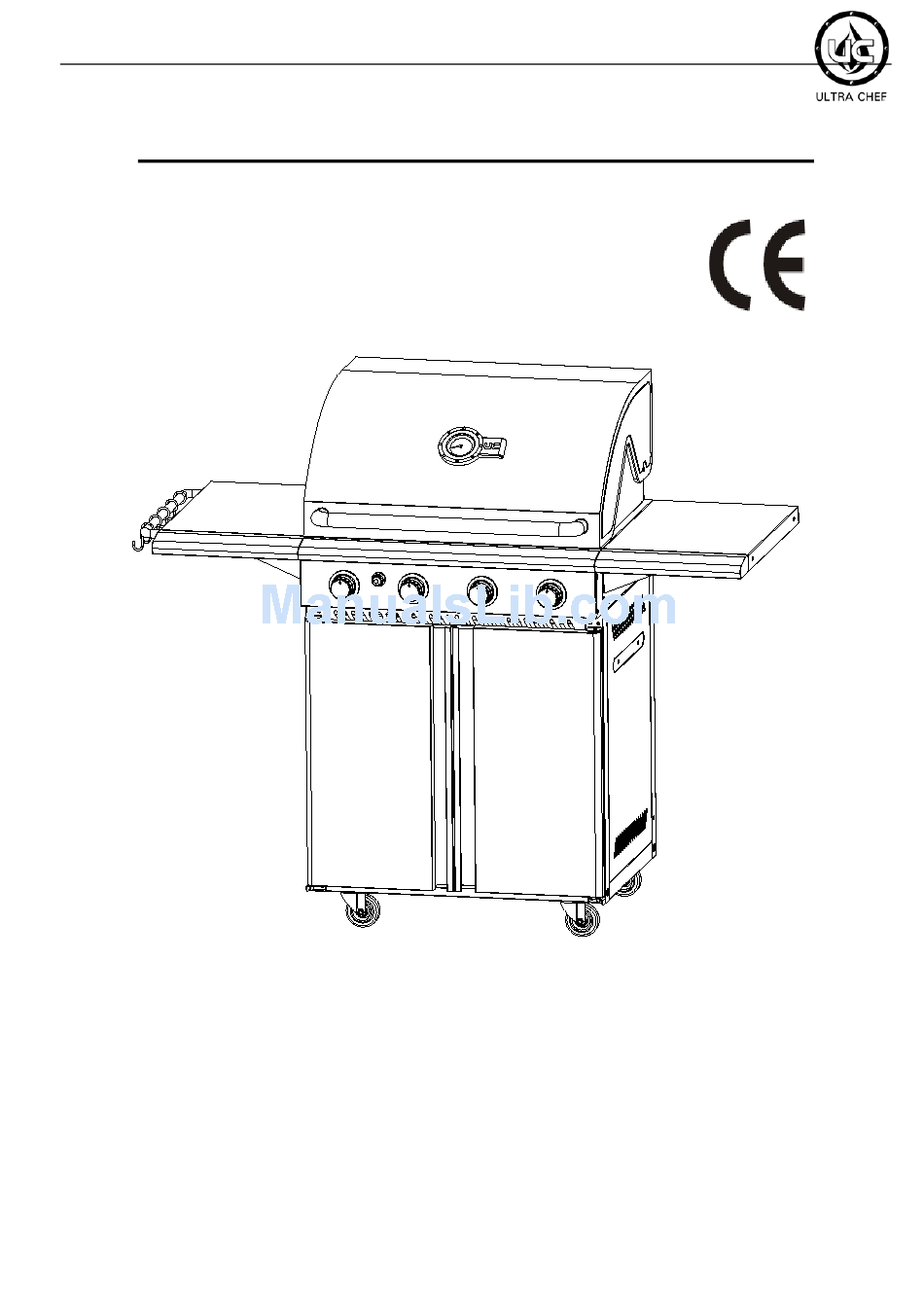

  • Page 1 ASSEMBLY INSTRUCTIONS HOODED GAS GRILL Model: UC510PSS FOR OUTDOOR USE ONLY PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE...
  • Page 2 WARNING Hazardous fire or explosion may result if instructions are ignored It is the consumer’s responsibility to see that the barbecue is properly assembled, installed, and taken care of. Failure to follow instructions in this manual could result in bodily injury and/or property damage. FOR YOUR SAFETY IF YOU SMELL GAS: 1.
  • Page 4 PARTS LIST UC510PSS Description 8240 Hood assembly Temperature gauge Protective pad Hood handle Body back cover board Cooking rack-fixed Cooking rack-fixed support Body outer side panel Body panel-left Grill plate Flame tamer Body panel-rear Body panel-right Burner-main Electronic wire set...
  • Page 5 ASSEMBLY : UC510PSS Please note the Ref #53 direction of the hole Ref #53 Ref # 38 Ref #39 Ref #54 Ref # 51 Ref # 54 M6x12x 16 PCS M5x50x 4 PCS Ref # 36 Ref # 49 M6x50x4PCS...
  • Page 6 Ref # 30 Hang the side table on the pre- fixed screws, then tighten the screws with a screwdriver. Ref # 28 Ref # 29 M6x12x 2 PCS Ref #30 Ref # 35 Ref #11 M6x12x 2 PCS Ref # 6 M6x30x 4 PCS Ref # 10...
  • Page 7: Connecting The Gas Cylinder To The Appliance

    WARNINGS INFORMATION IMPORTANT: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have any questions concerning assembly or operation, consult your dealer or LPG Gas Company. When used on the ground always place the appliance and cylinder on flat level ground.
  • Page 8: To Check For Leaks

    Storage of an appliance indoors is only permissible if the cylinder is disconnected and removed from the appliance. When the appliance is not to be used for a period of time it should be stored in its original packaging and stored in a dry dust free environment. Gas Cylinder The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be disconnected.
  • Page 9: Cleaning And Care

    Turn OFF the gas at the cylinder after testing. If leakage is detected and cannot be rectified. Do not attempt to cure leakage but consult your gas dealer. Lighting Instructions for barbecue Open the hood of the barbecue before attempting to light the burners. Turn all the control knobs clockwise to “OFF”...
  • Page 10 CLEANING “Burning off” the barbecue after every use (for approx 15 minutes) will keep excessive food residue to a minimum. OUTSIDE SURFACE Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. If the inside surface of the barbecue lid has the appearance of peeling paint, baked on grease build-up has turned to carbon and is flaking off.
  • Page 11: Troubleshooting

    SERVICING Your gas barbecue should be serviced annually by a competent registered person. TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION 1.LP gas cylinder is empty 1.replace with full cylinder Burners will not light using the 2.faulty regulator 2.have regulator checked ignition system 3.obstructions in burner or replace 4.obstructions in gas jets or gas hose...
  • Page 12 How to maintain your BBQ 1 Wipe over the stainless steel surface with rusty resistant oil when you storage the BBQ or after used. 2.Fit a rainproof cover over the BBQ when it is not in use.
  • Page 13 Battery insert : Remove ignition button, insert 1 AA battery Warning: Here for storage only, the gas cylinder cannot be placed inside when the BBQ is in use.
  • Page 14: Wolf Steel, Uk

    2010 Ultra Chef 375 Model Limited Warranty 3 YEARS STAINLESS STEEL BURNERS-PERFORATION 1 YEAR ALL OTHER COMPONENTS To process a warranty claim please contact ONE of the following: WOLF STEEL, UK T. 01676 522788 Email: info@napoleongrills.co.uk Napoleon Grills by Heartland T.
