Energenie EGM-PWML User Manual

Energy meter with memory
Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
HANDBUCH
HANDLEIDING
MANUEL DESCRIPTIF
EGM-PWML
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
ENERGY METER WITH MEMORY
КЕРІВНИЦТВО КОРИСТУВАЧА

Advertisement

loading
Need help?

Need help?

Do you have a question about the EGM-PWML and is the answer not in the manual?

Questions and answers

Related Manuals for Energenie EGM-PWML

Summary of Contents for Energenie EGM-PWML

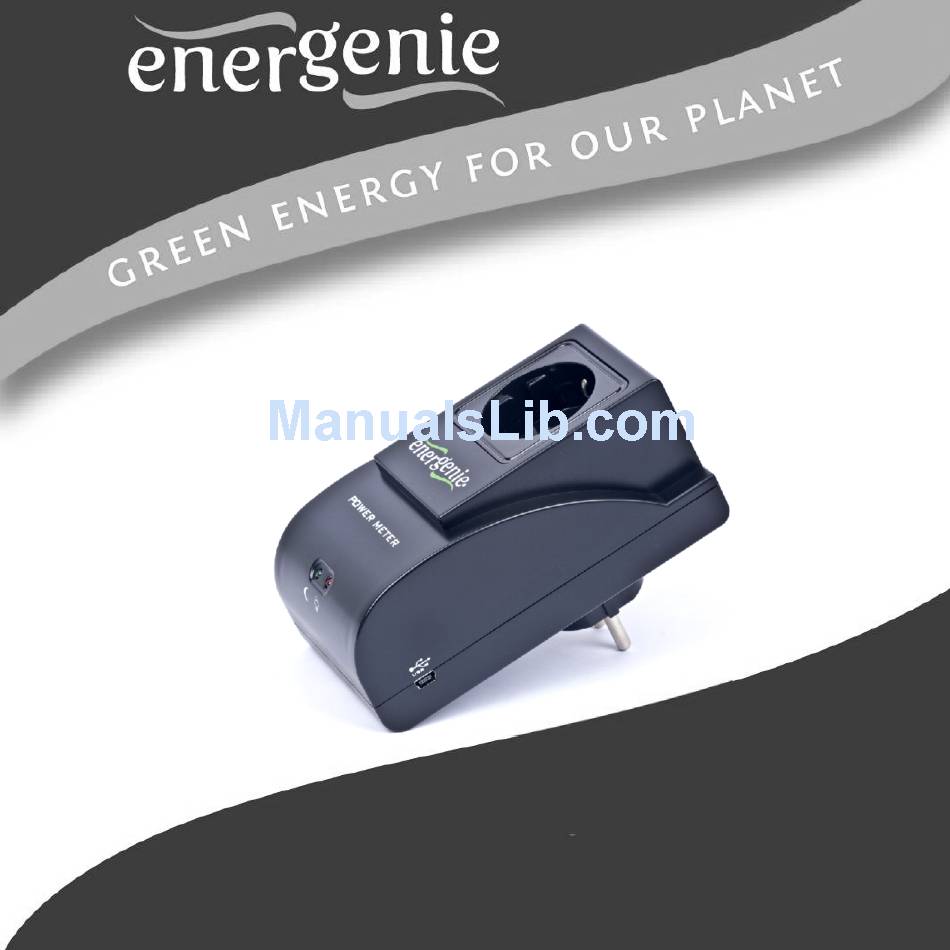

  • Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EGM-PWML РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ ENERGY METER WITH MEMORY КЕРІВНИЦТВО КОРИСТУВАЧА...
  • Page 2 EGM-PWML ENERGY METER WITH MEMORY Energy Meter with memory Energiemessgerät EnergieMeter Compteur d'énergie avec de la mémoire Измеритель мощности и энергии Вимірювач потужності та енергії All brands and logos are registered trademarks of their respective owners...

  • Page 3: Specifications

    EGM-PWML ENERGY METER WITH MEMORY Features  USB Energy Meter, creates exact insight in your energy consumption (voltage/current/power)  No permanent computer connection required  Stores 34 hours of energy consumption data in the internal memory  Power Meter software helps calculating the actual energy costs of your equipment ...
  • Page 4 EGM-PWML ENERGY METER WITH MEMORY 1. Indicators and controls of the EGM-PWМL Socket 1 Day/Night mode indicator Load indicator USB socket Figure #1 All brands and logos are registered trademarks of their respective owners...
  • Page 5 4. Installation of EGM-PWML To use EGM-PWML please follow next steps: 1. Install the software. 2. Connect the EGM-PWML to the PC with USB cable.  It is strongly recommended to avoid damp or wet places for installation.  EGM-PWML should be connected to the European AC wall socket of the standard DIN 49 440;...
  • Page 6 “online” automatically when it is connected to a PC with the Power Manager software running. In this mode the software keeps downloading the power readings from the EGM-PWML into a database. In offline mode, the EGM-PWML records the real power consumed and stores it into the internal memory. The internal memory capacity is enough for around 34 (thirty four) hours of continuous recording.
  • Page 7 EGM-PWML ENERGY METER WITH MEMORY The data can then be viewed and analised with the Power Manager software. The software shows different energy characteristics changing over time – including the money spent and the power consumption (kWh). When the software is started, the main power manager window will appear, which shows a list of all connected devices (see Figure #2 below).
  • Page 8 EGM-PWML ENERGY METER WITH MEMORY Push the Device settings button (bottom right here) to set the device- specific options (see Figure #3 below) Figure #3 EGM-PWML In the settings screen you are able to change the name of your device (in the Name field) and the data downloading frequency (in the Measurement reading period field) - from 2 to 10 seconds.
  • Page 9 Note: Device IP, Port and Enabled fields will be grey – these functions are only available on the LAN version of the EGM-PWM. To open the Power Meter window, select your EGM-PWML device from the list (see Figure #2 above) and then click the Power meter button (see the chapter 7 below).
  • Page 10 EGM-PWML ENERGY METER WITH MEMORY Figure #4 Push Maximize button in this window to open the full-size Power Meter window – see Figure #5 below. Figure #5 All brands and logos are registered trademarks of their respective owners...
  • Page 11 EGM-PWML ENERGY METER WITH MEMORY This window displays all the measured values:  Real power (P)  Active impedance (R)  Frequency of current (Fq)  Energy consumed (E)  The cost of energy consumed (money sign)  RMS voltage (V rms) ...
  • Page 12 EGM-PWML ENERGY METER WITH MEMORY Figure #6 Choose the rate (per kWh) and currency. If you have different rates for peak hours and off-peak hours, just check the box Use Day/Night modes. You will then be able to enter the dual rates and the start/finish times for these modes.
  • Page 13 EGM-PWML ENERGY METER WITH MEMORY 8. Using the charts In the online mode the values of P, R, Fq, Irms, Vrms and Cost are continuously logged into the database. These readings can be used to build time charts. To display the charts just click on the desired value in the Main Power Meter window (see Figure #5 above) or push the Chart button in the Power Manager window (see Figure #2 above).
  • Page 14 EGM-PWML ENERGY METER WITH MEMORY Figure #7 EGM-PWML Cost All brands and logos are registered trademarks of their respective owners...
  • Page 15 EGM-PWML ENERGY METER WITH MEMORY The horizontal axis represents the date/time and the vertical axis represents the values of the chosen parameter. Note: The scale of the vertical axis changes automatically once you browse or zoom the chart. The scale will be chosen in such a way that all the values within the displayed time period fit onto the screen.
  • Page 16 EGM-PWML ENERGY METER WITH MEMORY Tip: You can calculate the total energy consumption within a certain period pushing the Calculate button - see Figure #8 below Figure #8 EGM-PWML Real Power All brands and logos are registered trademarks of their respective owners...
  • Page 17 EGM-PWML ENERGY METER WITH MEMORY  - The zooming tool allows changing the time scale of the chart. Push the zooming tool button and then click with the left mouse button to adjust the scale to the desired level ...
  • Page 18 EGM-PWML ENERGY METER WITH MEMORY 9. Advanced features The Power Manager software also allows you to define a number of user-defined events. Possible events are: Lighting up the indicators in the Power Meter window (see Chapter 7 above), or run a user-specified application.
  • Page 19 EGM-PWML ENERGY METER WITH MEMORY this parameter exceeds a certain maximum – fill in the Max field then. If you wish the event to be triggered when the value of this parameter drops below a certain minimum – fill in the Min field. Secondly you select the desired action from the Action list box.
  • Page 20 EGM-PWML ENERGY METER WITH MEMORY All brands and logos are registered trademarks of their respective owners...
  • Page 21 EGM-PWML ENERGY METER WITH MEMORY All brands and logos are registered trademarks of their respective owners...
  • Page 22 EGM-PWML ENERGY METER WITH MEMORY Waste disposal: Entsorgungshinweise: Do not deposit this equipment with the Werfen Sie dieses Gerät nicht in den household waste. Improper disposal can harm Hausmüll. Unsachgemäße Entsorgung kann both the environment and human health. For sowohl der Umwelt als auch der menschlichen...

  • Page 23: Warranty Conditions

    EGM-PWML ENERGY METER WITH MEMORY WARRANTY CONDITIONS GARANTIE BEDINGUNGEN The warranty period is 24 months and begins with the sale to the end user. The receipt must clearly list Die Garantie beträgt 24 Monate ab Verkaufsdatum the date of purchase and the part number, in addition an den Endverbraucher.

  • Page 24: Conditions De Garantie

    EGM-PWML ENERGY METER WITH MEMORY GARANTIE VOORWAARDEN CONDITIONS DE GARANTIE De garantietermijn bedraagt 24 maanden en gaat in Garantie est de 24 mois a partir de la date d’achat de l'utilisateur final. op de aankoopdatum van het product door de Le talon de garantie doit énumérer clairement la date...
  • Page 25 EGM-PWML ENERGY METER WITH MEMORY ГАРАНТИЙНЫЙ ТАЛОН УМОВИ ГАРАНТІЙНОГО ОБСЛУГОВУВАННЯ 1. Гарантийное обслуживание предоставляется в течение 1. Гарантійне обслуговування надається протягом терміну срока гарантии, при наличии правильно и четко заполненного гарантії, при наявності Гарантійного талону, заповненого гарантийного талона, и изделия в полной комплектации.
