Energenie ENER007 User Manual

OUT OF THE BOX

Before the charger is used for the rst time ensure that
batteries have been inserted. Remove the battery tab or
remove the cover using a small screwdriver and insert the
two batteries ensuring correct polarity. Replace the cover.

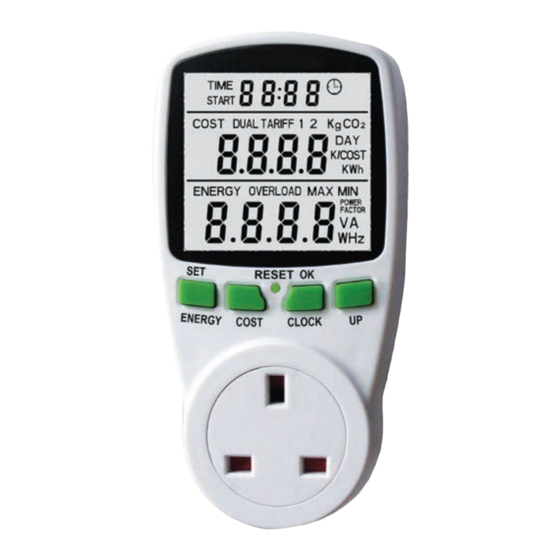

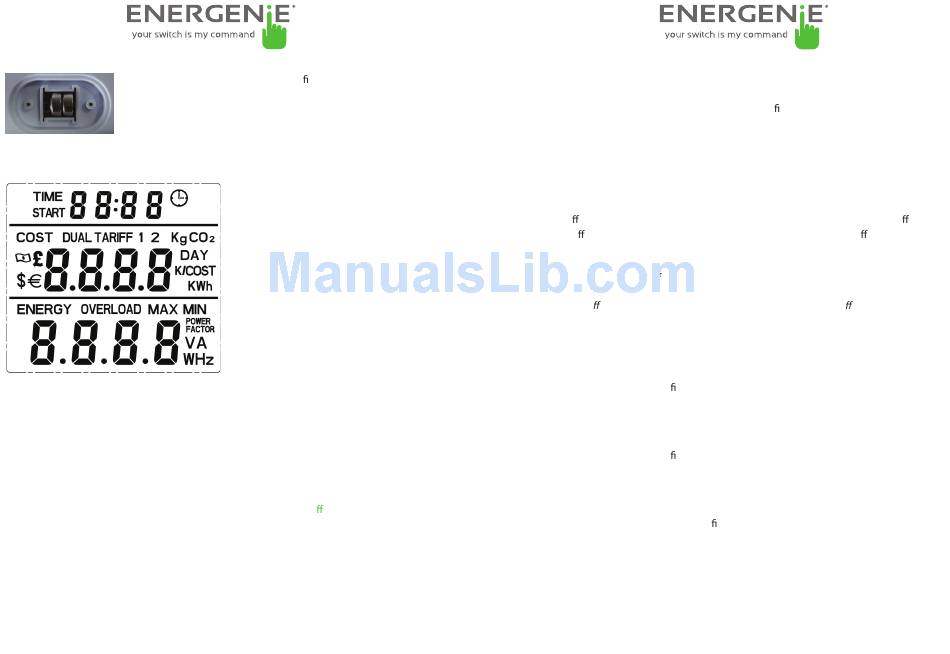

DISPLAY

The display is split into 3 rows:

BUTTONS

• CLOCK:
Pressing the clock button in normal use will cause the display row to
toggle between the time of day and the accumulated time for which energy has
been recorded.
• COST: Pressing the cost button will cause the display row to cycle through values
of accumulated energy » accumulated carbon footprint
energy price setting 2 (only appear if you have chosen dual tari )
• ENERGY: Pressing the energy button will cause the display row to cycle through
instantaneous values of overload power
power factor » max power » min power
• UP:
This button is used to change the values of the digits during the setting-up
process.
• RESET:
The unit can be reset using a pointed implement to press the reset button.
This will clear all accumulated data and return the unit to its factory settings.
Row 1: Display either the time of day
OR the accumulated time for which
energy use has been recorded.
Row 2. Cycle through the display to
show accumulated energy and cost
information.
Row 3. Energy screen to show instanta-
neous metered readings. (Cycle
through with the energy button.)
» energy price setting 1
» accumulated cost
» power » voltage » frequency » current
• SET: This button can be used to move between digits during the setting-up process.
It will also allow the user to cycle through both the energy and cost screens simultane-
ously in normal use.
• OK: (Use during setup)
process.

SET-UP

• Setting the currency and price for kWh:
Press and hold the
display. Use the
to the tari setting procedure. Use the
default tari setting is single. Press the
procedure. The default cost kWh factory setting is 1.00. Use the
through digits and use the
cost button. *( For dual tari : Press the
to cycle through digits and use the
to move to tari -2 setting. Repeat the price setting procedure for tari -2. Exit by pressing
the cost button.)
• Setting the Clock:
Press and hold the
display. Use the
digits. Press the
• Setting the KgCO2 (Optional):
Press and hold the
display. Use the
digits. Press the
• Setting the Overload Power (Optional):
Press and hold the
»
the display. Use the
through digits. Press the
setting is 3120W.
»
Clearing totals
To reset the total time: press SET+CLOCK together
To reset the total power(KWH): press SET+UP together
(this will also clear the Max./Min. Power recorded)
To reset the total cost: press SET+COST together
(Note the KWh and KgCO2 reading will take a few seconds to clear)
