- Page 1 USER MANUAL HANDBUCH HANDLEIDING MANUEL DESCRIPTIF EGM-PWM-LAN РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ ENERGY METER WITH LAN INTERFACE КЕРІВНИЦТВО КОРИСТУВАЧА...
- Page 2 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE Energy meter with LAN interface Energiemessgerät Energiemeter met LAN interface Compteur d'énergie avec interface LAN Измеритель мощности и энергии с сетевым интерфейсом Вимірювач потужності та енергії з мережевим інтерфейсом All brands and logos are registered trademarks of their respective owners...
- Page 3 No external IP-address at home? No problem. Your own user account on EnerGenie.com will let you view and analyze the energy costs via Internet with any PC or even mobile phone. Power Meter software provides basic power consumption readings (home use) and advanced readings (business/scientific use) 1.2.
- Page 4 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE 1.3. System requirements LAN socket Internet connection is required for uploading the information to EnerGenie.com server 1.4. Package contents EGM-PWM-LAN Software CD User manual LAN crossover patch cord ...

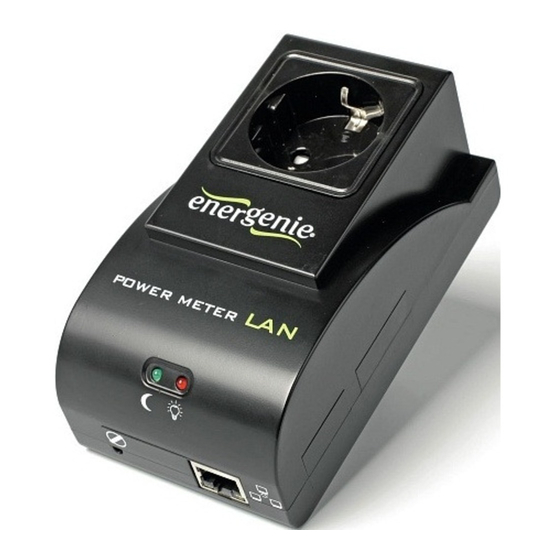

- Page 5 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE 2. Indicators and controls of the EGM-PWМ-LAN Figure #1 Socket 1 Load indicator Day/Night mode indicator Reset button LAN activity indicators LAN socket All brands and logos are registered trademarks of their respective owners...
- Page 6 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE 3. Installation of EGM-PWM-LAN To use EGM-PWM-LAN please follow next steps: Connect EGM-PWM-LAN to the wall socket first and then to the LAN socket (or your computer LAN card) with the provided patch cord or vice-versa. ...
- Page 7 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE NOTE: by default the factory setting of EGM-PWM-LAN is DHCP enabled. If your LAN has a router with built-in DHCP server (which is very common) then EGM-PWM-LAN will automatically get an IP address from the DHCP server. Proceed to section 3.2 below in this case.
- Page 8 IP filtering: disabled Power Manager client port: 5000 ... EGM-PWM-LAN then searches for an IP address from your eventual DHCP server. If no DHCP server is found within 1 minute, EGM- PWM-LAN will then automatically revert to the default settings (see above, with IP: 192.168.0.254).
- Page 9 Follow instructions of the installation software NOTE: Antivirus or firewall software may block connection to EGM-PWM-LAN. Please, configure antivirus/firewall permit connection to the IP address and port of your EGM-PWM-LAN All brands and logos are registered trademarks of their respective owners...
- Page 10 Start/All Programs/Gembird/Power Manager. The IP range where you would like to search for EGM-PWM-LAN will be set automatically according to the IP settings of your LAN adapter but can be changed manually in the Adapter subnet fields.
- Page 11 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE Figure #4 The window of your default internet browser will be then opened to give you access to the built-in web-server. See section 4 below for the further details. All brands and logos are registered trademarks of their respective owners...
- Page 12 4.1. Web-server login page To access the web server of EGM-PWM-LAN, just open Internet Explorer (or other browser) and input the IP address of EGM-PWM-LAN (for example http://192.168.1.241). If you have used LAN Find utility to locate EGM-PWM-LAN then you will be taken to this webpage automatically.
- Page 13 LAN settings page (see section 4.3 below) to complete the IP configuration. 4.2. EnerGenie page With the help of EnerGenie page (see Figure #6 below) you will be able to see the current power consumption of the load connected, Irms, Vrms and Energy.
- Page 14 (regardless whether you created a new or used an existing account) your EGM-PWM-LAN is automatically registered. Return back to the EnerGenie page of your EGM-PWM-LAN (see Figure #6 below). Push Activate button to let the device initiate communication with EnerGenie.com server. The EnerGenie page will then start updating itself until the Status becomes Registered Activated Connected (see Figure #6 below).
- Page 15 After a successful registration and activation the button Register will be renamed to Login (and will then open the Login page of EnerGenie.com) and the button Activate will turn into Deactivate. If by any reason you would eventually decide to stop managing your...
- Page 16 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE EGM-PWM-LAN from Internet use then Deactivate button to stop communication of the device with EnerGenie.com server. If you eventually decide to change registration of your EGM-PWM- LAN and assign it to another account, it will be possible via EnerGenie.com website (see section 5 below).
- Page 17 EGM-PWM-LAN ENERGY METER WITH LAN INTERFACE 4.3. LAN settings page Figure #7 On the LAN settings page (see Figure #7 above) you can set up DHCP, IP address, Subnet mask, Gateway, DNS server and IP filter (up to 3 IP addresses can then be enabled for remote access).
- Page 18 DHCP server so that it always provides the same IP address to EGM-PWM-LAN. To do that you will need to know the MAC address of EGM-PWM-LAN. It can be found on this page or on the bottom sticker of the device.
- Page 19 EGM-PWM-LAN (see Figure #8 below). Figure #8 To be able to setup the schedule of EGM-PWM-LAN you have to first setup its internal clock correctly. Enter the current local time and date. All brands and logos are registered trademarks of their respective owners...
- Page 20 4.3 above). Server name can be convenient to identify the web server if you have more than one EGM-PWM-LAN. It is “Server 1” by default. The password is necessary to access EGM-PWM-LAN both from your web browser and the Power Manager software (see section 6 below).
