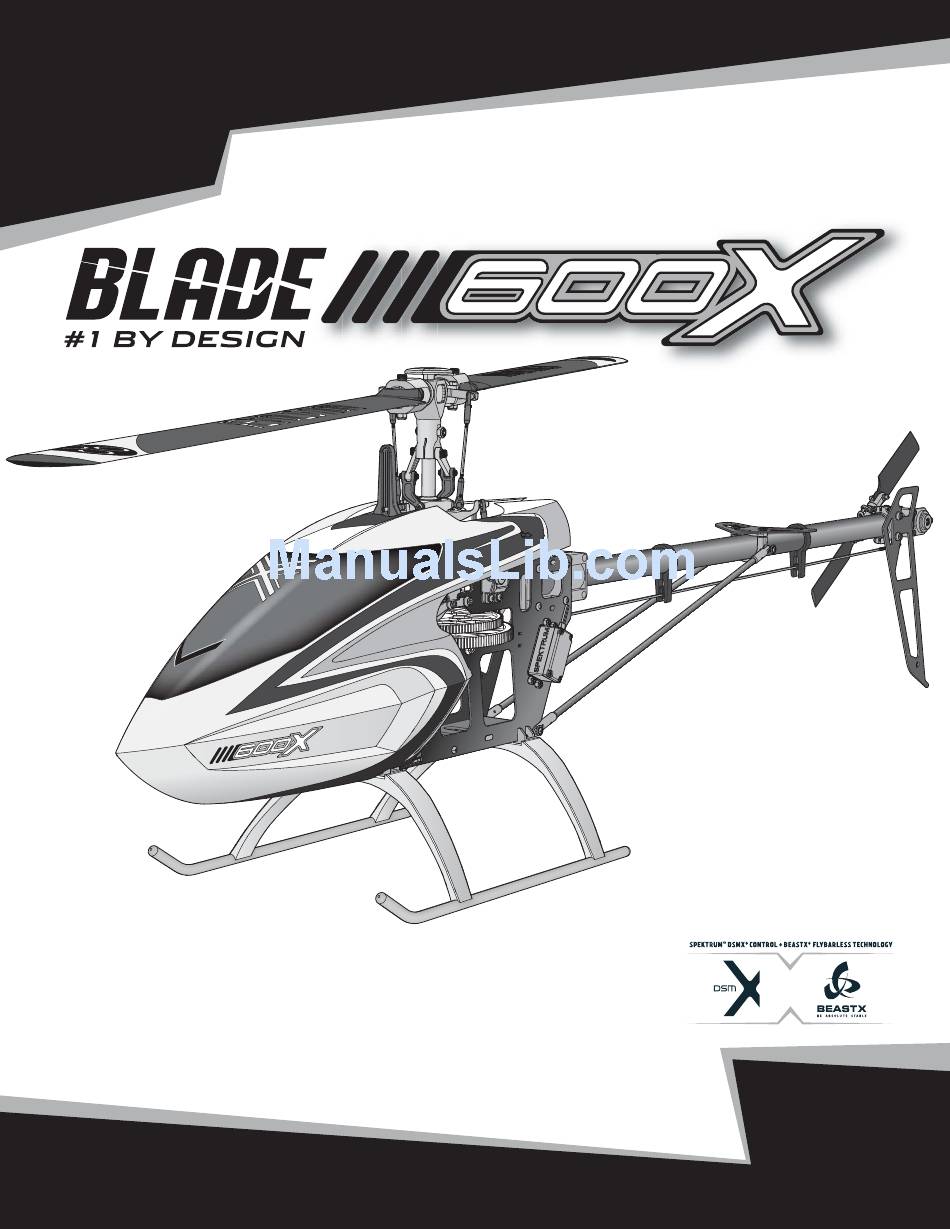

- Page 1 ® Instruction Manual Bedienungsanleitung ® ® Manuel d’utilisation Manuale di Istruzioni...
- Page 2 This is a sophisticated hobby product for advanced helicopter pilots with previous experience in the operation of CCPM helicopters (Cyclic Collective Pitch Mixing or Collective Pitch Helicopter) such as the Blade SR, Blade mCP X or Blade 300 X. It must be operated with caution and common sense and requires some basic mechanical ability.
-
Page 3: Table Of Contents
If this is your fi rst helicopter building experience, there are a few things you Blade 550 X, the Blade 600 X packs a monster 12S Li-Po pack with a might want to get before you start unpacking parts. Many builders prefer... -
Page 4: Tools Needed To Complete
Tools Needed To Complete • 1.5mm, 2mm, 2.5mm, and 3mm hex drivers • Pitch gauge • Ball link pliers • Metric calipers • Needle nose pliers • Petroleum based, light viscosity lube • Phillips screwdriver • Medium cyanoacrolate (CA) • Wire cutter Required Items Items included in the combo kit •... -
Page 5: Head Assembly (H)
Head Assembly (H) Step H1 Step H1 parts (bags H1 and H2) M4 X 22 cap head shoulder bolt M4 locknut 22mm Step H2 Step H2 parts (bag H1) M3 X 18 cap head shoulder bolt (x2) M2 X 5 cap head bolt (x4) Step washer (x4) •... - Page 6 M3 X 14 bolt (x2) M3 X 8 bolt (x2) Control ball (x2) • Loosely install bolts B and C before tightening. • The stepped washer faces the radial bearing in the blade grip. Step H5 parts (bag H4) Step H5...
-
Page 7: Frame Assembly (F)
Frame Assembly (F) ASSEMBLY NOTE: Before assembly, plan your wire routing for the servos. At any point where the servo wire is going to pass through or cross the frame plates, use sandpaper to round the edge of the frame plate to prevent the wire from chafi ng. Step F1 parts (bags F1, F2, and F3) Step F1 Cap head bolt... - Page 8 Frame Assembly cont’d Step F3 parts (bags F3 and F5) Step F3 Setscrew M3 X 11 (x2) Button head screw M3 X 12 (x6) Cap head bolt M3 X 10 (x4) Canopy mounting post (x2) M3 Washer (x6) M3 Recessed washer (x4) •...
- Page 9 Frame Assembly cont’d Step F5 Step F5 parts (bag M1) Washer (x1) One way sleeve (x1) Shoulder cap head bolt M4 X 22 M4 Lock nut Counter sunk self tapping screw M3 X 8 (x5) Setscrew M3 X 4 (x2) Step F6 Step F6 parts (bag F6) 6mm, 18 tooth pinion gear...
-
Page 10: Tail Assembly (T)
Tail Assembly (T) Step T1 parts (bag T1) Step T1 Hexagonal posts (x6) Radial bearing 12 X 18 X 4 (x2) Radial bearing 5 X 10 X 4 (x2) Brass spacer Cap head shoulder bolt M3 X 18 (x4) M3 Lock nut (x4) Step T2 parts (bag T1) Step T2 Button head self tapping... - Page 11 M3 x 10 (x2 ) M3 Recessed washer (x2) Step T4 Step T4 parts (bags T4 and T5) Small inner diameter race Tail blade bolt (x2) Bearing cage Large inner diameter race Tail blade nut (x2) Thrust bearing (x2) Thrust washer (x2)
- Page 12 Cap head bolt M3 X 25 M3 Step washer (x4) Control ball M3 Lock nut • The stepped side of the washer faces the radial bearing. Tail rotor blade removed for clarity viewed from back Step T6a parts (bag T7) Step T6a Button head screw...
-
Page 13: Electronics Installation
Tail Assembly cont’d Step T6b Step T6b parts (bags T8 and T3) viewed Self tapping screw from back M3 X 12 (x6) Self tapping screw M2.5 X 8 (x2) M3 Recessed washer (x6) viewed from left 90° Ball link (x2) 120 mm Rear pushrod guide insert Front pushrod guide insert... -
Page 14: Flight Battery
Electronics Installation cont’d AR7200BX Arming Speed control and BEC 1. Lower the throttle. 2. Power on the transmitter. 3. Center the throttle trim. 4. Turn throttle hold ON. 5. Attach hook material to the helicopter frame and loop material to the battery. 6. -
Page 15: Servo Arms And Links Installation
Main Rotor Installation Main Rotor Blades Main Rotor Blade parts (bag E2) Main blade shoulder bolt M4 X 25 (x2) M4 Lock nut (x2) • The rotor blades should be tight enough to hold their position if you hold the helicopter sideways, but loose enough to swing freely if you move the helicopter and stop abruptly. -
Page 16: Programming Your Transmitter
When you move the throttle hold switch to the ON position, the helicopter motor IMPORTANT: the speed control shipped with your Blade 600 X is pre-pro- turns off. You will still have control of the helicopter cyclic and rudder commands. -
Page 17: Ar7200Bx Setup
AR7200BX Parameter Menu Tips Refer to the Spektrum AR7200BX manual to fi ne tune the Blade 600 X to your If you would like to have the cyclic behavior to feel more linear OR more like fl ying and control style via the AR7200BX parameter menu. -
Page 18: Control Test
Control Tests Neutral (Viewed from left) Neutral (Viewed from back) Swashplate set to 0° (Neutral) Positive pitch (Viewed from left) Collective pitch Negative pitch (Viewed from left) Mode 1 Mode 2... - Page 19 Forward elevator (Viewed from left) Elevator Back elevator (Viewed from left) Mode 1 Mode 2 Right aileron (Viewed from back) Aileron Left aileron (Viewed from back) Mode 1 Mode 2...
-
Page 20: Low Voltage Cutoff
The Blade 600 X is more responsive • The rotor head speed is constant. than other Blade helicopters. If you are not an experienced 3D or collective pitch • The main rotor will increase negative pitch as the throttle/collective stick is helicopter pilot, do not attempt to fl... -
Page 21: Blade Tracking
(45 feet) when checking the main rotor blade tracking. same plane. 3. If one blade tip appears to be higher than the other, land the helicopter, To check the blade tracking: disconnect the fl ight battery and adjust the blade linkages. -
Page 22: Troubleshooting Guide
Blade 600 X Troubleshooting Guide Problem Possible Cause Solution The helicopter was moved during initialization Lay the helicopter on its side during initialization if windy The transmitter is powered off Power on the transmitter AR7200BX will not initialize Center elevator, aileron and rudder controls. Make sure the throttle... -
Page 23: Limited Warranty
Limited Warranty What this Warranty Covers WARRANTY SERVICES Horizon Hobby, Inc. (“Horizon”) warrants to the original purchaser that the product Questions, Assistance, and Services purchased (the “Product”) will be free from defects in materials and workmanship at Your local hobby store and/or place of purchase cannot provide warranty support the date of purchase. -
Page 24: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Purchase Horizon Hobby Address Phone Number/Email Address 4105 Fieldstone Rd 877-504-0233 Horizon Service Center Champaign, Illinois Online Repair Request: (Electronics and engines) 61822 USA visit www.horizonhobby.com/service United States of America 4105 Fieldstone Rd Horizon Product Support (All other products) Champaign, Illinois 877-504-0233... -
Page 25: Compliance Information For The European Union
Compliance Information for the European Union Declaration of Conformity Declaration of Conformity (in accordance with ISO/IEC 17050-1) (in accordance with ISO/IEC 17050-1) No. HH2013032602 No. HH2013032603 Product(s): BLH 600 X Pro Series Combo Product(s): BLH 600 X Pro Series Kit Item Number(s): BLH5625C Item Number(s):... -
Page 26: Exploded Views
Exploded View (Head Assembly)/(Rotorkopf)/(Assemblage de la tête)/(Gruppo della testa) - Page 27 Exploded View (Frame Assembly)/(Chassis)/(Assemblage du châssis)/(Gruppo telaio)
- Page 28 Exploded View (Tail Assembly)/(Heck)/(Assemblage de l’anticouple)/(Gruppo coda) Exploded View (Tailboom Assembly)/(Heckausleger)/(Assemblage de la poutre)/(Gruppo tubo coda)
- Page 29 FBL Main Rotor Grip Set: 550 X Rotorblat thalter Set de rotor principal fl ybarless Fbl: 550X Main Rotor Blade Bolt Set (2): 550 X - Vis de fi xations de pales Set bulloni pale rotore principale BLH5502 Blade 550 X: Blatthalterbolzen...
- Page 30 Blade 600 X: Motorhalter 600 X - Support moteur Supporto motore: 600 X BLH5603 Stock Pinion 18T: 600 X Blade 600 X: Ritzel 18 Zähne 600 X - Pignon 18T Pignone: 600 X Blade 550 X: Halter f. Flybarless BLH5534 FBL Unit Mount: 550 X 550 X - Support d’unité...
-
Page 31: Optional Parts / Optionale Bauteile / Pièces Optionnelles / Pezzi Opzionali
7 Canali DSMX SPM9645 DSMX Remote Receiver DSMX Satellitenempfänger Récepteur satellite DSMX Ricevente Remota DMSX H6040 Digital Heli Servo - High Blade 550 X: H6040 Digital Heli Servo digital héli haute vitesse H6040 Servo digitale alta SPMSH6040 Speed Servo-High Speed H6040 velocità... - Page 32 ©2013 Horizon Hobby, Inc. Blade, E-fl ite, Dynamite, Revolution, EC2, EC3, EC5, Celectra, DSM, DSM2, DSMX, AirWare, ModelMatch and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
