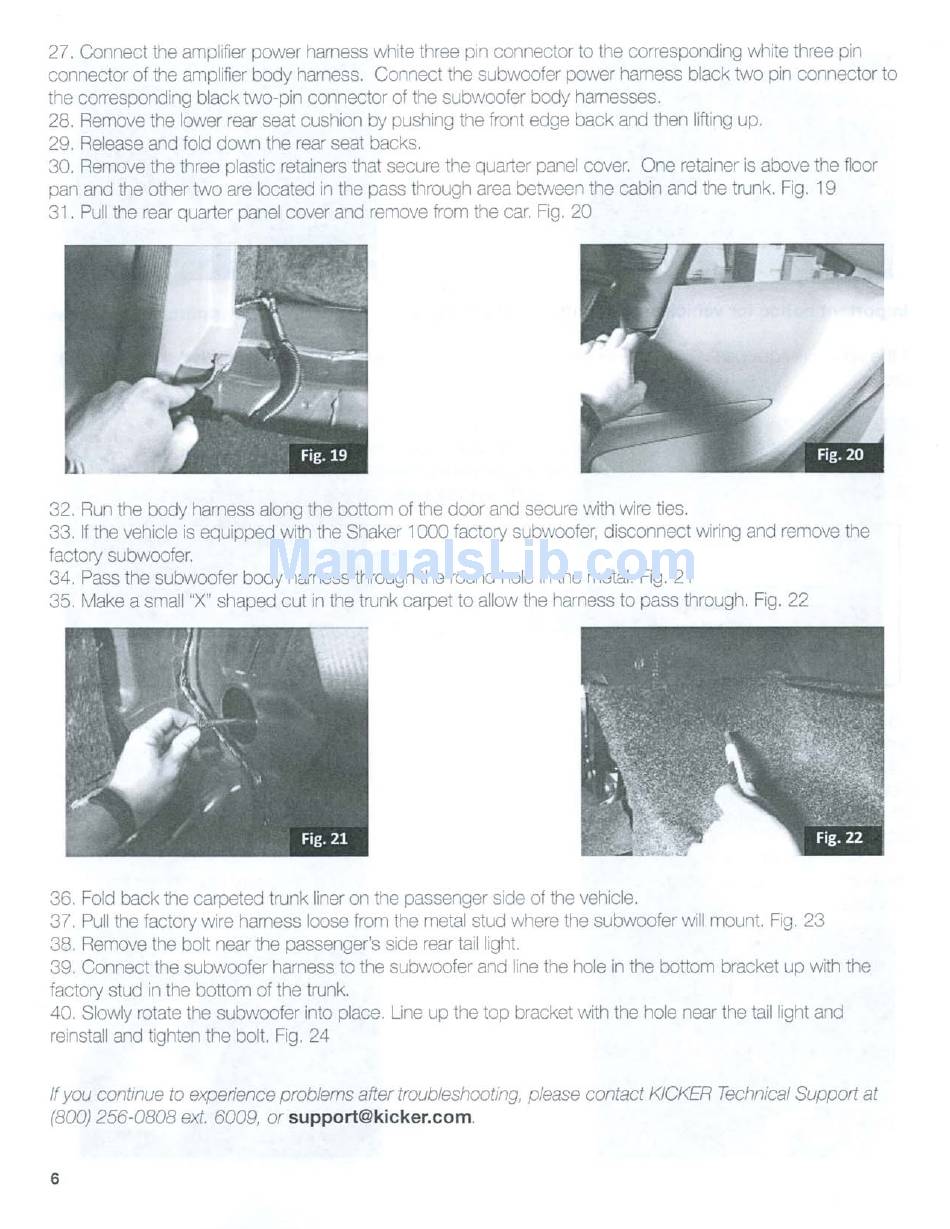

27. Connect the amplifier power harness whtte three p1n connector to the correspondtng white three pin
connector of the amplifier body harness. Connect the subwoofer power harness black two pin connector to
the corresponding black two-pin connector of the subwoofer body harnesses.
28. Remove the lower rear seat cushion by pushing the front edge back and then lifting up.
29. Release and fold down the rear seat backs.
30. Remove the three plastic retainers that secure the quarter panel cover. One retainer is above the fioor
pan and the other two are located in the pass through area between the cabin and the trunk. Fig.
1
9
31 .
Pull the rear quarter panel cover and remove from the car. Fig.
20
32. Run the body harness along the bottom of the door and secure with wire ties.
33. If the vehicle is equipped with the Shaker
1000
factory subwoofer, disconnect wiring and remove the
factory subwoofer.
34. Pass the subwoofer body harness through the round hole in tr1e metal. Fig.
21
35. Make a smaii"X" shaped cut in the trunk carpet to allow the harness to pass through. Fig. 22
36. Fold back the carpeted trunk liner on the passenger stde of the vehicle.
37. Pull the factory wire harness loose from the metal stud where the subwoofer will mount. Fig. 23
38. Remove the bolt near the passenger's side rear taillight.
39. Connect the subwoofer harness to the subwoofer and line the hole in the bottom bracket up with the
factory stud in the bottom of the trunk.
40. Slowly rotate the subwoofer into place. Line up the top bracke: with the hole near the taillight and
reinstall and tighten the bolt. Fig. 24
