PSIEXT14
Designed for
2014 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 1500 series with base radio
2015 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 2500/3500 with base radio
(
Not compatible with Bose® Audio)
(Not compatible with seven-inch color touchsceen Mylink® IOB radio on 2016 and newer)

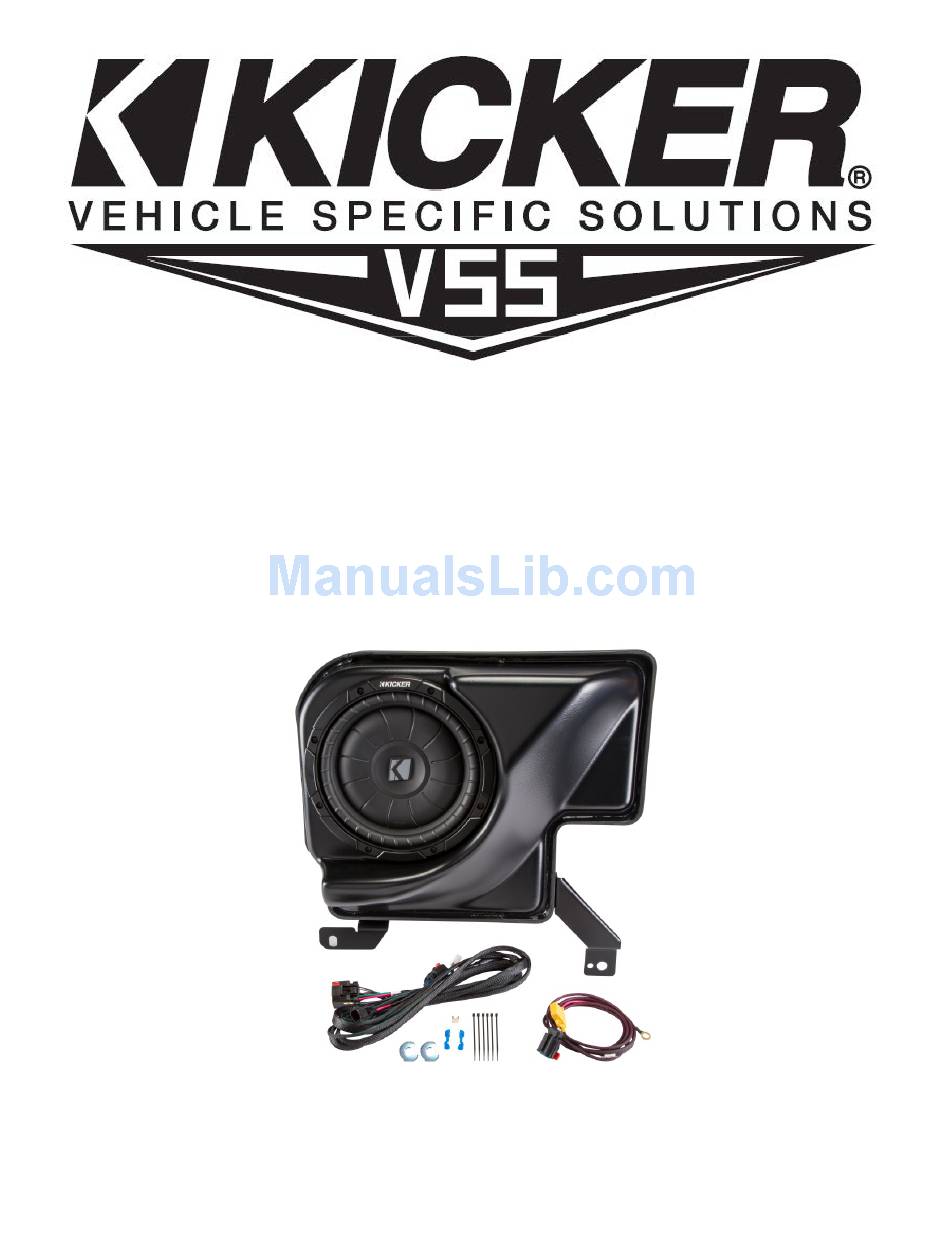

Subwoofer Assembly
Subwoofer
Subwoofer Body
Power Harness
Harness
25A Fuse
Wire Ties x 6
Washers x 2
1
Advertisement
Related Manuals for Kicker PSIEXT14
Summary of Contents for Kicker PSIEXT14
- Page 1 PSIEXT14 Designed for 2014 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 1500 series with base radio 2015 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 2500/3500 with base radio Not compatible with Bose® Audio) (Not compatible with seven-inch color touchsceen Mylink® IOB radio on 2016 and newer)
- Page 2 Amplifier Assembly Amplifier Power Harness Amplifier Body Harness 25A Fuse Wire Ties x 6...
- Page 3 Installation 1. Disconnect negative battery cable from battery. (For diesel engines with dual batteries disconnect both negative cables) 2. Pry loose the radio bezel. Fig. 1 3. Remove the four screws securing the radio and HVAC controls. HVAC control wiring does not need to be disconnected.
- Page 4 Wire Routing 7. Snap loose the driver’s side front and rear threshold panel along the bottom of the door openings. 8. Remove the red battery terminal cover and then the power distribution cover next to the battery on the passenger’s side. 9.
- Page 5 Subwoofer Mounting 18. Remove the two nuts indicated in Fig. 8. 19. Install the enclosure over the studs. NOTE: For trucks with split rear bench seat, install the two supplied washers over the stud closest to the passenger’s side. 20. Connect the subwoofer wiring to the subwoofer harness and set the enclosure into place over the seat studs.
- Page 6 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
