Amplifier
©2018 Stillwater Designs
PRAMCQ13-20180606
PRAMCQ13
Designed for 2013 – 2017 Dodge® Ram vehicles with base audio
Not Compatible with 2018 and newer Dodge® Ram vehicles
Subwoofer
Subwoofer
Harness
Amplifier Power Harness
Wire Ties x 6
Alternate Amplifier
Subwoofer
Amplifier
Subwoofer Power Harness
Bolt (only for solid rear bench seat)
Screw
Fuse x 2
Bracket
Amplifier Harness
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kicker PRAMCQ13
Summary of Contents for Kicker PRAMCQ13

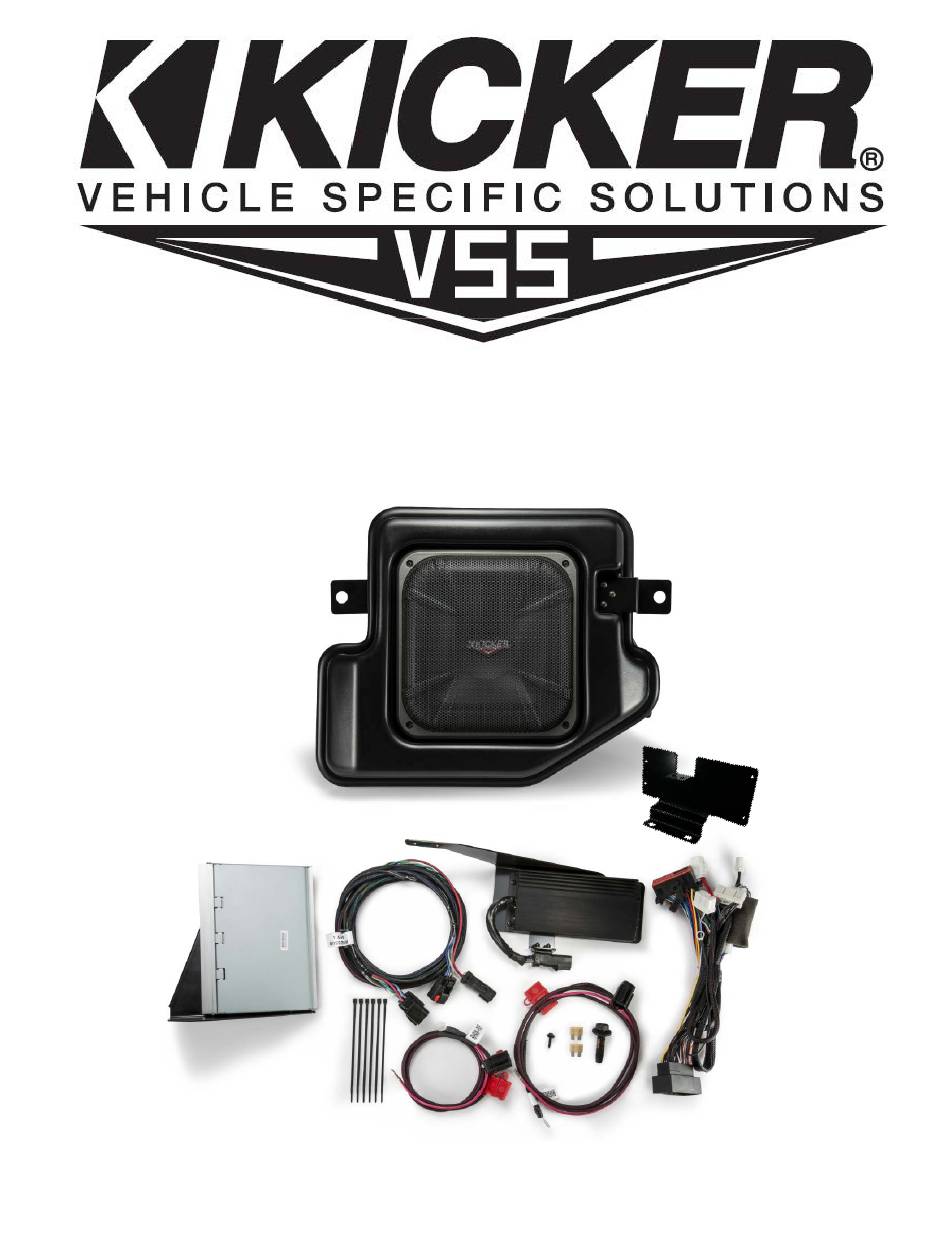

- Page 1 PRAMCQ13 Designed for 2013 – 2017 Dodge® Ram vehicles with base audio Not Compatible with 2018 and newer Dodge® Ram vehicles Subwoofer Alternate Amplifier Bracket Subwoofer Amplifier Subwoofer Amplifier Harness Amplifier Harness Amplifier Power Harness Subwoofer Power Harness Wire Ties x 6...
- Page 2 Power Harness Routing 1. Disconnect negative battery cable 2. Make sure the supplied fuses are not installed in the fuse holders of the subwoofer and amplifier power harness and connect the harnesses to the stud pictured in Fig. 1. Torque stud nut to 14Nm (124in-lbs) 3.
- Page 3 Radio Removal – With Floor Console 2013-2015 Note: If vehicle is not equipped with a floor mounted center console, proceed to step 11 7. Remove the rubber liner from the front of the console and remove the two screws beneath it. Fig.
- Page 4 Radio Removal – All Models 11. Pull the rubber liner out of the storage tray on the dash and remove the two screws beneath it. Fig. 9 12. Remove the screw in the back of the pocket located on the right side of the HVAC controls. Fig.
- Page 5 Amplifier Mounting 18. Install the amplifier under the dash above the brake pedal by sliding the two bolts in the amplifier bracket into the slotted holes in the dash support brace – leave these two bolts loose for now. Fig. 11 and Fig. 12 19.
- Page 6 Subwoofer Amplifier Mounting without Air Bag Control Module Note: The Air Bag Control Module is located under the driver’s seat on certain model trucks. The amplifier/bracket assembly as shipped will not install if the Air Bag Control Module is present. If the truck is equipped with the Air Bag Control Module, skip to steps 26-29 25.
- Page 7 Cargo Tray Removal 32. If the vehicle is equipped with a fold-out cargo tray under the rear seat, the driver’s side portion will need to be removed to allow the subwoofer to install. To remove the cargo tray, remove the two smaller nuts in the rear. Fig. 20 33.
- Page 8 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 9 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256- 0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510...
