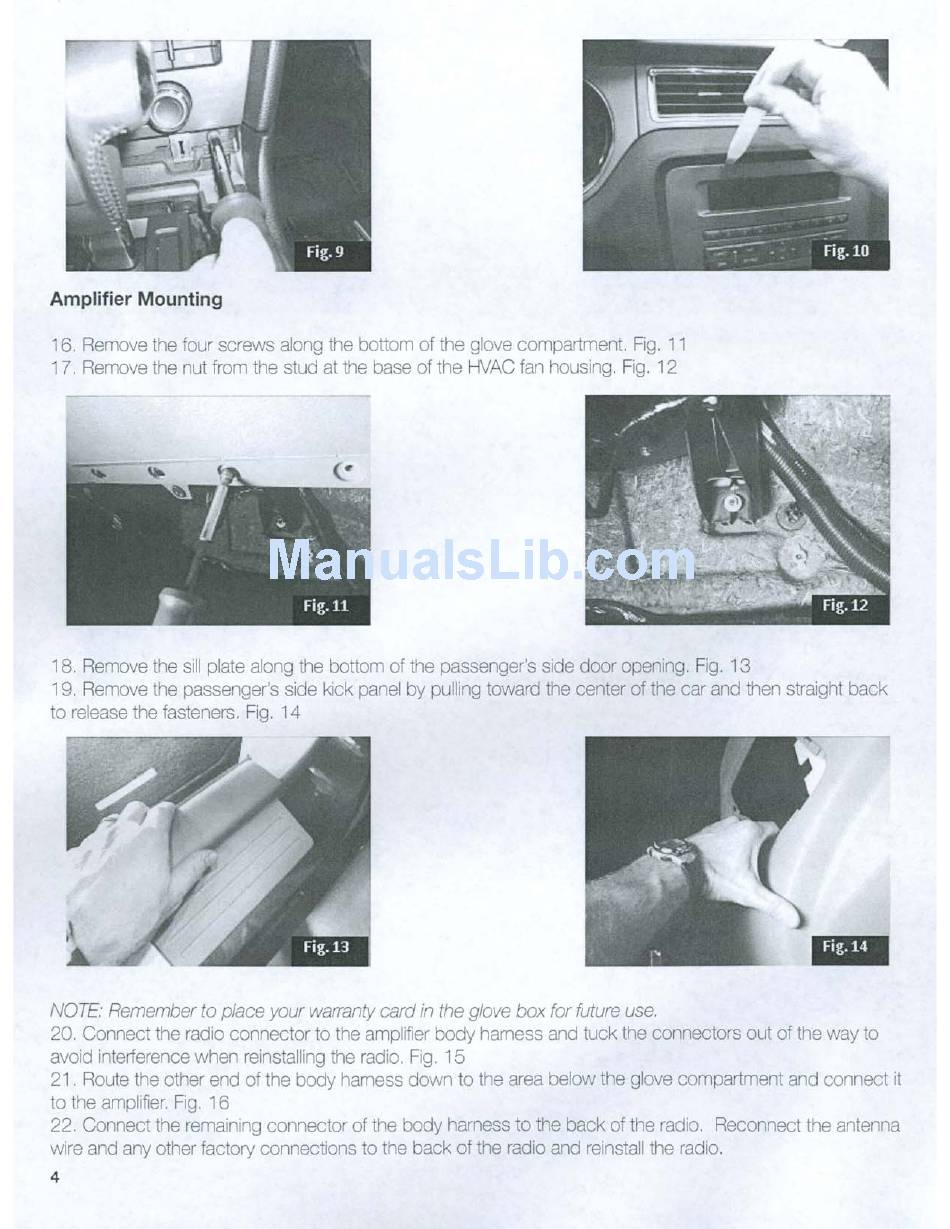

Amplifier Mounting
16. Remove the four screws along the bottom of the glove compartment. Rg. 11
17. Remove the nut from the stud at the base of the HVAC fan housing. Fig. 12
18. Remove the sill plate along the bottom of the passenger's side door opening. Fig. 13
19. Remove the passenger's side kick panel by pulling toward the center of the car and then straight back
to release the fasteners. Fig. 14
NOTE: Remember to place your warranty card ;n the glove box for future use.
20. Connect the radio connector to the amplifier body harness and tuck the connectors out of the way to
avoid interference when reinstalling the radio. Fig. 15
21 . Route the other end of the body harness down to the area below the glove compartment and connect it
to the amplifier. Rg.
1
6
22. Connect the remaining connector of the body harness to the back of the radio. Reconnect the antenna
wire and any other factory connections to tre back of the radio and reinstall the radio.
4
