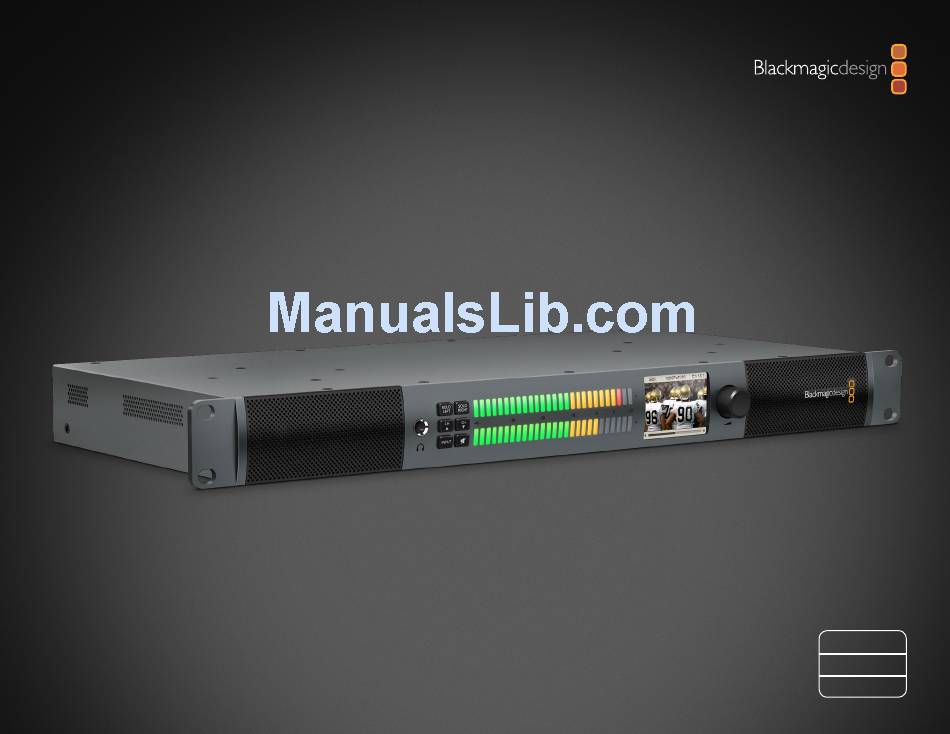

- Page 1 Installation and Operation Manual Blackmagic Audio Monitor Mac OS X ™ Windows ™ May 2013...
- Page 2 Welcome Welcome to Blackmagic Audio Monitor! Thank you for purchasing a Blackmagic Audio Monitor for your production needs! We hope you share our dream for the television industry to become a truly creative industry by allowing anyone to have access to the highest quality video equipment.
-
Page 3: Table Of Contents
Contents Blackmagic Audio Monitor Getting Started Help Introducing Blackmagic Audio Monitor Warnings Plugging in Audio Warranty Information Selecting your Audio Source Connecting Video Outputs Using Blackmagic Audio Monitor Using the Control Panel Audio Level Meters Solo Left, Solo Right Chanel Up, Channel Down... -
Page 4: Getting Started
Getting Started Introducing Blackmagic Audio Monitor Blackmagic Audio Monitor is a single rack real time audio monitoring solution that can be used with a variety of video and audio sources in live, post production and broadcast environments. The audio monitor connects to SD/HD/3G/6G-SDI, digital AES/EBU and analog audio equipment to ensure outputs have the correct audio levels. -
Page 5: Plugging In Audio
Selecting your Audio Source SOLO SOLO After plugging in your audio equipment to Blackmagic Audio Monitor, all you need to do is select your LEFT RIGHT connection by pressing the INPUT button on the control panel. When your input is selected and audio is present, you’ll notice the VU meter at work. -
Page 6: Using Blackmagic Audio Monitor
Unbalanced RCA analog inputs - HiFi, selected audio channels. Audio Level Meters Blackmagic Audio Monitor’s VU meter features two banks of green, orange and red LEDs that show the A music icon is displayed on the LCD unless an SDI signal is strength of your audio levels. -
Page 7: Chanel Up, Channel Down
This knob adjusts the volume for the speakers or headphones independently. Volume level is displayed on the built in LCD. When headphones are connected, Blackmagic Audio Monitor’s speakers will mute and audio is outputted via headphones. Volume can easily be adjusted up or down by turning the volume knob clockwise or counterclockwise. -
Page 8: Help
Help Getting Help The fastest way to obtain help is to go to the Blackmagic Design online support pages and check the latest support material available for your Blackmagic Audio Monitor. Blackmagic Design Online Support Pages The latest manual, internal software and support notes can be found at the Blackmagic Support Center at www.blackmagicdesign.com/support. - Page 9 Blackmagic Audio Monitor enclosure which may be of sufficient magnitude to constitute a risk of electric shock to the user. Blackmagic Design advises you not to open the Blackmagic Audio Monitor unit, but rather contact your nearest Blackmagic Design service center should assistance be required.
- Page 10 Blackmagic Design parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product.
