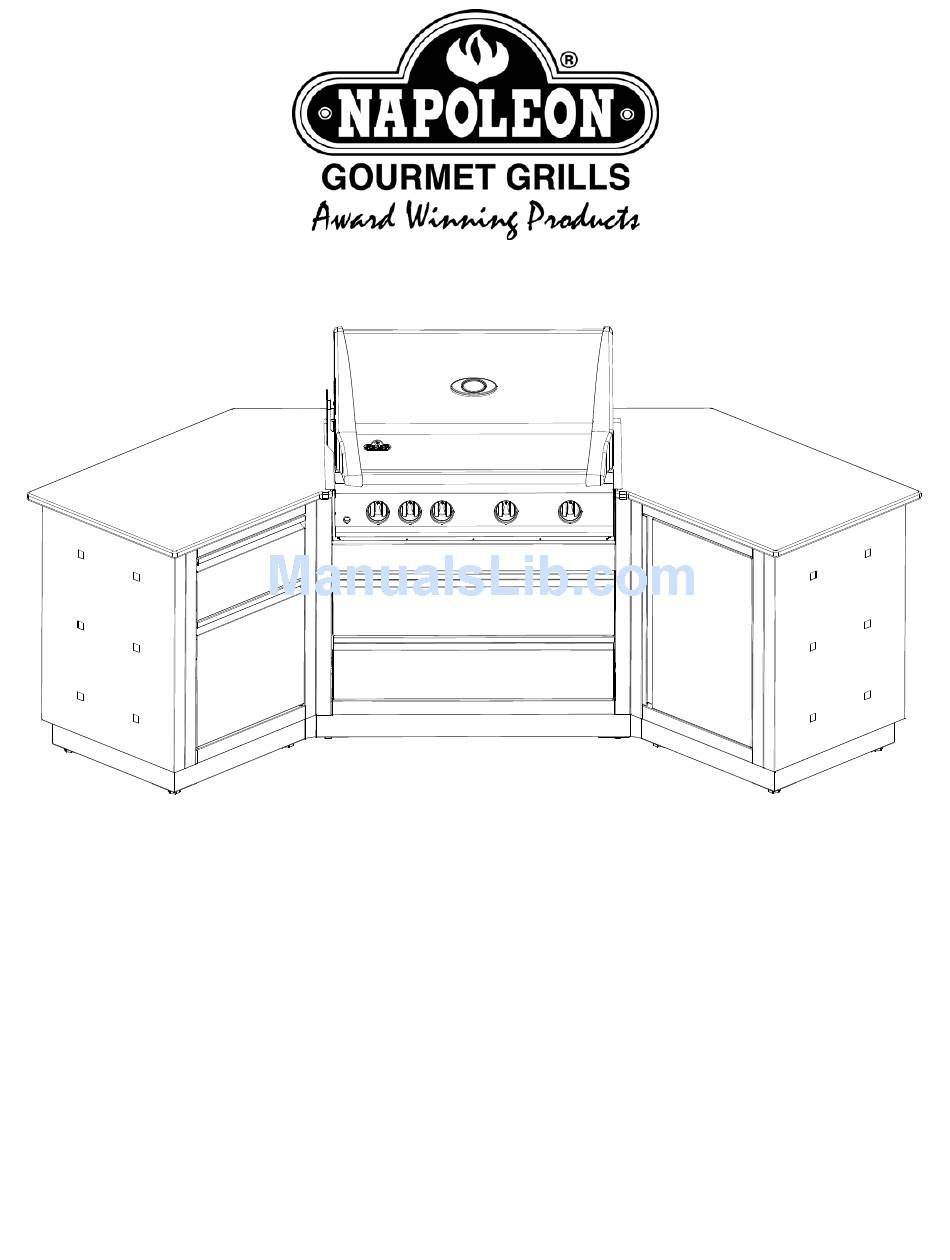

MODULAR CABINET ASSEMBLY INSTRUCTIONS
INSTRUCTIONS D'ASSEMBLAGE DES CABINETS
MODULAIRES
Please use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the main
manual for operating, cleaning, and maintenance instructions. This grill is designed for NON-COMBUSTIBLE enclo-
sures only, and must be installed and serviced by a qualified installer to local codes.
Afin d'assembler correctement votre gril encastré, veuillez vous référer à ce manuel ainsi qu'au manuel principal. Consultez
ce dernier pour les instructions d'opération, de nettoyage et d'entretien. Ce gril convient uniquement à des cabinets
INCOMBUSTIBLES et il doit être installé et entretenu par un installateur qualifié en respectant les codes locaux.
Napoleon Appliance Corp.,
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: (705)726-4278
Fax: (705)725-2564 email: wecare@napoleonproducts.com web site: www.napoleongrills.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
GARDER CE LIVRE POUR RÉFÉRENCES FUTURES.
N415-0230 / JUN 21/10
Advertisement
Related Manuals for Napoleon Modular cabinet
Summary of Contents for Napoleon Modular cabinet
- Page 1 MODULAR CABINET ASSEMBLY INSTRUCTIONS INSTRUCTIONS D’ASSEMBLAGE DES CABINETS MODULAIRES Please use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the main manual for operating, cleaning, and maintenance instructions. This grill is designed for NON-COMBUSTIBLE enclo- sures only, and must be installed and serviced by a qualified installer to local codes.
-
Page 2: Conditions And Limitations
NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. NAPOLEON will not be responsible for: over firing, blow outs caused by environmental conditions such as strong winds, or inadequate ventilation, Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the responsibility of NAPOLEON. - Page 3 Each cabinet has 4 leveling feet for adjustment on even surfaces. The 2 drawer cabinets are made to fit the Napoleon Mirage series of grills only. The Mirage series of grills come in 3 different sizes, each with a self contained drippan to prevent grease drippings from entering the drawers below.
-
Page 4: Tools Required
TOOLS REQUIRED Check for missing or damaged parts before you begin and consult your local retailer if neccessary. 3/8 WRENCH ADJUSTABLE PHILIPS HAMMER OR NUTDRIVER WRENCH SCREWDRIVER GAS AND ELECTRICAL PIPING The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the built-in instructions. - Page 5 SIDE PANEL ASSEMBLY IM-UDC ASSEMBLAGE DES PANNEAUX LATÉRAUX N570-0026 (#14 x 1/2") ALIGN REAR EDGES ALIGNEZ LES BORDS ARRIÈRE REAR PANEL ASSEMBLY IM-UDC ASSEMBLAGE DU PANNEAU ARRIÈRE N570-0026 (#14 x 1/2") www.napoleongrills.com...
- Page 6 TOP / BOTTOM RAIL ASSEMBLY IM-UDC ASSEMBLAGE DES RAILS SUPÉRIEUR ET INFÉRIEUR N570-0026 (#14 x 1/2") N570-0013 (#8 x 1/2") CABINET DOOR ASSEMBLY IM-UDC ASSEMBLAGE DE LA PORTE DU CABINET DOOR CAN BE MOUNTED AS LEFT OR RIGHT OPENING LA PORTE PEUT ÊTRE INSTALLÉE POUR S’OUVRIR N105-0011 À...
- Page 7 SIDE PANEL ASSEMBLY IM-UTC ASSEMBLAGE DES PANNEAUX LATÉRAUX N570-0026 (#14 x 1/2") REAR PANEL ASSEMBLY IM-UTC ASSEMBLAGE DU PANNEAU ARRIÈRE N570-0026 (#14 x 1/2") www.napoleongrills.com...
- Page 8 TOP / BOTTOM RAIL ASSEMBLY IM-UTC ASSEMBLAGE DES RAILS SUPÉRIEUR ET INFÉRIEUR N570-0026 (#14 x 1/2") N570-0013 (#8 x 1/2") PROPANE TANK SLIDER ASSEMBLY IM-UTC ASSEMBLAGE DE LA GLISSIÈRE POUR RÉSERVOIR DE PROPANE N570-0026 (#14 x 1/2") www.napoleongrills.com...
- Page 9 PROPANE TANK DRAWER INSTALLATION IM-UTC INSTALLATION DE LA TABLETTE POUR RÉSERVOIR DE PROPANE CABINET DOOR ASSEMBLY IM-UTC ASSEMBLAGE DE LA PORTE DU CABINET N105-0011 www.napoleongrills.com...
- Page 10 PROPANE SUPPLY HOSE ROUTING IM-UTC ACHEMINEMENT DU BOYAU D’ALIMENTATION EN PROPANE The gas connection of the Mirage series grills is at the left of the control panel. Placing the tank enclosure cabinet to the left of the unit cabinet will make for easier gas piping. Knockouts have been punched in the sides and back panels to provide easy routing of gas or electrical piping.
- Page 11 CABINET TO CABINET ASSEMBLY INSTALLATION DE CABINETS CÔTE À CÔTE N570-0026 (#14 x 1/2") CABINET 45 DEGREE CONNECTION IM-45T RACCORDEMENT DE CABINETS À 45 DEGRÉS N570-0026 (#14 x 1/2") www.napoleongrills.com...
- Page 12 CABINET 90 DEGREE CONNECTION IM-45T x 2 RACCORDEMENT DE CABINETS À 90 DEGRÉS 12 x N570-0026 (#14 x 1/2") CABINET END PANEL KIT IM-CEP ENSEMBLE DE PANNEAU D’EXTRÉMITÉ N570-0026 (#14 x 1/2") www.napoleongrills.com...
- Page 13 CABINET END PANEL KIT IM-CEP ENSEMBLE DE PANNEAU D’EXTRÉMITÉ N570-0026 (#14 x 1/2") SHOWN WITH REAR PANEL REMOVED ILLUSTRÉ SANS LE PANNEAU ARRIÈRE COUNTERTOP TO BE FASTENED AS PER MANUFACTURER’S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON THE TOP FLANGE OF THE SIDE PANELS TO ALLOW FOR FASTENERS. FIXEZ LE COMPTOIR EN RESPECTANT LES DIRECTIVES DU FABRICANT.
- Page 14 REFER TO BUILT-IN MANUAL THAT ACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS. GAS PIPING MUST BE DONE BY A LICENSED GAS INSTALLER. POUR DES DIRECTIVES COMPLÈTES, CONSULTEZ LE MANUEL QUI ACCOMPAGNE LE GRIL ENCASTRÉ. LA TUYAUTERIE POUR LE GAZ DOIT ÊTRE INSTALLÉE PAR UN INSTALLATEUR POUR LE GAZ AUTORISÉ. CABINET LEVELING PROCEDURE MISE DE NIVEAU DU CABINET www.napoleongrills.com...
- Page 15 IM-UDC Part # Description n475-0223p side panel / panneau avant n475-0224p back panel / panneau arrière n570-0026 screw , #14 x 1/2" / ecrou #14 x 1/2" n010-0575p assembly, bottom shelf / ensemble de tablette inférieur n570-0031 leveling foot / mise à niveau du pied n525-0018p rail, top/bottom / support superior/inférieur n105-0011 bushing, door / bagues de porte...
- Page 16 IM-3DC Part # Description n010-0678 side panel left / panneau avant gauche n010-0678 side panel right / panneau avant droite n475-0224p back panel / panneau arrière n525-0018p rail, top/bottom / support superior/inférieur n570-0031 leveling foot / mise à niveau du pied n010-0575p assembly, bottom shelf / ensemble de tablette inférieur n010-0677 draw er assembly / assemblage du tiroir...
- Page 17 IM-UGC245/300 / IM-UGC485 / IM-UGC600 / IM-UGC605 / IM-UGC705 245/300 Description n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 side panel left / panneau avant gauche n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 n010-0678 side panel right / panneau avant droite n475-0224p n475-0229p n475-0229p n475-0256p n475-0231p n475-0233p back panel / panneau arrière n525-0031p n525-0019p n525-0025p n525-0027p n525-0020p n525-0021p top rail / support superior n570-0026 n570-0026...
-
Page 18: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS Before contacting the customer care department, check the NAC web site for more extensive cleaning, maintenance, troubleshooting and part replacement instructions at www.napoleongrills.com. Contact the factory directly for replace- ment parts and warranty claims. The customer care department is available between 9 AM and 5 PM (Eastern standard time) at 1-866-820-8686 or fax at 1-705-727-4282. - Page 19 FAX TO: 705 727 4282 ACCESSORIES & PARTS ORDER FORM PLEASE PRINT CLEARLY CONTACT NAME:______________________________________________________________________ SHIP TO :_____________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ TEL :_________________________________ FAX :______________________________ EMAIL: __________________________________________________________________ VISA OR MASTERCARD # :_______________________________________ EXPIRY DATE: _____________ SIGNATURE:_____________________________________________________________________________ QUANTITY PART NUMBER DESCRIPTION TAXES MAY APPLY SHIPPING EXTRA IF CONFIRMATION IS REQUIRED PLEASE INCLUDE A FAX NUMBER OR EMAIL ADDRESS...
