Location of Thru-Hull Fittings

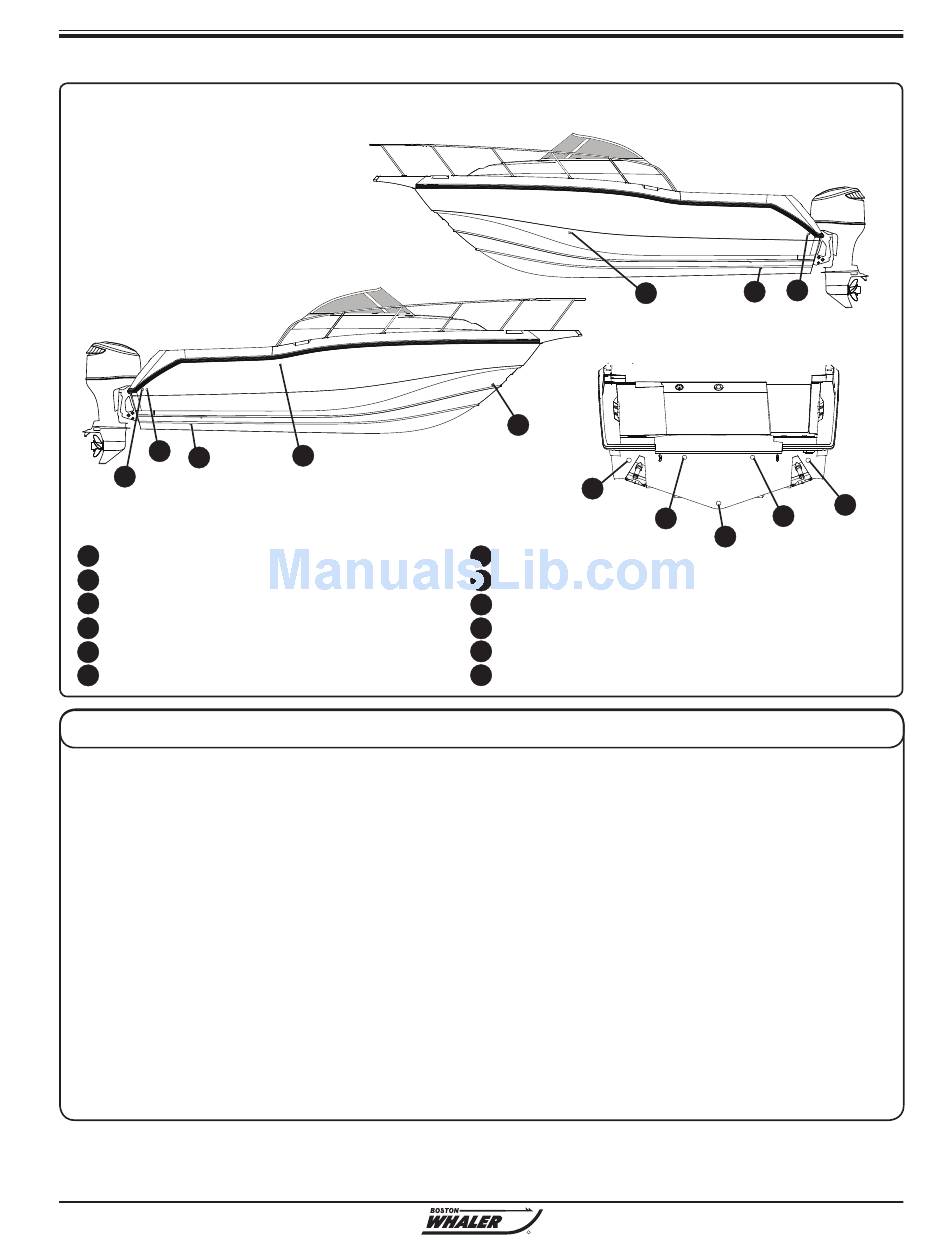

Thru-Hull Fittings
Fig. 2.5.1
5
6
4
1 CABIN SINK DRAIN
2 MACERATOR PUMP (OPTION)
3 PORT FISHBOX PUMPOUT
4 STARBOARD FISHBOX DRAIN
5 1100 GPH BILGE PUMP
6
RAW WATER INTAKE
• The deck drain provides self-bailing capabilities while the boat is static in the water and no
passengers on board. This feature prevents the accumulation of water in the cockpit.
• Through hull fi ttings should be checked for proper seal annually. When the boat is in the water
the underwater fi ttings can be checked for dripping. It is recommended that the underwater
fi ttings be removed, cleaned and resealed every other year.
• If the through hull fi ttings need to be replaced, it is recommended that an authorized Boston
Whaler ® dealer perform this type of repair. Through hull fi ttings that are improperly installed can
cause premature hull failure and may void the Boston Whaler
• Depending on the type of boat you have, you may have underwater fi ttings that need drain plugs.
Garboard drain plugs and fi shbox drain plugs need to be in place before the boat goes into the
water. Any fi tting that will be underwater needs to be plugged or the seacock needs to be
closed
• A standard 1" "Snap-Tite" plug can be used to replace the drain plug(s) in your boat. It is
recommended that you carry spare plugs to be used in the event that the drain plug(s) become
lost or damaged.
255 Conquest
Section 2 • General Information
255 Conquest
7
10
11
12
NOTICE
255 Conquest
1
8
9
7 WASTE SYSTEM VENT
8 ANCHOR LOCKER DRAIN
9 DECK & LIVEWELL DRAIN
MOTOREWELL DRAIN
GARBOARD DRAIN
DECK DRAIN
® limited warranty.
R
3
2
9
10
11
12
2-5
