- Page 1 C-100 USER’S GUIDE...
- Page 2 The freedom to power your PAP device no matter where your world takes you! Your PAP device doesn’t have to keep you from enjoying the great outdoors... perfect for tent campers & use in RVs.
-
Page 3: Table Of Contents
able of ontents INTRODUCTION Product Specifications Package Contents Intended Use Compatibility Warranty IMPORTANT NOTES Run Times ResMed Device Warning Humidifier Usage Power Backup Usage ACCESSORIES Power Inverter 24V Power Converter GETTING STARTED Control Board Identification The Power Meter Turning the Battery Pack On/Off Initial Battery Usage Using the Battery Pack Inside the Carrying Case CHARGING THE BATTERY PACK... - Page 4 able of ontents POWERING YOUR PAP DEVICE Introduction Connector Tips Respironics Devices ResMed Devices S9 Series Devices S8 Series & Older Devices Fisher & Paykel Devices DeVilbiss Devices POWERING OTHER DEVICES BATTERY PACK CARE INSTRUCTIONS Understanding Lithium-Ion Batteries Battery Pack Storage SAFETY WARNINGS DISPOSAL OF LITHIUM-ION BATTERIES...
-
Page 5: Product Specifications
ntroduction PRODUCT SPECIFICATIONS DIMENSIONS Size: 7.5” x 4.25” x 0.75” (L x W x H) Weight: 1.6 lbs ELECTRICAL Cell Type: Rechargeable lithium-ion Battery Capacity: 100 Wh Output Voltage Range: 9 - 12.6 V Output Current Range: 0 - 4.5 A (8A maximum) Power Gauge: Four stage LED display RECHARGE TIME 4-5 hours... -
Page 6: Package Contents

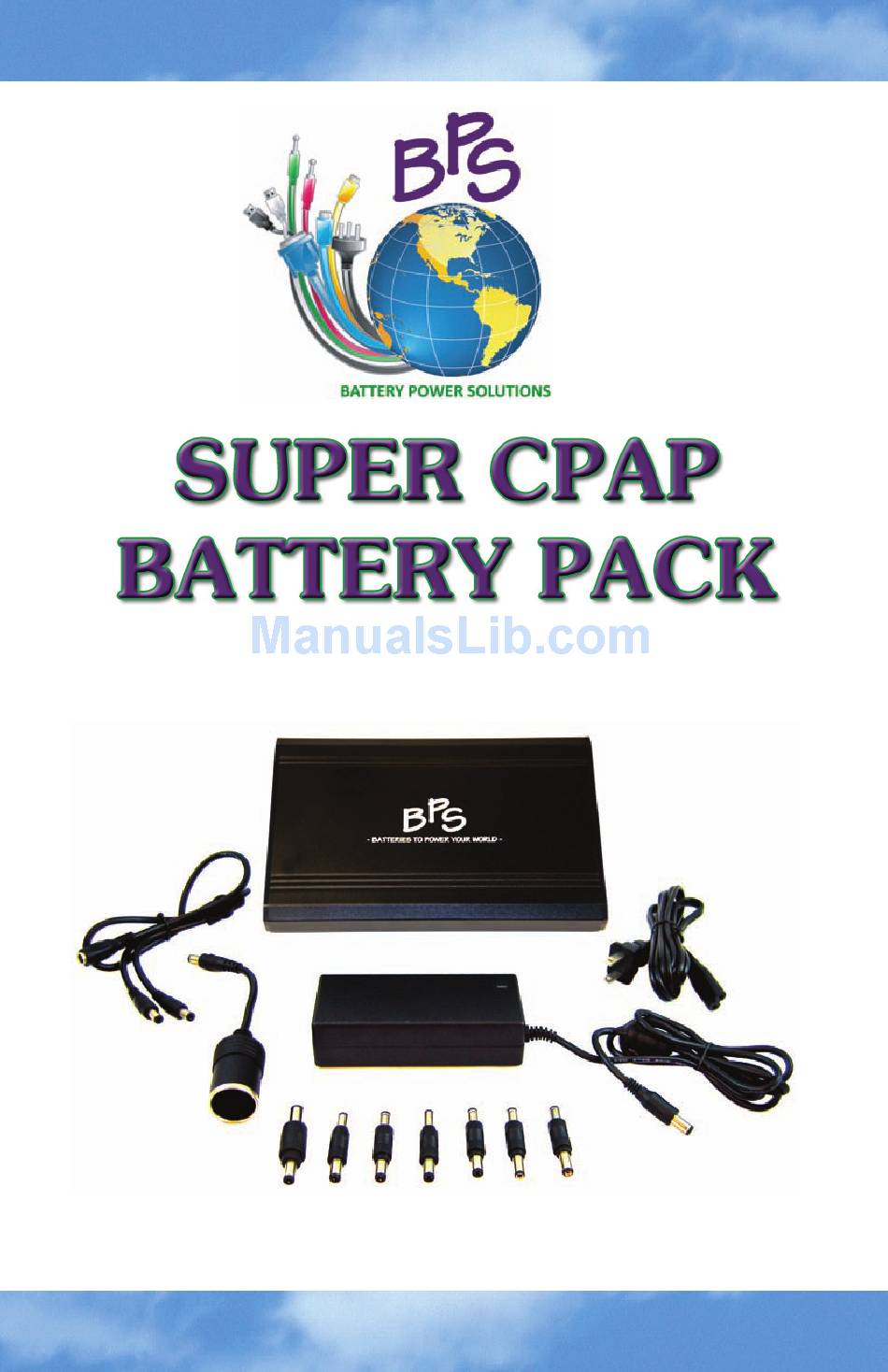

ntroduction PACKAGE CONTENTS Your Battery Pack comes with the items listed below. If you are missing any of these items, please contact the company from whom you purchased your Battery Pack. CARRYING CASE BATTERY PACK(S) CONNECTOR TIPS Battery Pack is sold in a single or dual Seven (7) unique connector tips. -
Page 7: Intended Use
ntroduction INTENDED USE Battery Packs are intended to provide external power to PAP (positive airway pressure) devices; however, when used in conjunction with a power inverter, they may also be used to power other small electronic devices such as smartphones, iPods, laptops and iPads. See page 20 for additional information regarding powering other devices. -
Page 8: Important Notes
mportant otes RUN TIMES Multiple factors will affect Battery Pack actual run times including, but not limited to, device type, whether a power inverter or power converter is used, pressure setting, and altitude. The use of heated humidification or heated tubing will significantly reduce expected run times. Average run times are based on Respironics System One and ResMed S-9 Series PAP devices with no heated humidification or heated tubing. -
Page 9: Humidifier Usage
mportant otes HUMIDIFIER USAGE The use of heated humidification or heated tubing will significantly reduce the expected run time of the Battery Pack due to the amount of power required for the humidifier heating plate. To obtain optimal Battery Pack performance we recommend you forgo the use of heated humidification. -
Page 10: Accessories
ccessories POWER INVERTER Sine wave power inverters are used to change direct current (DC) to alternating current (AC). Power inverters are universal and can be used with any device. Using a modified or pure sine wave power inverter in conjunction with the Battery Pack allows you to: Power Devices Without DC Capability ... -
Page 11: Power Inverter
ccessories POWER INVERTER CONNECTING THE 150 WATT INVERTER TO THE BATTERY PACK Connect the DC Input Cord to the DC Out Jack of the Battery Pack. Connect the Inverter Adaptor Cord to the side of the Inverter. Connect the cigarette lighter plug end of the Inverter Adaptor Cord ... -
Page 12: 24V Power Converter
Battery Power Solutions’ 24V Power Converter was specifically designed for use with ResMed S9 Series PAP devices and the C-100 Battery Pack. This single component connection provides a clean, efficient conversion from 24V to 12V direct current. -
Page 13: Getting Started
etting tarted CONTROL BOARD IDENTIFICATION The Control Board includes the DC In and DC Out Jacks, charge lights and the Power Meter, which indicates the remaining power level. A DC In Jack B Power Meter Button C Full Charged Light D DC Out Jack E Charging Light... -
Page 14: Turning The Battery Pack On/Off
etting tarted TURNING THE BATTER PACK ON/OFF The Battery Pack will turn on or off automatically when a device is plugged into or disconnected from the Battery Pack. If the Battery Pack stops functioning, reconnect the AC Power Supply to the Battery Pack to reset the internal circuitry. -
Page 15: Charging The Battery Pack
harging the attery CHARGING WITH AC POWER (A WALL OUTLET) Connect the AC Power Cord to the AC Power Supply. Connect the Output Cable of the AC Power Supply to the DC In Jack of the Battery Pack. Connect the AC Power Supply to a wall outlet. -
Page 16: Charing In A Vehicle
harging the attery CHARGING IN A VEHICLE The use of a power inverter in conjunction with the Battery Pack AC Power Supply allows you to safely and efficiently charge the Battery Pack via the cigarette lighter (power) socket of a vehicle. Connect the AC Power Supply to the Battery Pack. -
Page 17: Dual Battery Configuration Charging
harging the attery DUAL BATTERY CONFIGURATION CHARGING If you are using the Battery Pack in the dual configuration you may charge both Battery Packs at the same time. Connect the DC Power Pigtail Cord to the DC In Jack of both Batteries. ... -
Page 18: Connector Tips
owering evice CONNECTOR TIPS If your PAP device can be connected directly to the Battery Pack (Respironics and DeVilbiss PAP devices) you will need to insert one of the provided Connector Tips into the end of the DC Power Pigtail Cord in order to connect the PAP device to the Battery Pack. -
Page 19: Respironics Devices
owering evice RESPIRONICS DEVICES Respironics PAP devices may be connected directly to the Battery Pack. Connect the DC Power Pigtail Cord to the DC Out Jack of the Battery Pack. Note: If you are using the Battery Pack in the dual configuration, simply connect the DC Power Pigtail Cord to the DC Out Jack of both Battery Packs. -
Page 20: Resmed Devices
Battery Power Solutions designed a 24V Power Converter specifically for use with ResMed S9 Series PAP devices. See page 8 for more information. CONNECTION USING BPS 24V POWER CONVERTER Connect the male end of the 24V Power Converter to the DC Out Jack ... -
Page 21: S8 Series & Older Devices
owering evice RESMED S8 SERIES & OTHER OLDER RESMED DEVICES ResMed S8 Series or other older ResMed PAP devices require the use of ResMed’s DC Power Converter or a power inverter in conjunction with the Battery Pack. Do not connect the Battery Pack directly to any ResMed device as doing so will damage the PAP device. -
Page 22: Fisher & Paykel Devices
PAP device and the Battery Pack. CONNECTION USING BPS 150W POWER INVERTER Connect the DC Input Cord to the DC Out Jack of the Battery Pack. ... -
Page 23: Devilbiss Devices
owering evice DEVILBISS PAP DEVICES DeVilbiss PAP devices may be connected directly to the Battery Pack. Connect the DC Power Pigtail Cord to the DC Out Jack of the Battery Pack. Note: If you are using the Battery Pack in the dual configuration, simply connect the DC Power Pigtail Cord to both Battery Packs. -
Page 24: Powering Other Devices
owering ther evices The Battery Pack can be used to power other small electronic devices such as smartphones, iPads, portable DVD players, iPods, and laptops. If the electronic device operates from a 12V direct current and has a DC cable with a cigarette lighter plug you can connect the device directly to the Battery Pack via the DC Input Cord. -
Page 25: Battery Pack Care Instructions
attery nstructions UNDERSTANDING LITHIUM-ION BATTERIES Rechargeable lithium-ion batteries have quickly become the emerging standard for portable power in consumer devices due to their light weight, high energy density, lack of memory effect, and charge longevity. They are also more environmentally friendly as they do not contain toxic materials such as Cadmium or Mercury. -
Page 26: Safety Warnings
afety arnings By purchasing, using or possessing any of Battery Power Solutions’ products, you are agreeing to hold harmless Battery Power Solutions, it’s subsidiaries, affiliates, owners, officers and employees from any and all claims or liability for any damage to any property or injury, illness or death of any person when such damage, injury, illness or death shall be caused in whole or in part from use of the product(s). - Page 27 1-877-445-5228 info@batterypowersolutions.net www.batterypowersolutions.net...
- Page 28 CPAP BATTERY PACK USER’S GUIDE January 2014...
