Summary of Contents for BPS C-100 CPAP

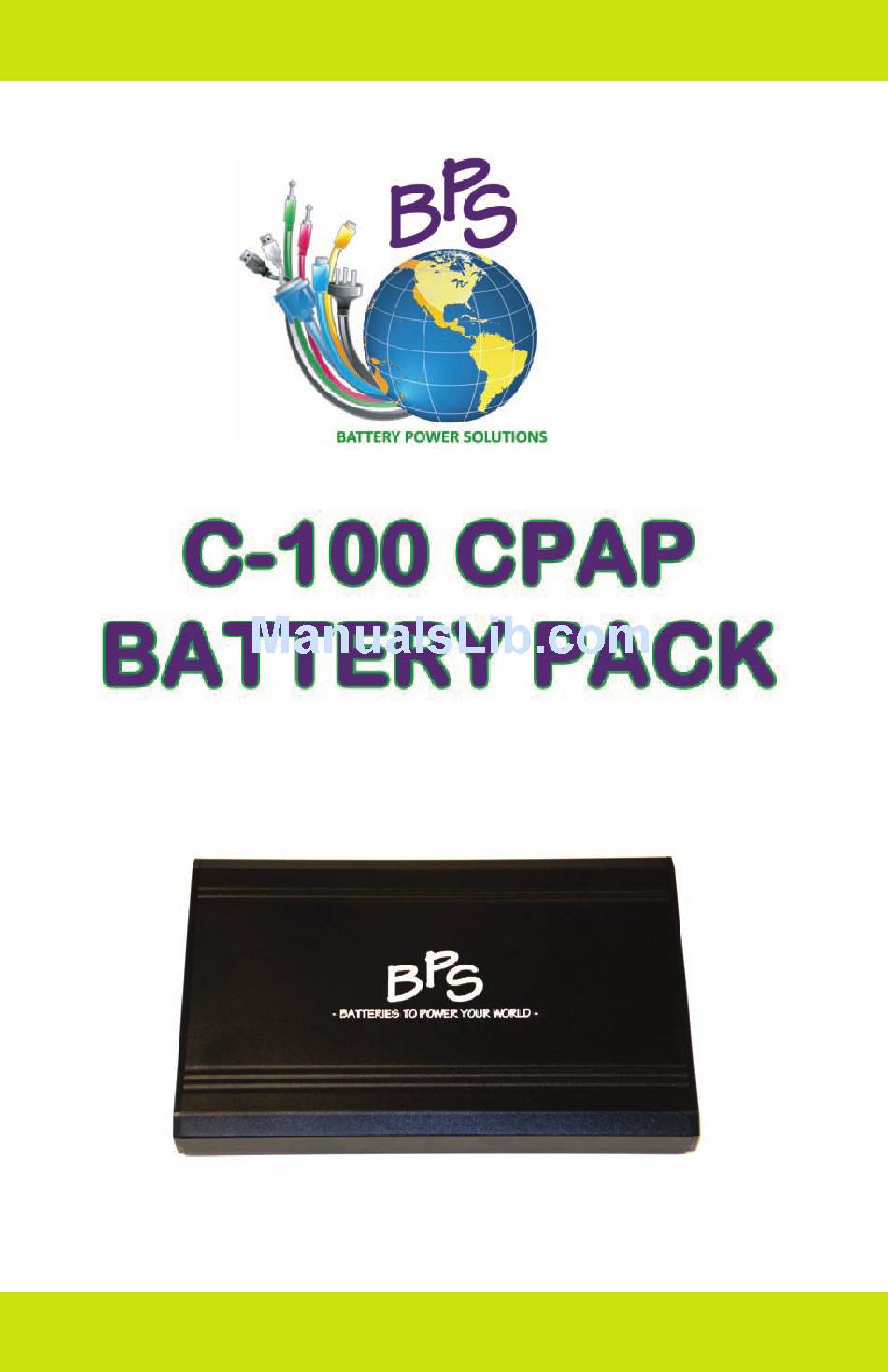

- Page 1 USER’S GUIDE...
-
Page 3: Table Of Contents
able ontents Package Contents Accessories: Sold Separately Product Specifications Intended Use Compatibility ResMed Device Warning Battery Pack Run Times Power Backup Usage Getting Started Turning the Battery Pack On/Off Initial Battery Pack Usage Using the Battery Pack Inside the Carrying Case Control Board Identification The Power Meter Charging the Battery Pack with AC Power... -
Page 4: Package Contents
ackage ontents The C-100 Battery Pack comes with the items listed below. If you are missing any of these items, please contact the company from whom you purchased the Battery Pack. BATTERY PACK(S) CARRYING CASE CONNECTOR TIPS Battery Pack is sold in a single or dual battery configuration package. -
Page 5: Product Specifications
roduct pecifications DIMENSIONS Size: 7.5” x 4.25” x 0.75” (L x W x H) Weight: 1.6 lbs ELECTRICAL Cell Type: Industrial grade rechargeable lithium-ion Capacity: 100 Wh Output Voltage Range: 9 - 12.6 V Output Current Range: 0 - 4.5 A (8A maximum) Power Gauge: Four stage LED display SAFETY FEATURES Protective Circuit Board (PCB) provides internal protection against... -
Page 6: Intended Use
ntended The C-100 Battery Pack is intended to provide external battery power to PAP (positive airway pressure) devices. The Battery Pack may also be used to power other small electronic devices such as smartphones, iPods, laptops, and iPads (use of a sine wave power inverter may be required). -
Page 7: Battery Pack Run Times
attery imes Multiple factors will affect how long the Battery Pack will power a PAP device, including, but not limited to device type (CPAP, BiLevel, AutoPAP, etc.), pressure setting, altitude, humidifier usage, and if a power inverter or power converter is required in conjunction with the Battery Pack. BiLevel and AutoPAP/APAP devices will generally have lower run times as the pressure setting is not constant and changes throughout the night requiring more power to operate the device. -
Page 8: Power Backup Usage
ower ackup sage Standard smart chargers keep the Battery Pack topped off and ready to go as an emergency power backup during power outages. If a power outage is immenint or probable, you may connect the PAP device to the Battery Pack and plug the Battery Pack into a wall outlet. -
Page 9: Control Board Identification
etting tarted CONTROL BOARD IDENTIFICATION The control board includes the DC in and DC out jacks, charge lights and the power meter, which indicates the remaining power level. A DC In Jack B Power Meter Button C Full Charged Light D DC Out Jack E Charging Light... -
Page 10: Charging The Battery Pack With Ac Power
AC P harging the attery ack with ower Connect the AC power cord to the AC power supply. Insert the AC power supply into the DC in jack of the Battery Pack. DUAL BATTERY PACK CHARGING: Insert the AC power supply into the DC power pigtail cord. ... -
Page 11: Charging The Battery Pack In A Vehicle
harging the attery ack in a ehicle When an AC power source is not available the Battery Pack can be safely and efficiently recharged via the cigarette lighter/power socket of a vehicle. To recharge the Battery Pack in this manner you must use either Battery Power Solutions’... - Page 12 harging the attery ack in a ehicle CHARGING USING THE AUTO CHARGE DC CABLE Locate the connector tip labeled “N” in the Battery Pack Kit. See page 13 for connector tip identification instructions. Insert the “N” connector tip into the auto charge DC cable. ...
- Page 13 harging the attery ack in a ehicle CHARGING USING THE 150W SINE WAVE POWER INVERTER Insert the AC power supply into the DC in jack of the Battery Pack. DUAL BATTERY PACK CHARGING: Insert the AC power supply into the DC power pigtail cord. ...
-
Page 14: Powering Your Pap Device Introduction
owering evice: ntroduction The C-100 Battery Pack will work with most makes and models of PAP devices; however, the DC capability, voltage requirements and plug polarity of the device will determine how it connects to the Battery Pack. Some PAP devices can be connected directly to the Battery Pack via the DC power pigtail cord;... -
Page 15: Connector Tips
owering evice: onnector Make sure the connector tip sits securely in the DC input port of the PAP device. If the connector tip is loose try another one as you want to avoid using a loose connector tip if there is a better match. Once you have determined the best fitting connector tip, insert it ... -
Page 16: Respironics Devices
owering evice: espironics evices Respironics PAP devices operate from a 12V direct current and may be connected directly to the Battery Pack using the DC power pigtail cord. Insert the DC power pigtail cord into the DC out jack of the Battery. ... -
Page 17: Resmed S9 Series Devices
S9 D owering evice: evices ResMed S9 Series devices operate from a 24V direct current so the use of a power converter or sine wave power inverter is required to complete the connection between the device and the Battery Pack. DO NOT connect the Battery Pack directly to any ResMed model device. -
Page 18: Resmed S8 Series Devices
S8 D owering evice: evices ResMed S8 Series PAP device input ports run opposite polarity from other manufacturers so the use of ResMed’s S8 Series DC-12 Converter or a sine wave power inverter is required to complete the connection between the device and the Battery Pack. -
Page 19: Fisher & Paykel Devices
See page 21 for inverter instructions. Turn the PAP device on and it should begin functioning. DC OUT JACK PAP AC POWER CORD DC INPUT CORD INVERTER ADAPTOR CORD BPS 150W POWER INVERTER... -
Page 20: Devilbiss Devices
owering evice: ilbiss evices DeVilbiss PAP devices operate from a 12V direct current and may be connected directly to the Battery Pack using the DC power pigtail cord. Insert the DC power pigtail cord into the DC out jack of the Battery. ... -
Page 21: Powering Other Devices
owering ther evices The C-100 Battery Pack can be used to power other small electronic devices such as smartphones, iPads, portable DVD players, and laptops. 12V DEVICES WITH DC CABLE If the electronic device operates from a 12V direct current and has a DC cable with a cigarette lighter plug you can connect the device directly to the Battery Pack using the DC input cord. -
Page 22: 150W Sine Wave Power Inverter
ccessories: ower nverter Sine wave power inverters are used to change direct current (DC) to alternating current (AC). Using a modified or pure sine wave power inverter in conjunction with the Battery Pack allows you to: Power Other Small Electronic Devices ... - Page 23 ccessories: ower nverter CONNECTING THE 150 WATT INVERTER TO THE BATTERY PACK Insert the DC input cord into the DC out jack of the Battery Pack. Connect the inverter adaptor cord to the side of the inverter. Insert the cigarette lighter plug end of the inverter adaptor cord ...
-
Page 24: Power Converter
ccessories: ower onverter (for ResMed S9 devices) DC to DC power converters convert a source of direct current (DC) from one voltage to another (i.e. 12V to 24V). Power converters are generally proprietary to a specific device. Battery Power Solutions’ 24V Power Converter was specifically designed for use with ResMed S9 Series PAP devices and provides a clean, efficient conversion from 12V to 24V direct current. -
Page 25: Battery Pack Care Instructions
attery nstructions Understanding common phenomenon with rechargeable lithium-ion batteries can help you better care for your C-100 Battery Pack and answer many common questions regarding usage. Lithium-ion batteries do not suffer from the memory effects that are associated with other types of battery chemistries. This means that the C-100 Battery Pack does not need to be completely discharged before recharging. -
Page 26: Safety Warnings
afety arnings The following safety warnings must be observed at all times: Do not drop, hit, crush, or otherwise abuse the Battery Pack as this may result in the exposure of the cell contents, which are corrosive. Do not expose the Battery Pack to rain or moisture of any type. ... - Page 27 1-877-445-5228 info@batterypowersolutions.net www.batterypowersolutions.net...
- Page 28 C-100 CPAP BATTERY PACK USER’S GUIDE SEPTEMBER 2014...
