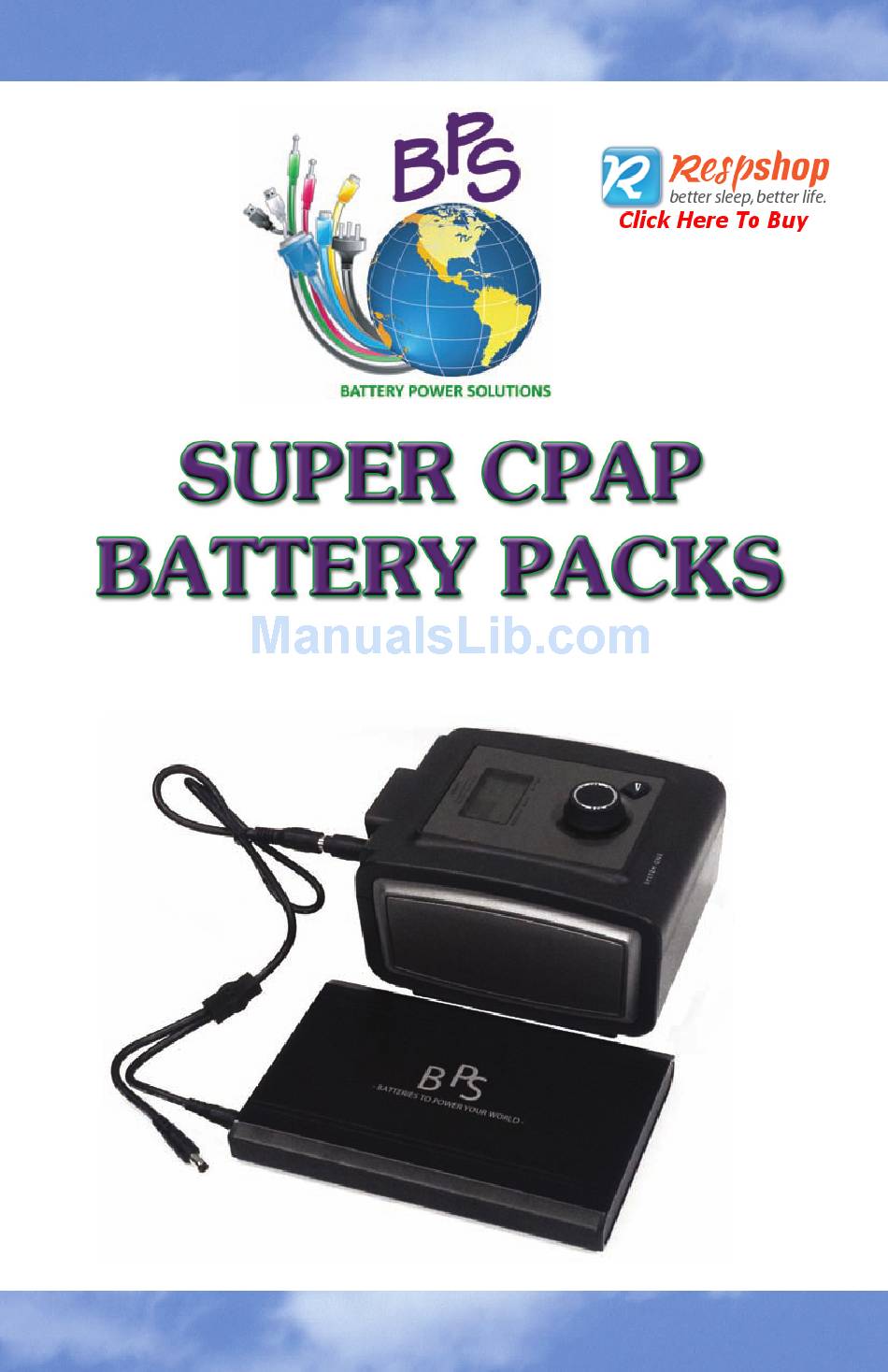

- Page 1 C-100 USER’S GUIDE...
- Page 2 Your CPAP machine doesn’t have to keep you from enjoying the great outdoors... perfect for tent campers & use in RVs! The freedom to power your CPAP machine no matter where your world takes you!
-
Page 3: Table Of Contents
able of ontents Introduction Product Specifications Package Contents Intended Use Compatibility Important Notes Sine Wave Inverter or DC Converter Usage Humidifier Usage Overseas Travel Use as a Power Backup Battery Pack Run Times Getting Started Control Board Identification The Power Meter Turning the Battery Pack On/Off Charging with AC Power Charging in a Vehicle... -
Page 4: Introduction Product Specifications
ntroduction Product Specifications Output Voltage: 12V Output Current (Max): 8A Current Charge: 2500mAh Warranty: 6 months Dimensions: 7.5” x 4.25” x 0.75” Weight: 1.6 lbs. (L x W x H) Power Gauge: Four stage LED Recharge Time: 3-4 hours Recharge Cycles: 300-500 (per battery) **Average Run Time: ... -
Page 5: Intended Use
ntroduction Intended Use Super CPAP Battery Packs are intended to provide external power to CPAP and BiLevel machines; however, they may aslo be used to power other devices that operate from a 12V DC current such as cell phones, portable DVD players, iPads and laptops. -
Page 6: Important Notes
mportant otes Sine Wave Inverter or DC Converter Usage ResMed Model Machines & Other 24V Devices If you are using any machine manufactured by ResMed or any other 24V device you must use either a sine wave inverter or DC converter to complete the connection between the machine and the Battery Pack as our Battery Pack provides 12V DC current. -
Page 7: Humidifier Usage
mportant otes Sine Wave Inverter or DC Converter Usage Purchasing Sine Wave Inverters and DC Converters For your convenience Battery Power Solutions offers an incredibly small, yet powerful 150 Watt modified sine wave inverter (sold separately). Modified and pure sine wave inverters may also be purchased from electronics stores.ResMed DC Converters may be purchased from medical equipment suppliers who sell ResMed products. -
Page 8: Use As A Power Backup
mportant otes Use as a Power Backup The Battery Pack is equipped with a standard smart charger keeping the battery topped off and ready to go as an emergency power backup during power outages. You may keep the Battery Pack plugged into a wall outlet and your CPAP/BiLevel machine and in the event of a power outage the Battery Pack will automatically begin powering your device. -
Page 9: Getting Started
etting tarted Control Board Part Identification The control board of the Battery Pack includes the DC in and out jacks used to connect the Battery Pack to the device you are wanting to power as well as the power meter which indicates the remaining power level. ... -
Page 10: Turning The Battery Pack On/Off
etting tarted Turning the Battery Pack On/Off The Battery Pack will turn on or off automatically when a device is plugged into or disconnected from the Battery. If the Battery Pack stops functioning, reconnect the AC charger to the Battery Pack to reset the internal circuitry. -
Page 11: Charging In A Vehicle
etting tarted Charging in a Vehicle The use of a sine wave inverter or a DC converter allows you to safely and efficiently charge the Battery Pack via the cigarette lighter socket of a vehicle. Charge times will vary depending upon sine wave inverter or DC converter type and vehicle battery type. -
Page 12: Battery Pack Operation
Connect the DC power pigtail cord included with your Battery Pack to the DC Out Jack on the Battery Pack. C-100 Battery Packs are sold in single and double configuration packages. If you are using two C-100 Battery Packs connect the DC power pigtail cord to both Battery Packs. -
Page 13: Connector Tips
attery peration Connector Tips If the DC power cord included with your Battery Pack will not directly and tightly fit in the CPAP/BiLevel machine you will need to use one of the connector tips provided to complete the connection between the Battery Pack and the machine. -
Page 14: Connection Via 150 Watt Sine Wave Inverter
attery peration Connection Via 150 Watt Sine Wave Inverter Connect the DC power pigtail cord to the DC Out Jack on the Battery Pack(s). Connect the DC input cord to the DC power pigtail cord. Connect the inverter adaptor cord to the side of the inverter. Connect ... -
Page 15: Safety Warnings
afety arnings By purchasing, using or possessing any of Battery Power Solutions’ products, you are agreeing to hold harmless Battery Power Solutions, it’s subsidiaries, affiliates, owners, officers and employees from any and all claims or liability for any damage to any property or injury, illness or death of any person when such damage, injury, illness or death shall be caused in whole or in part from use of the product(s). - Page 16 1-877-445-5228 info@batterypowersolutions.net www.batterypowersolutions.net CPAP BATTERY PACK USER’S GUIDE July 2013...
