U s e r 's m a n u a l

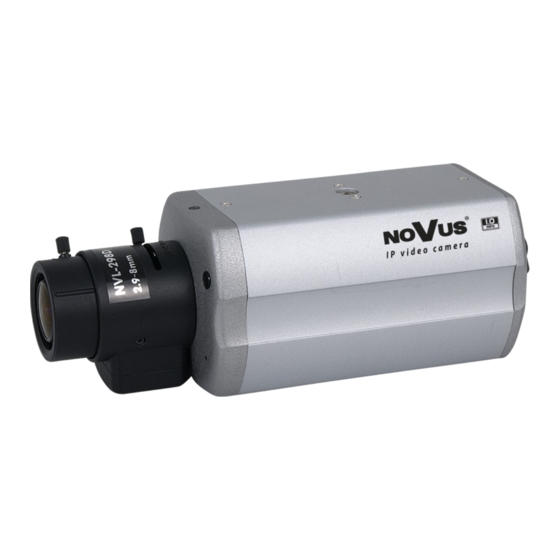

NVIP-TDN5410C/MPX1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVIP-TDN5410C/MPX1.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novus NVIP-TDN5410C/MPX1.0

Summary of Contents for Novus NVIP-TDN5410C/MPX1.0

  • Page 1 U s e r ’s m a n u a l NVIP-TDN5410C/MPX1.0...

  • Page 2: Important Safeguards And Warnings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. IMPORTANT SAFEGUARDS AND WARNINGS EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives:  Electromagnetic compatibility EMC 2004/108/EC.
  • Page 3 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. IMPORTANT SAFEGUARDS AND WARNINGS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS ..................... 4 1. FOREWORD INFORMATION ..................6 1.1. General Characteristics ..................6 1.2. NVIP-TDN5410C/MPX1.0 tech specification ...........7 1.3. Package contents ....................8 2. START-UP AND INITIAL IP CAMERA CONFIGURATION ......... 9 2.1. Description of crucial connectors and control tools ..........9 2.2.
  • Page 5 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. TABLE OF CONTENTS 4.2.4. Event settings ..................... 26 a. Events ....................... 27 b. Schedule ....................28 c. I/O Settings ....................29 d. Mail & FTP ....................30 e. Log list ..................... 31 f. SD memory card ..................31 5.

  • Page 6: Foreword Information

    Diverse definition of system reactions to alarm events: e-mail with attachment, saving file on FTP or SAMBA server, saving file on SD/SDHC card, alarm output activation  Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and remote IP devices administration ...

  • Page 7: Nvip-Tdn5410C/Mpx1.0 Tech Specification

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. FOREWORD INFORMATION 1.2. NVIP-TDN5410C/MPX1.0 specification Model NVIP-TDN5410C/MPX1.0 Pick-up Element 1/4” CMOS imager Imager Resolution 1.0 megapixels Min. Illumination 0.74 lx/F=1.2—color mode, 0,37 lx/F=1.2—b/w mode Electronic Shutter Auto (AES)/manual(1/30-1/1000s) Digital Slow Shutter (DSS) 0.03 ~ 0.2 s...

  • Page 8: Package Contents

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. FOREWORD INFORMATION 1.3. Package contents After you open the package make sure that the following elements are inside:  IP camera  230 VAC / 12 VDC power supply  Wrench key  Plate for CS mount ...

  • Page 9: Start-Up And Initial Ip Camera Configuration

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. START-UP AND INITIAL CAMERA CONFIGURATION 2. START-UP AND INITIAL IP CAMERA CONFIGURATION 2.1. Description of crucial connectors and control tools 1. Ethernet 100 Mb/s (RJ-45 connector) 2. Alarm input/output 3. RESET button 4. Auto Iris control terminal 5.

  • Page 10: Lens Mounting

    2.3. Starting the IP camera To run NOVUS IP camera you have to connect it either directly to the power supply or via power supply adapter. Next, connect the Ethernet cable between the PC or network switch and IP cameras.

  • Page 11: Initial Configuration Via The Web Browser

    192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for camera and PC computer You can set network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera or select DHCP mode (DHCP server is required in this method in target network) by using web browser or by NMS software.

  • Page 12: Network Connection Utilizing Web Broswer

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NETWORK CONNECTION UTILIZING WEB BROSWER 3. NETWORK CONNECTION UTILIZING WEB BROSWER 3.1. Recommended PC specification for web browser connections Requirements below apply to connection with an IP camera, assuming smooth image display in 1280x800 resolution and 30 fps speed.
  • Page 13 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NETWORK CONNECTION UTILIZING WEB BROSWER When you log on to the camera, web browser will download the applet for displaying images from the camera. Depending on the current Internet Explorer security settings it may be necessary to accept an ActiveX control.

  • Page 14: Connection With Ip Camera Via The Mozilla Firefox

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NETWORK CONNECTION UTILIZING WEB BROSWER 3.3. Connection with IP camera via the Mozilla Firefox It is also possible to connect to the camera by using Mozilla Firefox, but this browser doesn't offer full functionality of the camera, so the recommended browser is Internet Explorer. The first run of the IP camera in Firefox is very similar like in the IE.
  • Page 15 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NETWORK CONNECTION UTILIZING WEB BROSWER Select Run A window depicting installation of particular components is then displayed. After proper installation pictures from the camera should become visible All rights reserved © AAT Holding sp. z o.o.

  • Page 16: Www Interface - Working With Ip Camera

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA 4. WWW INTERFACE – WORKING WITH IP CAMERA 4.1. Displaying live pictures. 7.Alarm 8. OSD. 2.Outputs 2.Outputs 1. Streaming 3.Online 6.Setup 4.Speaker selection connection 5.Snapshot 1. Stream selection (if available) 2.

  • Page 17: Camera Configuration

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA Right mouse button click on the live screen view allows to use the following functions: 1. Snapshot - saves the current frame in JPEG format 2. Record start/record stop - starts or stops local disc video recording (including audio) 3.

  • Page 18: System Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA 4.2.1. System settings a. System information - Set up the camera name, select language, and set up the camera time.  Camera model - information about camera model  MAC Address - MAC address of a device ...

  • Page 19: User Management

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA b. User management - tab responsible for adjusting user parameters, add new ones or delete existing.  Anonymous user login - allows anyone to watch live camera view  Add user - adds new user (guest). To add an account, please type in the user name and password, then click “Add/Set”...

  • Page 20: System Update

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA c. System update - tab responsible for upgrading firmware, saving and restoring default camera settings.  Firmware upgrade - Upgrades the camera with a new firmware To update firmware online, please click the BROWSE button and then select new f/w file (.bin extension).

  • Page 21: Network

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA 4.2.2. Network a. IP setting - table containing IP configuration and camera ports.  IP assignment - allows to choose either DHCP server or manually set an IP address and other...

  • Page 22: Ddns

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA b. DDNS - allows to adjust DDNS settings  DDNS Configuration - allows to enable DDNS which locates a device in the Internet by referring to the registered domain. It is used mainly when the Internet connection of the IP camera has a variable IP address.

  • Page 23: A/V Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA 4.2.3. A/V setting a. Image setting - tab with camera picture settings.  Privacy Mask - allows to enable three independent privacy zones. In order to activate a particular zone, please select a button corresponding to it and mark the area while pressing right mouse button.

  • Page 24: Video Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA b. Video setting - configures video streams and their parameters Camera features up to 2 adjustable video streams that may be configured and run individually. Available modes:  Input resolution - selects maximum resolution for the image sensor ...

  • Page 25: Audio Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA  Advanced mode - allows to fine tune camera parameters, by adding the following options:  Bitrate Control Mode - CBR constant bit rate, VBR variable bit rate  Video quantitative (in VBR mode) ...

  • Page 26: Event Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA 4.2.4. Event setting a. Event setting - configuration of motion detection and network events  Motion detection - allows you to define three motion detection areas with each area featuring four motion detection zones.
  • Page 27 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA  Record file - selects file extension of the alarm messages  Avi - video recording (with sound when active) whose length is a sum of pre and post alarm recording durations ...

  • Page 28: Schedule

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA b. Schedule  Schedule setting - defines the time when camera reacts to alarm input signals and motion detection. You can choose any specific day and hour and choose it by clicking right mouse button. Selected area change colour to green.

  • Page 29: I/O Settings

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA c. I/O setting  Input setting  Input sensor - NO or NC type  Input action - sending E-mail message with an attachment, sending a file to FTP server, activating the output, saving file to an SD card (file type is selected in EVENT SETTING tab) ...

  • Page 30: Mail & Ftp

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA d. Mail and FTP  Mail setting  Login method - either onto account or anonymous login  Mail server - IP or domain address of a mail server ...

  • Page 31: Log List

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA e. Log list  System logs  Motion detection logs  I/O logs  All logs All events are described by time and date. Logon process is additionally described by the IP address of a logging user.
  • Page 32 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA Clicking on a desired file opens a window that allows either to open file or save it on a local HDD. Deleting unwanted records from the SD card is also possible.
  • Page 33 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. WWW INTERFACE - WORKING WITH IP CAMERA When window with files list appears click OK button to accept the selection. In next window Login to server check box should be selected and Username and Password should be filled with correct values (The same as used in login process).

  • Page 34: Electric Connectors And Accesories

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. ELECTRIC CONNECTORS AND ACCESORIES 5. ELECTRIC CONNECTORS AND ACCESORIES 5.1. Description of camera alarm connectors.  Alarm input electric connections Alarm input Switch or sen- IP Camera Normal state 4,2 V Alarm in Active I=16mA max...

  • Page 35: Sd Card Installation

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. ELECTRIC CONNECTORS AND ACCESORIES  Alarm output electric connections Alarm output 4,8 V load Normal state 4,8 V Alarm out Active 0,2 V I=16mA max 5.2. SD card installation Camera supports microSD/SDHC cards with their capacity up to 16GB. In order to install the card properly, please follow the instructions below: 1.

  • Page 36: List Of Supported Sd Cards

    NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. ELECTRIC CONNECTORS AND ACCESORIES 5.3. List of supported SD cards Trascend SDHC Class4 16GB SDHC Class4 32GB Class4 16GB Class4 32GB SDHC Class6 SDHC Class6 SDHC Class6 16GB Class6 Class6 Class6 16GB SDHC Class10 SDHC Class10...

  • Page 37: Restoring Factory Defaults

    5. Log on after approx. 1 minute using default IP address (http://192.168.1.200) and default user name (root) and password (pass) In the NVIP-TDN5410C/MPX1.0 reset button is located as depicted below. Non metal, thin object (e.g. match) is recommended for pushing it.
  • Page 38 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NOTE All rights reserved © AAT Holding sp. z o.o.
  • Page 39 NVIP-TDN5410C/MPX1.0, User’s manual ver.1.0. NOTE All rights reserved © AAT Holding sp. z o.o.
  • Page 40 AAT Holding sp. z o.o., ul. Puławska 431, 02-801 Warszawa, Polska tel.: 22 546 07 00, faks: 22 546 07 59 www.novuscctv.com 2013-04-26 MB...
