Page 2: Table Of Contents
PLEASE DO NOT RETURN CONTENTS THIS SCOOTER TO THE STORE. For questions or assistance on assembly, contact Customer Service ................3 Currie Technologies ® Customer Service toll free at Technical Information .................4 (800) 377-4532 Scooter Components ................5 Scooter Assembly ................6-11 Quick release levers/clamps ............10-11 Monday - Friday Scooter Use..................12 8:00 am - 4:00 pm (PST) -
Page 3: Technical Information

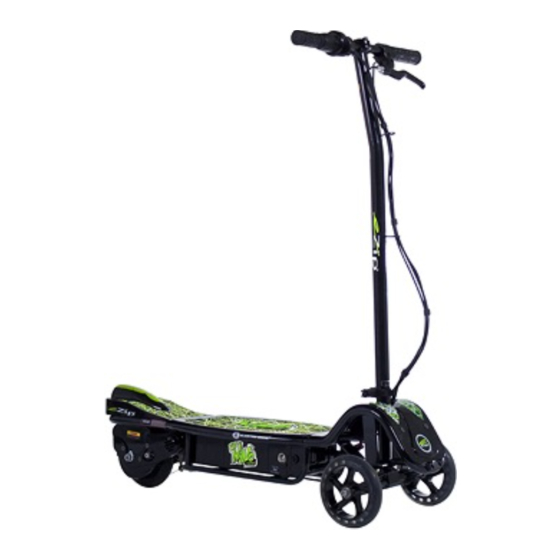

PUSH TO START SCOOTER COMPONENTS “Top cap” 1. flip the power switch ON. The switch will glow. Handlebar 2. Push scooter to kick-start motor Brake lever 3. Put your foot on the deck and GO!!! Scooter must be moving forward at about 2mph (3 km/h) Throttle before motor will activate Steering mast... - Page 4 If your scooter’s handlebar is welded to the steering mast, please skip this page and proceed to step 3 ASSEMBLING yOUR Ez3 NANO 2. Remove the two bolts holding the top cap onto the steering mast. Lay the handlebar on the steering mast, then replace 1.
- Page 5 3. Before riding for the first time, you should check the tightness of all nuts and bolts on the scooter. Most important are the front wheel axle nuts, any nuts or bolts around the rear brake, the motor, and the rear wheel. Make sure the brake levers and throttle are secure on the handlebars;...
- Page 6 Properly adjusting the steering mast quick release clamp 5. If you are able to force the handlebar out of alignment with the front wheels, the clamp needs to be adjusted. Holding the quick release lever in the OPEN position with one hand, tighten the tension adjusting nut with your other hand Tension adjusting On the EZ3Nano, the steering mast is clamped in place by the force of about 1/2 turn clockwise.
-
Page 7: Scooter Use
SCOOTER USE SAfETy GUIDELINES Before riding your scooter for the first time, you should fully charge the battery. This may take up to 8 hours. See the sec- LIMITATIONS Of SAfETy AND WARNING NOTICES tion of this manual on battery charging for more information. This owner’s manual includes important safety guidelines and maintenance instructions. - Page 8 Never operate this product without proper training or instructions. Practice turning at low speeds before attempting to turn at faster speeds. Do not turn at excessive speed as this could increase the risk of injury. A child under 8 years old should never operate this product. Rider age does not necessarily mean that they are qualified to operate this product.
-
Page 9: Battery Care
• Always be sure to turn the bike/scooter power switch to “OFF” after each use. If you leave the power switch in the BATTERy CARE “ON” position, or your product has not been charged for a long period of time, the batteries may reach a stage at which they will no longer hold a charge. -
Page 10: Battery Charging
Battery fAQ BATTERy CHARGING Q: Do I need to “break-in” my batteries? Plug the battery charger into a wall outlet, then into the charger port on the side of the scooter. The indicator light on the A: Yes, it is recommended that you perform a “break-in” cycle consisting of ~ three discharge/charge cycles to allow your face of the charger will turn red, showing that charging has started. -
Page 11: Maintenance
Brake adjustment MAINTENANCE Although the brake on your scooter is set at the factory, you may need to adjust it slightly as the brake pad wears over time. Regularly checking your scooter and performing maintenance will greatly extend its useful life, and ensure the scooter remains safe to ride. - Page 12 Replacing the brake cable: Lever barrel adjuster If the brake lever on your scooter becomes stiff and difficult to operate, the brake cable may have become rusted or dirty inside its housing. You can easily replace the brake cable to get back to “like new” performance. The EZ3Nano uses a standard bicycle brake cable and cable housing that can be purchased inexpensively at any bike shop.
-
Page 13: Troubleshooting
After owning the scooter for a while, the brake lever becomes stiff and difficult to operate TROUBLESHOOTING • See instructions on page 22 for help cleaning or replacing your brake cable. Scooter will not function • Charge battery for the full recommended time (6-8 hours) •... -
Page 14: Limited Warranty
Warranties are limited to replacement of parts and/or products determined by Currie, at its sole discretion, to be defective. In cases where multiple components are missing, you may be redirected to the retailer for assistance. Currie will not be responsible for labor costs or repairs. LIMITED WARRANTY Currie’s Limited Warranty does not cover or apply to the following: Normal wear and tear;... - Page 15 ADDT’L SAfETy INSTRUCTIONS fCC INSTRUCTIONS These instructions update the owner’s manual to ASTM F2642 standard. Failure to read, understand and follow FCC Warning for the battery charger WARNING the instructions in this manual may lead to serious injury or even death. Warning: Changes or modifications to the charger not expressly approved by the party responsible for compliance could void the user’s »...
- Page 16 9453 Owensmouth Ave. Chatsworth, CA 91311 Phone: +1 800.377.4532 fax: +1 818.734.8199 www.CurrieTech.com...
