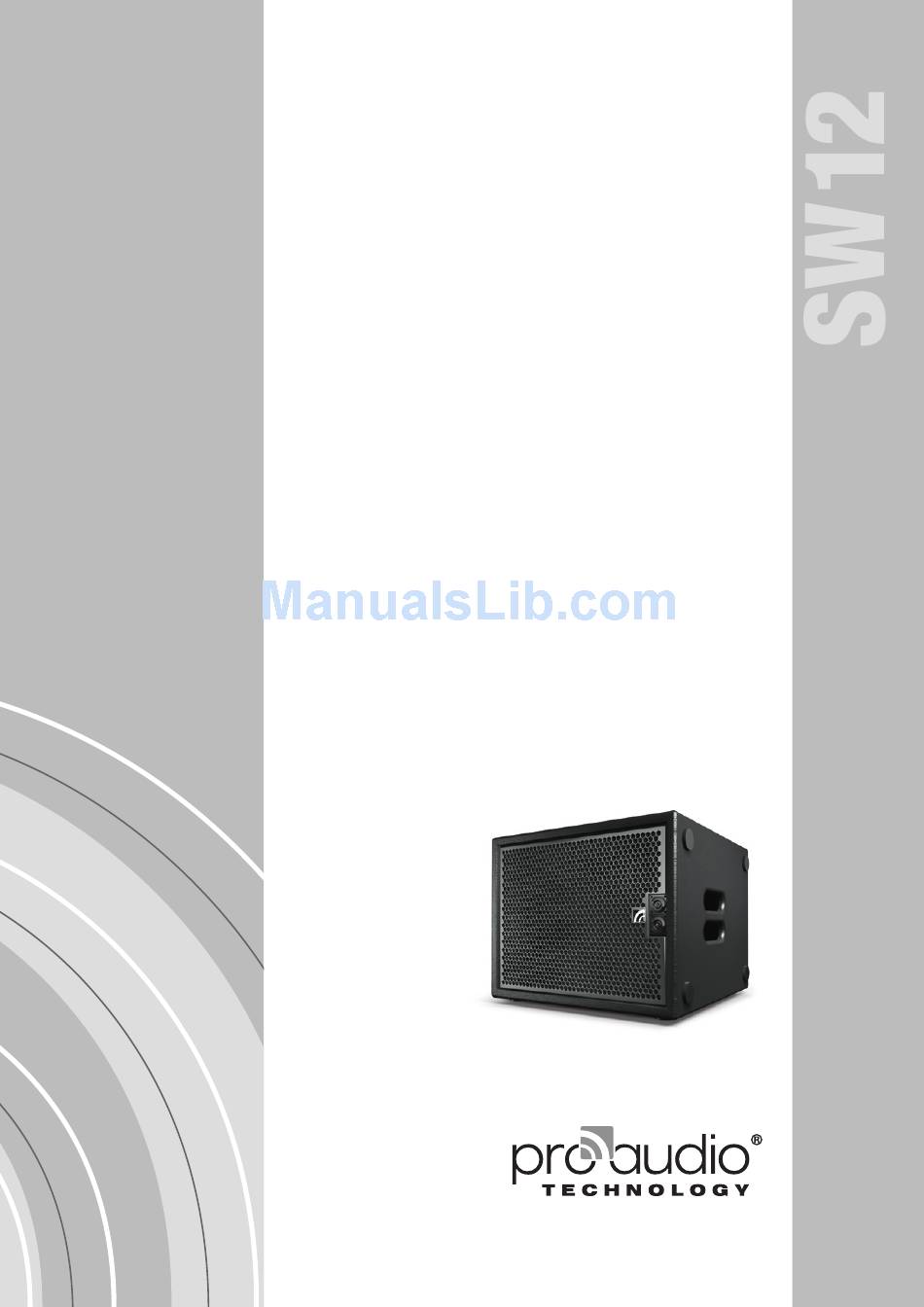

  • Page 1 Manual SW12 Subwoofer...

  • Page 2: Table Of Contents

    • Operating Modes [1] SW12........

  • Page 3: General Safety And Care Instructions

    �ying rails and the tripod �ange. Replace them if necessary. Make sure that during operation on spacer tubes, no persons will stand close to the loudspeakers. Use only accessory parts speci�ed by ProAudio Technology or original accessory parts from ProAudio Technology. Loudspeakers always produce a magnetic �eld. Make sure...

  • Page 4: Description And Use

    (CSA operation mode). The CSA mode will be explained in detail on the following pages of this manual. Combinations of SW12 and tops, which are supplied via a 4-pole speaker cable, must only be connected at the rear SpeakON sockets of the SW12 subwoofers! Never use the SpeakON sockets on the front side.

  • Page 5: Operating Modes

    One ampli�er channel will be assigned. Pin pair 1 can be used for tops. Front Front DELTA 8.4-DSP / 14.4-DSP – 2 x 2-pc Sub Array [SW12 – 2 CH] All four SW12 subwoofers are wired using 4-pole speaker cables. Two subwoofers on either side are each driven by one dedicated ampli�er channel.

  • Page 6: Drawings / Dimensions

    Front Front DELTA 14.4-DSP – 2 x 3-pc Cardioid Sub Array [SW12-CSA] All six SW12 subwoofers are wired using 4-pole speaker cables. The four front- and the two back-�ring subwoofers are each driven by one dedicated ampli�er channel. Two ampli�er channels will be assigned.

  • Page 7: Technical Speci�Cations

    The relevant regulations must be observed and adhered to. EU Conformity Declaration: This declaration is valid for the SW12 loudspeaker of the manufacturing company ProAudio Technology GmbH. Included herein are all production items of the same type, as long as they have not been modi�ed subsequently in structural or...
  • Page 8 Manual SW12 Subwoofer – 2014-02 ENG ProAudio Technology GmbH Hermann-Schwer-Strasse 3 78048 Villingen-Schwenningen Germany Phone: +49 (0) 77 21 / 99 81 96 - 0 Fax: +49 (0) 77 21 / 99 81 96 - 9 info@proaudio-technology.de www.proaudio-technology.de...
