Summary of Contents for ProAudio SW 12

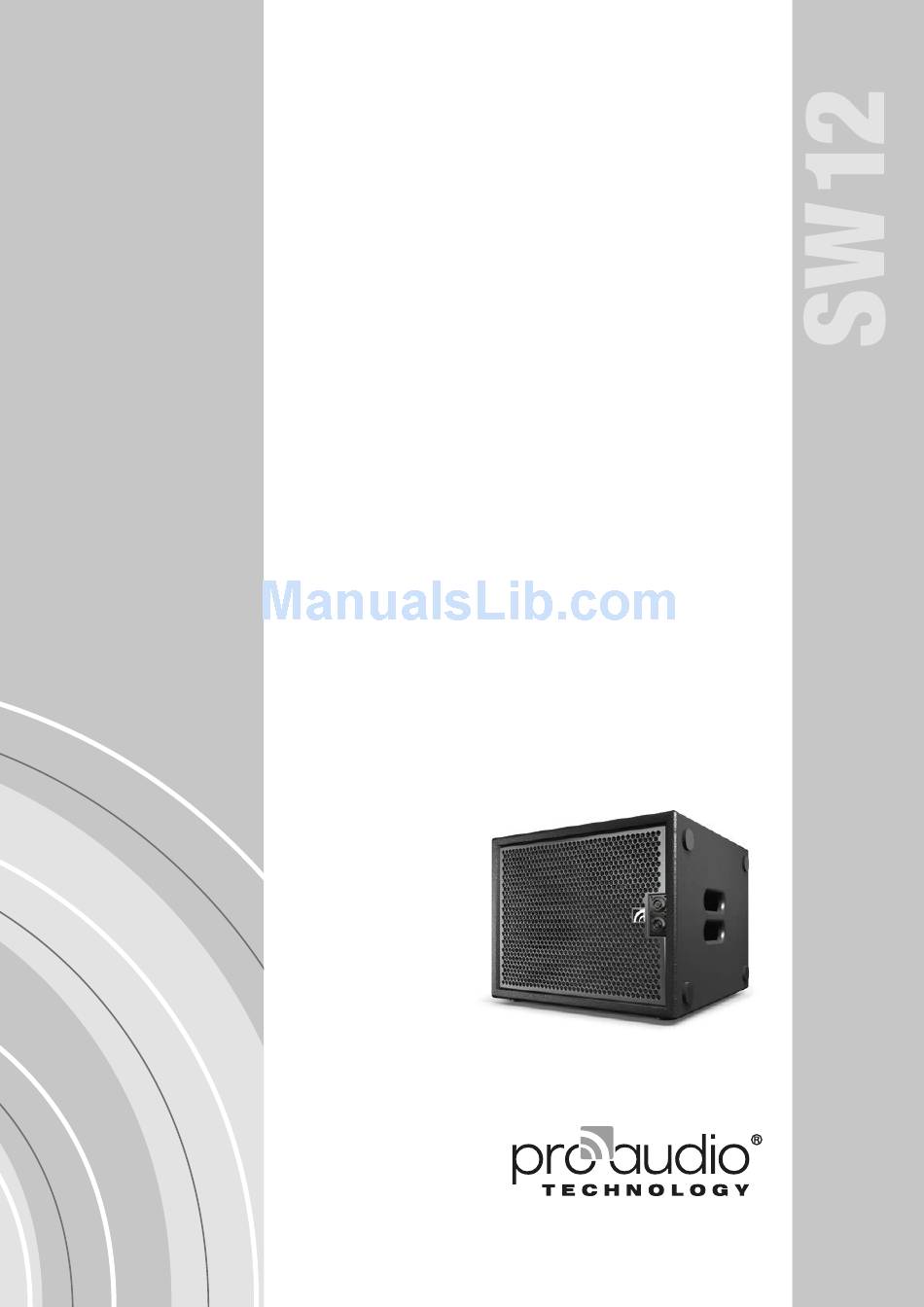

- Page 1 Manual SW12 Subwoofer...
-
Page 2: Table Of Contents
Information on the manual: Symbols: Items delivered: Manual • Subwoofer SW12 Subwoofer Version 1.1 ENG • Manual ProAudio Technology Last update January 2015 Caution Hazardous Strictly Copyright © ProAudio Technology GmbH danger voltage observe Contents: • Symbols........ -
Page 3: General Safety And Care Instructions
Replace them if necessary. Make sure that during operation on spacer tubes, no persons will stand close to the loudspeakers. Use only accessory parts specified by ProAudio Technology or original accessory parts from ProAudio Technology. Loudspeakers always produce a magnetic field. Make sure... -
Page 4: Description And Use
Operation is to be made (exclusively) using the ProAudio Technology system amplifiers. Two different setups – omnidirectional (front) and cardioid (front and rear) – enable a practice-oriented usage. Alternatively you can also use amplifiers of the Hoellstern DELTA series with built-in DSP. -
Page 5: Operating Modes
Operating Modes [1] SW12: Front DELTA 8.4-DSP / 14.4-DSP [SW12] Both SW12 subwoofers are wired using 4-pole speaker cables. One amplifier channel will be assigned. Pin pair 1 may be used for tops. Front DELTA 14.4-DSP [SW12] All three SW12 subwoofers are wired using 4-pole speaker cables. One amplifier channel will be assigned. -
Page 6: Drawings / Dimensions
Front Front DELTA 14.4-DSP – 2 x 3-pc Cardioid Sub Array [SW12-CSA] All six SW12 subwoofers are wired using 4-pole speaker cables. The four front- and the two back-firing subwoofers are each driven by one dedicated amplifier channel. Two amplifier channels will be assigned. DELTA 8.4-DSP / 14.4-DSP DELTA 8.4-DSP / 14.4-DSP [SW12-CSA]... -
Page 7: Technical Specifications
EU Conformity Declaration: This declaration is valid for the SW12 loudspeaker of the manufacturing company ProAudio Technology GmbH. Included herein are all production items of the same type, as long as they have not been modified subsequently in structural or electromechanical respect. - Page 8 Manual SW12 Subwoofer – 2015-01 ENG ProAudio Technology GmbH Gruenstrasse 13 79232 Hugstetten Germany Phone: +49 (0) 76 65 / 94 23 23 - 0 Fax: +49 (0) 76 65 / 94 23 23 - 9 info@proaudio-technology.de www.proaudio-technology.de...
