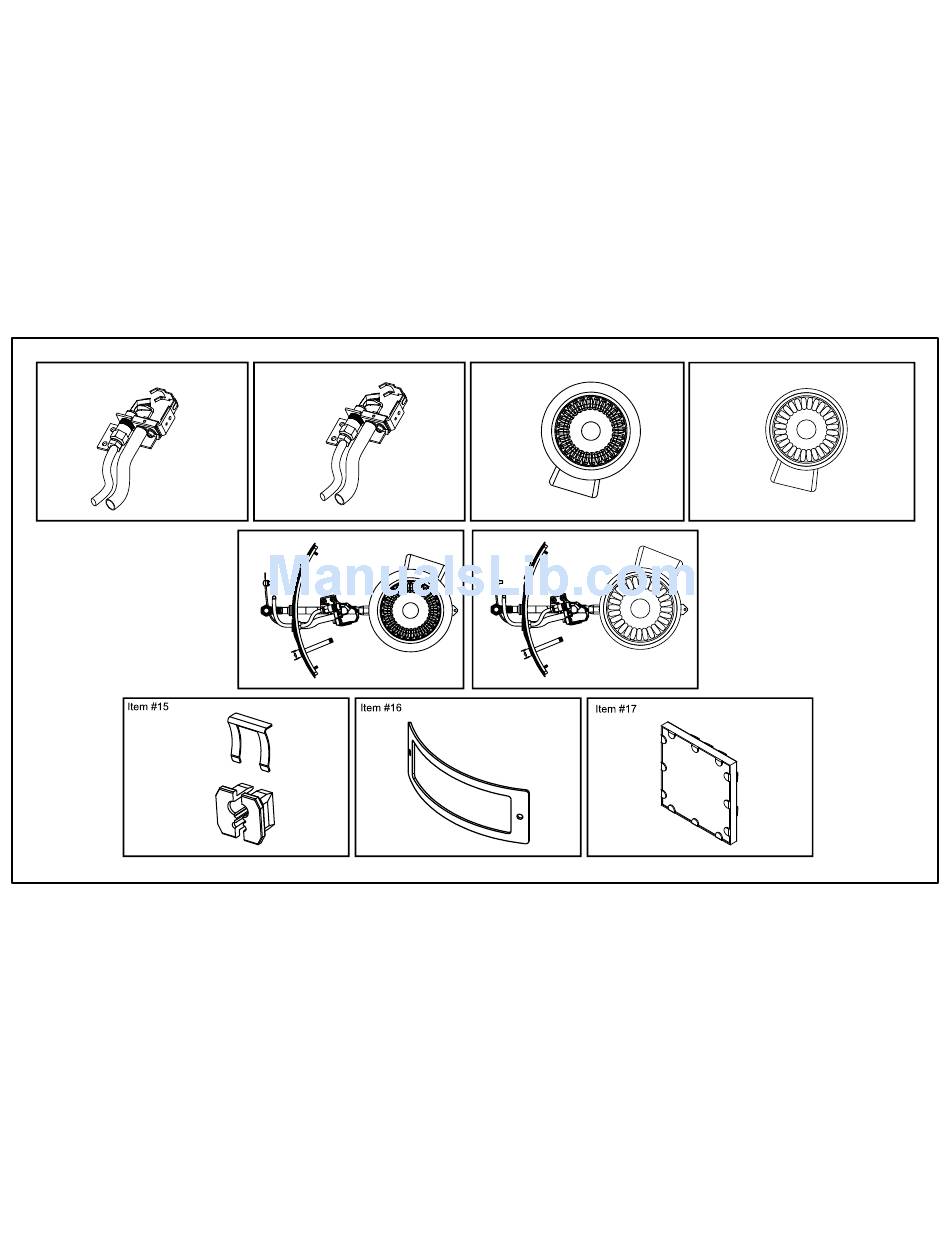

Listed Parts Kits and Illustrations

Item 12A: Pilot/Igniter-Flame Sensor assembly kit, which contains the pilot, igniter-flame sensor, and retainer clip (Natural
Gas)
Item 12B: Pilot/Igniter-Flame Sensor assembly kit, which contains the pilot, igniter-flame sensor, and retainer clip (L.P. Gas)
Item 13A: Burner (Natural Gas/L.P. Gas)
Item 13B: Burner (L.P. Gas)
Item 14A: Manifold door assembly which contains the manifold tube, gasket, door, pilot\igniter-flame sensor assembly,
manifold component block with retainer clip, thermal switch, and pilot tube. (Natural Gas/Low Nox)
Item 14B: Manifold door assembly which contains the manifold tube, gasket, door, pilot\igniter-flame sensor assembly,
manifold component block with retainer clip, thermal switch, and pilot tube. (L.P. Gas)
Item 15: Contains manifold component block and retainer clip
Item 16: Contains manifold door gasket
Item 17: Contains viewport
Item #12A Item #12B
Item #14A
Item #13A
Item #14B
35
Item #13B
L.P. BURNER
