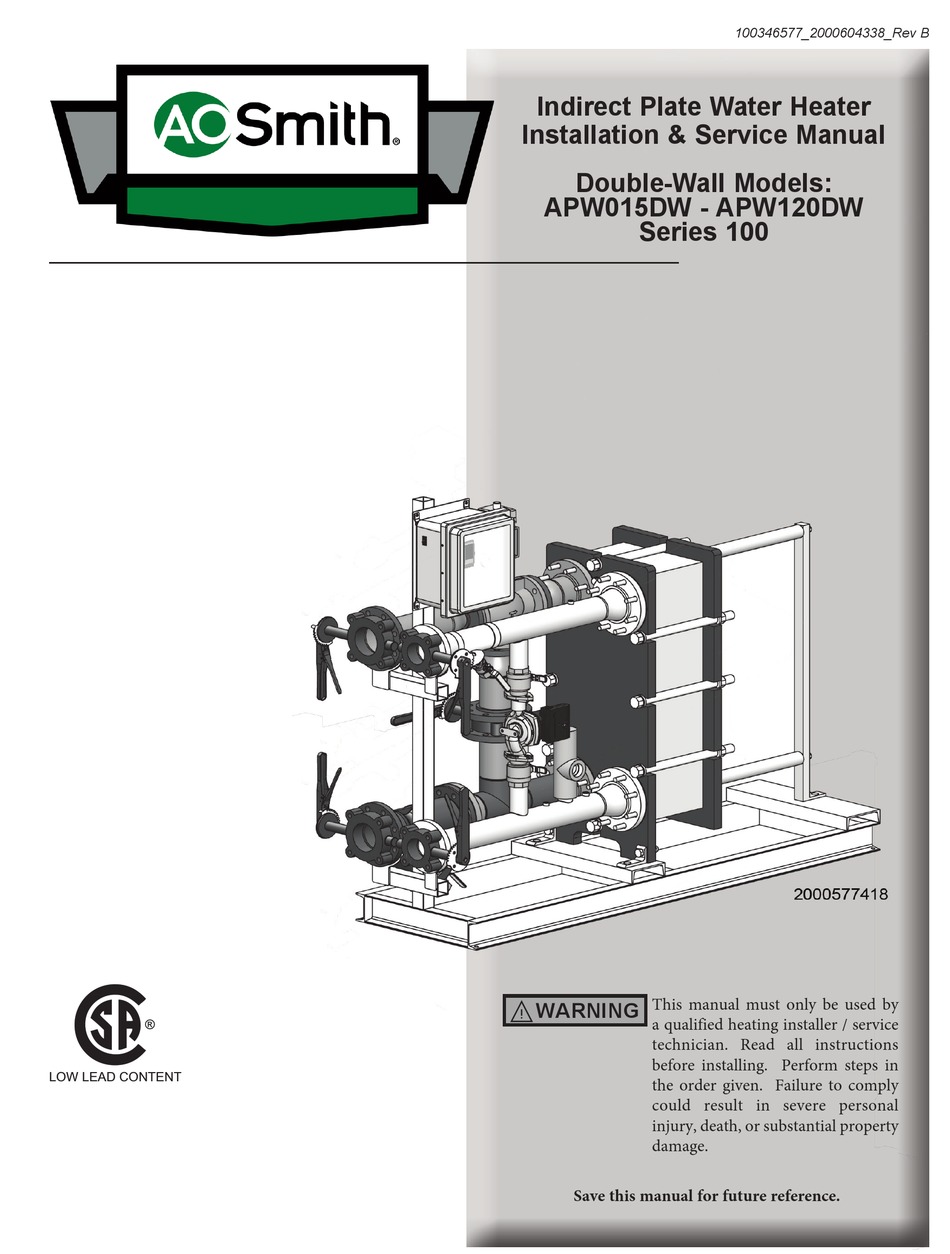

100346577_2000604338_Rev B
Indirect Plate Water Heater
Installation & Service Manual
Double-Wall Models:
APW015DW - APW120DW
Series 100
This manual must only be used by
⚠WARNING
a qualified heating installer / service
technician. Read all instructions
before installing. Perform steps in
LOW LEAD CONTENT
the order given. Failure to comply
could result in severe personal
injury, death, or substantial property
damage.
Save this manual for future reference.
