Summary of Contents for Covert Black Select

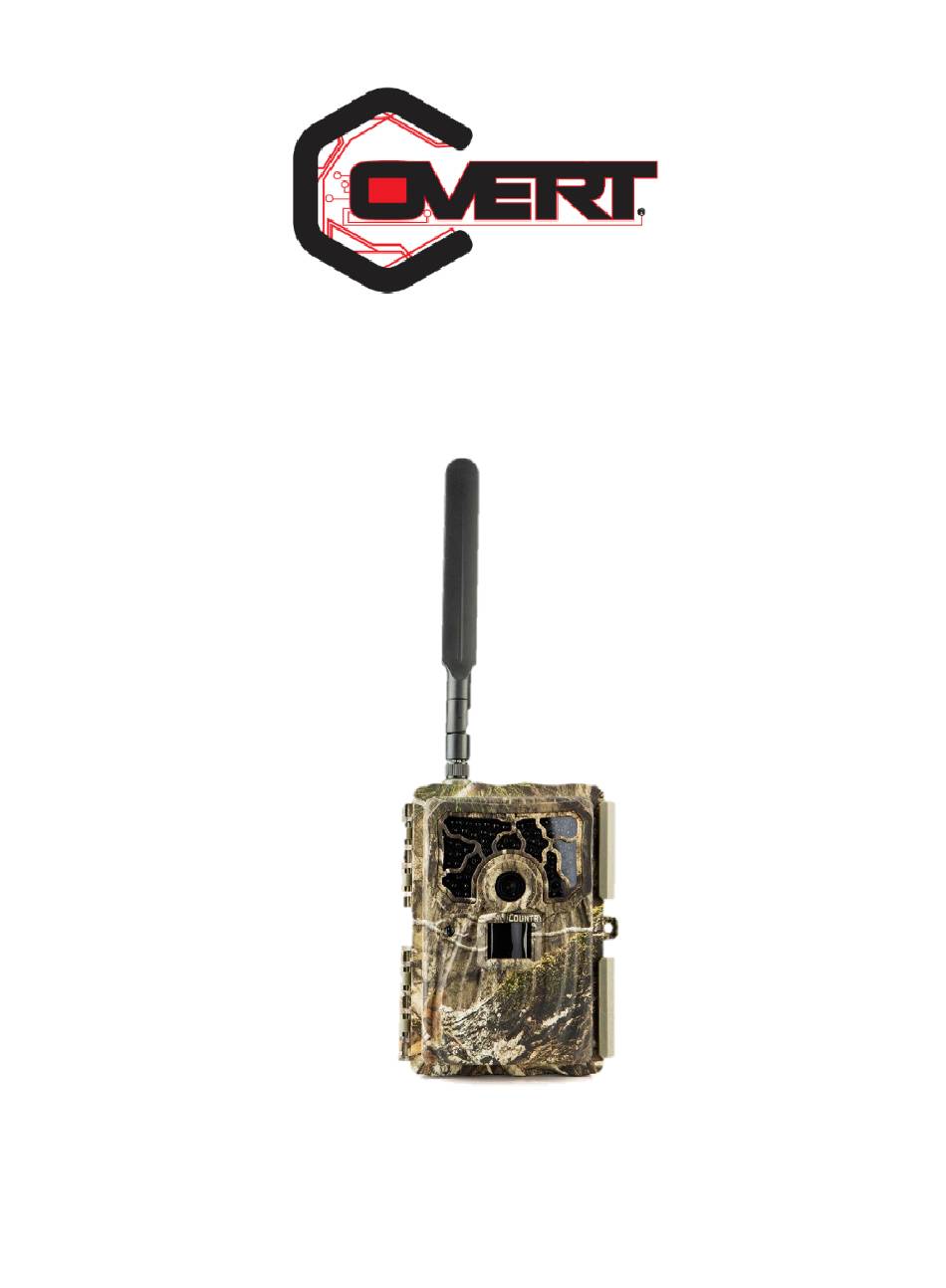

- Page 1 Code Black Select Covert Scouting Camera Instruction Manual...
-
Page 2: Table Of Contents
Understanding the Main Screen Info ......12 Menu Screens ............13 Screen 1 - NET ..........13 Screen 2 - CAM ..........15 Screen 3 - PIR ........... 16 Screen 4 - SYS ........... 18 Tricks and Tips/Troubleshooting ......20 Covert Scouting Cameras Warranty ......22... - Page 3 Congratulations on your purchase of the Code Black Select Covert Scouting Camera! We truly value your business and will continue to provide you top quality customer service should you ever need help with any of our products. Check out our other products on our website at: www.covertscoutingcameras.com...
- Page 4 Downloading the Mobile App Search “Covert Wireless” in your Google Play Store or Apple App Store. Accessing the Web Portal: Open your web browser to: www.covert-wireless.com Accessing the Billing Site: Open your web browser to: https://secure.covert- wireless.com...
-
Page 5: Quick Start Guide
Find the QR code on the first page of the menu under “QR Code”. Scan the QR code with your smart phone camera This will take you to https://secure.covert- wireless.com Either Log In to your account, or create an account... -
Page 6: What You Will Need To Setup The Camera
1 16GB SD card (Up to 32GB) Installing the Batteries The Code Black Select functions on 12 AA batteries. To install, click the eject button, slide the battery tray out of the bottom of the unit, and slide each battery into its appropriate slot. -
Page 7: Quick Set Up
Quick Set Up 1. Install batteries and SD card 2. Install either your AT&T or Verizon SIM card and register the camera to your account. (See page 3) 3. Switch the camera to SETUP 4. Press Menu, and select your desired settings 5. -
Page 8: Button And Front Case Diagram
Button and Front Case Diagram Three Position ON/OFF Switch PIR Sensor Menu Button Arrow and OK Buttons Set-Up Screen Battery Tray Eject Button... -
Page 9: Button And Switch Function
When going from OFF directly to ON, you will briefly see the Covert logo, followed by a 5 second countdown and screen will go black, it is supposed to do this. - Page 10 Button Functions Arrow Keys – You will use these keys to scroll • through the menu, change the settings for your camera, and take a photo or video. Take Image – to take an image using the arrow keys, simply press the right arrow key and your camera will take a picture.
- Page 11 Menu Button – • The menu button, located above the arrow keys, is used to access your camera settings, and delete images stored on your SD card. o To Delete – a fter clicking OK to view your images, click Menu, and it will give you the option to delete that image.
-
Page 12: Understanding The Main Screen Info
Understanding the Main Screen Info When you go to set up your camera you will come to the main screen (pictured below) before you head into your settings. Megapixel & SD Card Storage Video Setting Cell Reception Date & Time Battery Life... -
Page 13: Menu Screens
Menu Screens The menu screen is divided into four screens, which you can switch between at the top of the screen with the left or right arrow keys. Screen 1: Net Send Mode On – when on, your camera will transmit images and videos to the app. - Page 14 Upload Setting Tells your camera to upload the settings changes you have made on the camera in real- time to the app. Download Setting Tells your camera to download the settings changes you have made on the server in real- time to the camera.
-
Page 15: Screen 2: Cam
Screen 2: CAM Camera Mode Photo – Camera will take still images when triggered Video – Camera will take videos when triggered Photo & Video – Camera will take both still images and videos when triggered stom Settings Photo Size – Set the megapixels to your preferred setting (5, 8, 16, 20, 24, 30) Photo Flash Power –... -
Page 16: Screen 3: Pir
Video Length – Set the length of video you would like taken each time the camera is triggered (5-60s) Video Flash Power – Set your desired video flash power (Low, Middle, High) Screen 3: PIR Trigger Mode PIR Trigger – Each time movement and heat are detected, the camera will take an image Time lapse –... - Page 17 PIR Sensitivity Set the sensitivity of you PIR sensor. Options are low and high. Low: The camera will only trigger from major movements High: The camera will take pictures whenever movement is detected. PIR Interval Your PIR interval can be set between 0 and 1 hour.
-
Page 18: Screen 4: Sys
Work-Time 1-4 You can set the time range and day of the week in which you would like your camera to function. When a work period is set, the camera will not take images outside of the set work time. You can set up to 4 separate work times for your camera Screen 4: SYS... - Page 19 Rename – You can give your camera an 8-character name. Overwrite – When turned on, your camera will delete the oldest image stored on the SD card when the camera runs out of storage. Format - Formatting your SD card clears everything off the card.
-
Page 20: Tricks And Tips/Troubleshooting
Use one of the Covert mounting systems to mount the camera up higher pointing down on them for a better look. You can find our line of mounting systems at: www.covertscoutingcameras.com. - Page 21 Quick Tip: When turning the camera from setup mode to the on position, there will be a 10 second countdown followed by the screen going black. It is supposed to do this. Quick Tip: Format the SD card and then Default the camera.
-
Page 22: Covert Scouting Cameras Warranty
(2) year from date of purchase. If the product proves defective during the warranty period, Covert, at its option, will: 1. Repair the product by means of telephone support, Email, or depot service at no... - Page 23 Covert. (US only) Return shipping to be billed to customer and must be paid prior to return shipping if camera is found not to be defective in materials or workmanship.
- Page 24 Outside the US, service is available through the distributor/reseller of purchase. All returns must have a RMA number provided by Covert. Copy of Proof of Purchase required for all returns. Covert is not responsible for lost or damaged merchandise incurred during the shipping process.
- Page 25 Covert reserves the right to charge for service in exception cases. A description of the depot process may be obtained from the authorized Covert reseller/distributor. Depot service is at Covert’s or its authorized dealer’s sole discretion and is considered an option of last resort. In the...
- Page 26 To repair damage, malfunction, or degradation of performance caused using non-Covert supplies or consumables or the use of Covert supplies not specified for use with this product. d. To repair an item that has been modified or integrated with other products when the effect of...
- Page 27 To replace items that have been refilled, are used up, abused, misused, or tampered with in any way. j. To install replacement items that are not considered customer replaceable. k. To support software not supplied by Covert l. To provide software or firmware updates or upgrades.
- Page 28 Any service identified in the above list and provided by Covert at the Customer’s request shall be invoiced to the customer, at Covert’s then current rates for parts, labor, and shipping. THE ABOVE WARRANTIES ARE GIVEN BY COVERT WITH RESPECT TO THIS PRODUCT AND ITS RELATED ITEMS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED.
- Page 29 TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT SHALL COVERT AND ITS VENDORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF PROFITS) WHETHER BASED...
