System Installation

The VersiCam Wireless system is composed of three distinct components, the Camera Processor unit,
the ICC‐2W module which is located in the traffic control cabinet and a Base Station which is located on
the signal pole nearest the traffic control cabinet. The Base Station and the ICC‐2W module
communicate over twisted pair cable. The cable transmits data and provides power from the ICC‐2W
module to the Camera Processor unit. A PC is required to install and configure the system. A suite of
applications is provided to set up the network, set the Field of View and configure the Camera Processor
unit.
3.1

The Camera Processor Unit

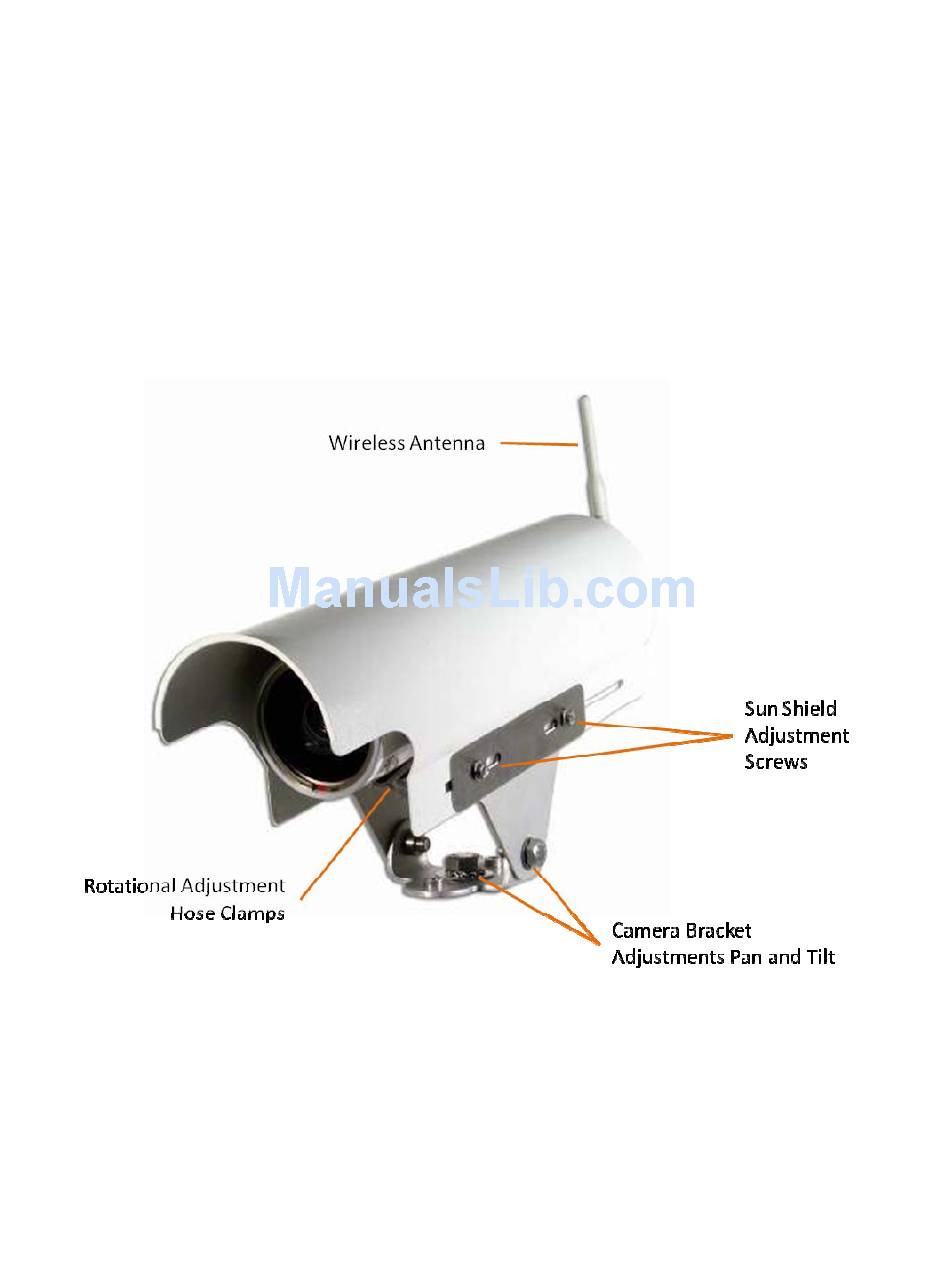

Figure 3.1(a) Camera Processor Unit
The Camera Processor unit integrates the camera and video processor into one. Communications data
are sent back to the ICC‐2W via the wireless module mounted inside the back cap.
