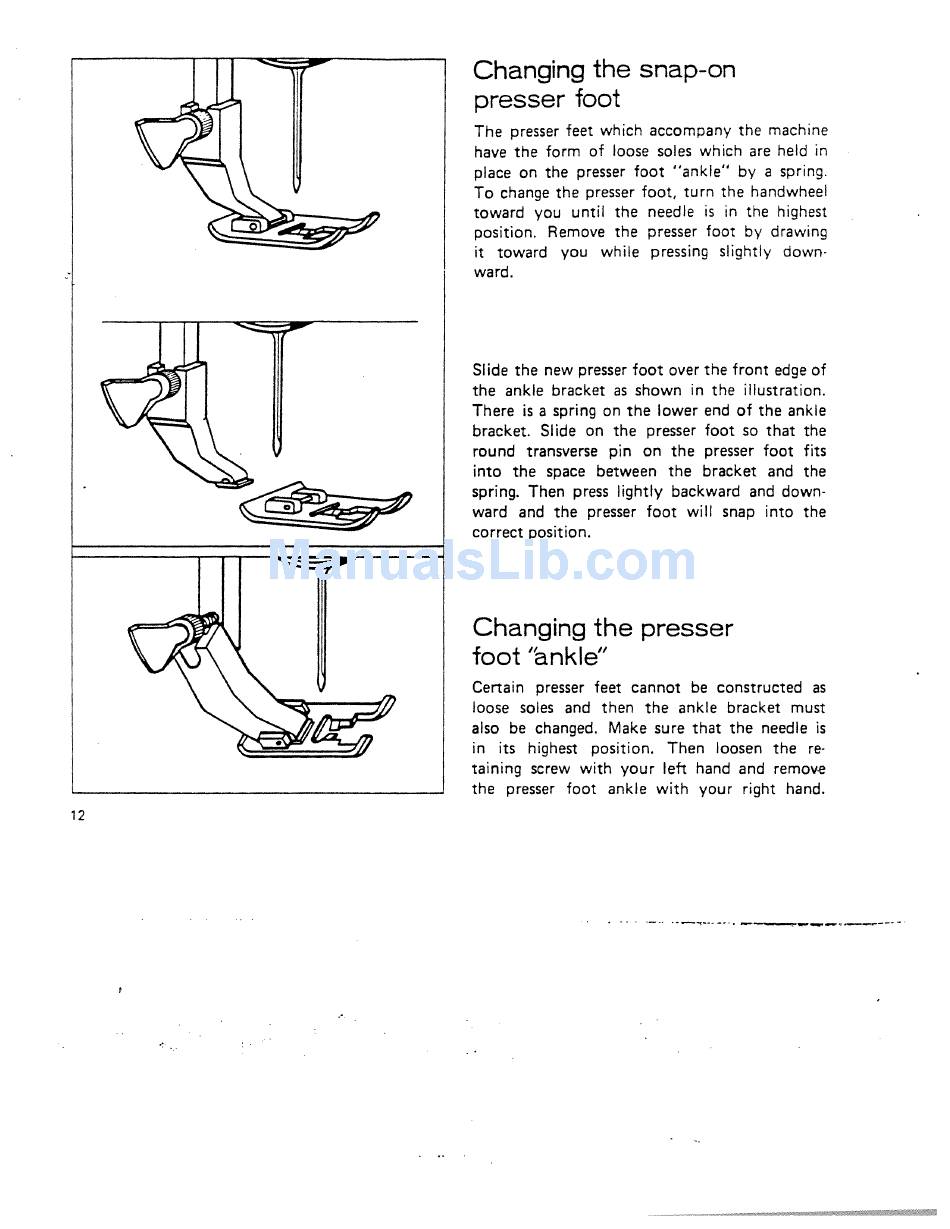

Changing the snap-on
presser foot
The presser feet which accompany the machine
have the form of loose soles which are held in
place on the presser foot "ankle" by a spring.
To change the presser foot, turn the handwheel
toward you until the needle is in the highest
position. Remove the presser foot by drawing
it toward you while pressing slightly down
ward.
Slide the new presser foot over the front edge of
the ankle bracket as shown in the illustration.
There is a spring on the lower end of the ankle
bracket. Slide on the presser foot so that the
round transverse pin on the presser foot fits
into the space between the bracket and the
spring. Then press lightly backward and down
ward and the presser foot will snap into the
correct position.
Changing the presser
foot 'nkle"
Certain
presser feet cannot be constructed as
loose soles and then the ankle bracket must
also be changed. Make sure that the needle is
in its highest position. Then loosen the re
taining screw with your left hand and remove
the presser foot ankle with your right hand.
12
