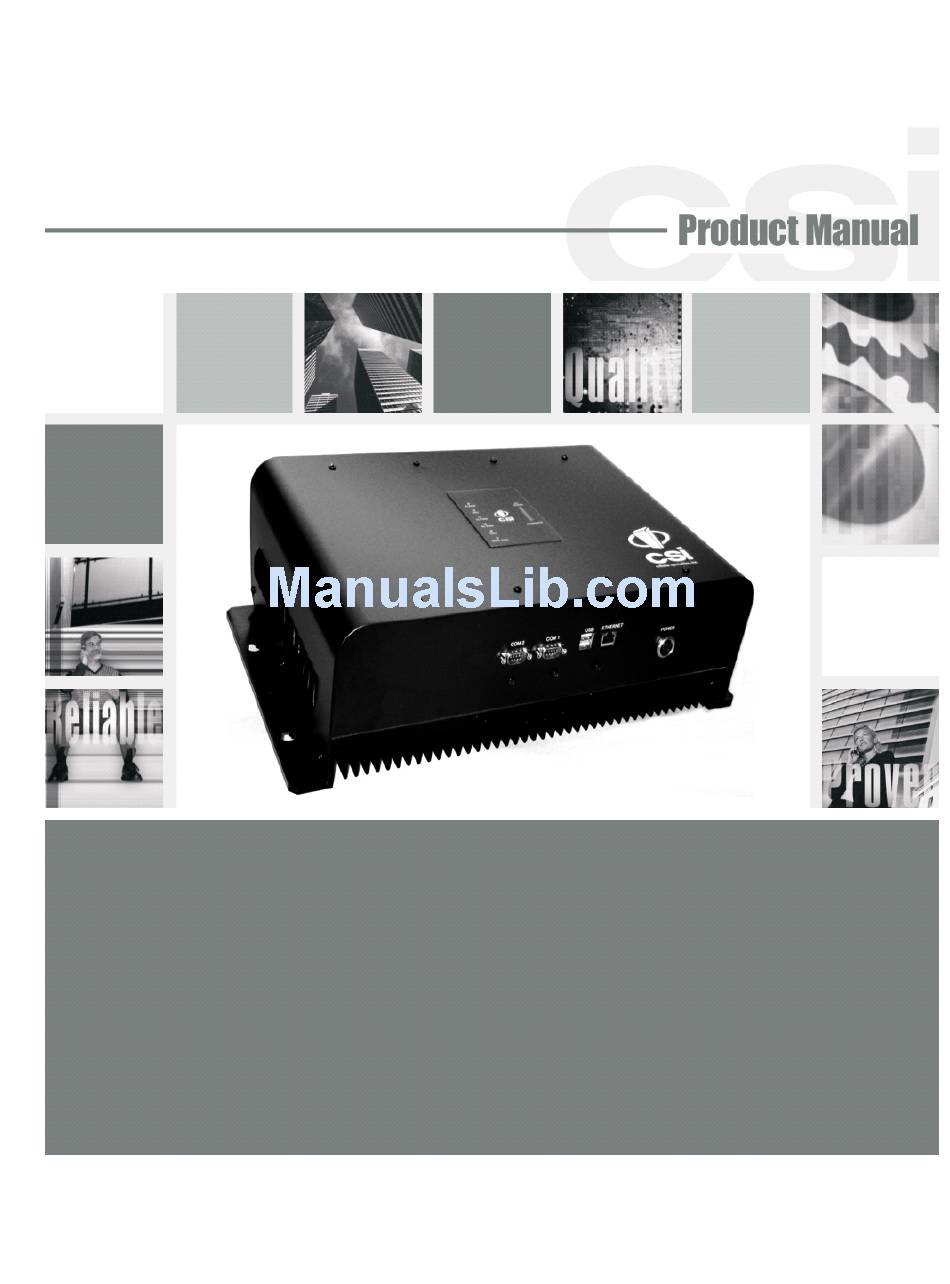

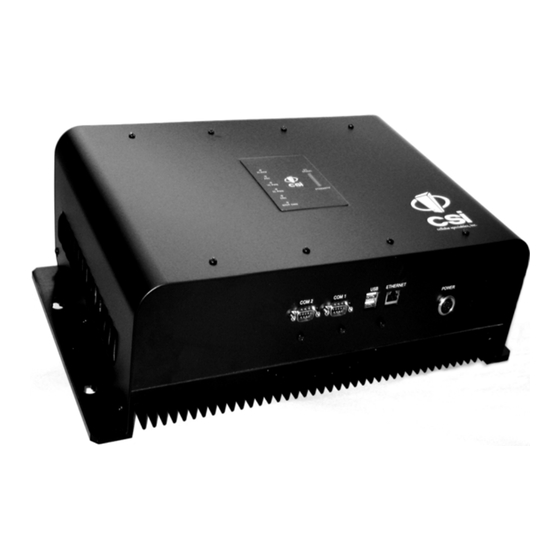

- Page 1 CSI-DSP85-P, CSI-DSP85-C, CSI-DSP85I-P and CSI-DSP85I-C Installation Manual...
-
Page 2: Table Of Contents
Table Of Contents Product Registration Information ........4 Document Purpose/Intended Users ........4 Application ..............4 Safety Guidelines .............4 Important Safety Information ..........5 Terms Used in This Manual ..........5 Product Introduction ............5 DSP Filter Naming Convention .......6-7 Functional Overview ..........8 LED Indicators .............8-9 Local Communications Interface Ports ......10 Pin-out Chart ............10 USB Interface ............10... -
Page 3: Product Registration Information
DISCLAIMER: All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, Inc. (CSI), but Cellular Specialties makes no warranty with respect thereto, including without limitation any results that may be obtained from the products described herein or the infringement by such products of any proprietary rights of any persons. -
Page 4: Important Safety Information
The filter set configurations stored in memory determine the unit’s adaptability to various field applications. The following pages describe the PCS band plan as well as the convention CSI uses to identify and store the files that make up the filter set. All DSP85-P, DSP85-C, DSP85I-P and DSP85I-C repeaters are shipped with an active filter set that is programmed according to the ordering parties’... -
Page 5: Dsp Filter Naming Convention
Cellular Frequency Band Plan Uplink 846.5 (MHz) Downlink 891.5 (MHz) A’ B’ SMR 900 SM800 A” Public SMR 800 Safety iDEN UL 794-806 UL 806-821 UL 821-824 UL 824-825 UL 825-835 UL 835-845 UL 845-846.5 UL 846.5-849 UL 896-901 DL 764-776 DL 851-866 DL 866-869 DL 869-870... - Page 6 Note: Filter file names will be from six to twelve characters long. Each character position in the filter file name is used to define the characteristics of the filter as shown above. All frequencies are shown in MHz - 7 -...
-
Page 7: Functional Overview
Functional Overview The CSI-DSP85-P, CSI-DSP85I-P, CSI-DSP85-C and CSI-DSP85I-C repeaters incorporates the following features for convenient operation, access, protection, and control. • Network Configuration and Control using either a webpage style GUI through any standard browser or a menu driven user interface using the serial port. - Page 8 When boot is complete and no alarm conditions exist, none of the LED indicators will be illuminated. The CSI logo is illuminated when ever the repeater is powered. One or more bars on the LED bargraph may also be lit, depending on the strength of the signal being received from the donor site.
-
Page 9: Local Communications Interface Ports
Local Communication Interface Ports To allow monitoring and control, the repeater is equipped with four ports that provide external communication access (1 Ethernet CAT-5, 2 DB-9 serial, and 1 USB). The Ethernet, CAT-5 port is provided as a primary communications port to the PC. One serial interface provides commu- nications to local PC and the second to an external modem when provided. -
Page 10: System Set-Up Considerations
In these cases it may not be practical to use the repeater for providing coverage to these sites. Selection of external attenuators to be used in line with the CSI-DSP85 Antenna Port(s):... - Page 11 Attenuator Selection Guidelines: Accurate attenuator values need to be chosen to ensure that the maximum total power (higher of Composite or In- Band Input) applied to the donor and server port(s) does not exceed the following thresholds: Input Signal Max Gain Input Signal Max Gain <-55 dBm...
-
Page 12: Mounting The Repeater
Wall Mounting the Digital Repeater The following diagram illustrates the best method for mounting the repeater to a wall in an typical installation. Note: for optimal cooling the unit should be mounted vertically on a wall with the antenna ports up. IT E M # Q T Y P A R T #... -
Page 13: Optional Accessories
Optional Accessories A complete line of accessories is available from Cellular Specialties, Inc. Check with your CSI distributor for any additional items needed. Below are just a few examples suitable for most in-building needs. •Outside Donor Antenna •UPS PCS - model number: CSI-AY/1.85-1.99/10... -
Page 14: Function Block Diagram
Functional Block Diagram - 15 -... -
Page 15: Mechanical Specifications
Mechanical Specifications Parameter Specification Notes Repeater Size Height 4.69 in. Width 18.62 in. Depth 11.25 in. Box Weight 27.5 / 12.47 lbs/kg Box Thermal Management Convection cooled Large heatsink Surface Coating Powder Coat Color Satin Black AC Power Specifications Parameter Specification Notes AC Voltage... -
Page 16: Operating Power Parameters
Operating Power Parameters Parameter Specification Notes Maximum RF input Power +10 dBm without damage Linear Gain 85 dB Factory Calibrated Gain Pass Band Ripple +/-1.5 dB Automatic Gain Control (AGC) 30 dB max In 0.5 dB steps range Manual Gain Control 53.5-85 dB max In 0.5 dB steps Linear Output Power... -
Page 17: Mechanical Drawing
Mechanical Drawing TO INSIDE ANTENNA TO OUTSIDE ANTENNA ALARM UL PWR DL PWR POWER ETHERNET COM 1 COM 2 - 18 -... -
Page 18: Web Based Gui Session
Web based GUI Session Primary access to the repeater is gained using a LAN connection and a web browser program such as Firefox by Mozilla, or Internet Explorer from Microsoft. The repeater ships with the default IP address of 192.168.1.100, but it can be changed later if required. If connecting directly to the repeater from a laptop or PC with a crossover CAT-5E cable or over a LAN the user types the IP address of the repeater into the browser address line to connect. -
Page 19: Local Network
Note: The System Status screen above is that of a Cellular model. PCS models will show PCS data. Local Network: If the user selects Local Network from the System Status page, the following screen is displayed and from here network configuration can be modified as required. The default is set to Static. Check with your IT department for explanation and approval of the DHCP and DHCP Server options you plan to use before you select them. - Page 20 The time required to complete this process will take just a few moments. Note: If the filter desired is not currently in the unit, additional filters along with instructions on how to load them are available by contacting CSI. Note: The screen above is that of a PCS model.
- Page 21 Remote Network: If the repeater includes a modem kit, click on Remote Network in the navigation box and the screen below is displayed. Highlight the carrier on whose network the repeater and modem will be configured and click the Change Settings button. Refer to the documentation included with the modem kit for addtional information on configuring the modem.
- Page 22 Should a software install or upgrade be needed it can be done from the Install & Upload screen shown below. As with the other screens it can be reached by clicking the words in the navigation box. Contact CSI for updates and instructions. -23 -...
- Page 23 Email Alarm Notification and Remote Networking are enabled, and the repeater is equipped with an active wireless modem. Email Alarm Notification is currently restricted to CSI Beta Testing, however, future iterations of operating software will permit broadened use of this feature.
- Page 24 Log Configuration: The Log Configuration page provides the user with the means to modify three aspects of how log files are created and stored as shown below. To end the session: exit the browser, the user will be automatically logged out. -25 -...
-
Page 25: Text Menu Interface (Local Access)
Text Menu Interface (Local Access) Local access to the repeater TMI, also known as the console interface, is made by connecting a serial cable (optional), as shown in figure 1, from the serial connector of the laptop to either of the serial ports on the bottom end panel of the repeater. - Page 26 Select the Serial radio button and press OK as shown below. Note: It may be necessary, in the System Properties section of the control panel; using Device Manager to determine what COM port your computer uses for the communications port. In this case it is COM 1.
- Page 27 TMI main menu will appear. Note: by default the Set Parameters option is disabled. To re-enable the user will press 1 and will be prompted for a username and password. The default user name is csi and the password is csi1234. The actions displayed are self-explanatory.
- Page 28 Each “Set Parameter” selection, when chosen will be expanded to allow changing or setting of that parameter. For example from the Link Configuration menu on the previous page, selecting 1 - Adjust Gain will display the menu shown below. After selecting option 1, downlink, the current user gain is displayed and the option to change it is accomplished by typing the desired gain at the prompt.
-
Page 29: Telnet Session (Remote Access, Login Required)
All the other options operate in much the same way. Some of the options will offer the user additional selections and will be self-explanatory. Below is one example of these additional options, the one shown below is the result of selecting (3) Filter Programming. Note: Graceful session termination is important. - Page 30 Pressing the “OK” button will bring the user to the following screen, which will require the user to log in. In the PCS band units, the user name is “pcsband”. The user name for the Cellular units is “cellband” In the field after the prompt “DSP85-PCS-X login;” type the user name. The default password is “csi1234”.
-
Page 31: Modem Interface (Remote Access With Login)
A selection of modems is available as an option. If the modem requires a SIM card for activation, special requirements must be met for the SIM card to become fully functional, contact the service provider. In addition, an IP address must be obtained and entered into the CSI- DSP85-P. -
Page 32: Additional Tips
Additional Tips Instructions to change TCP/IP settings on your Windows computer. Click in the Network Connections Icon in the Control Panel. See below. Right click on Local Area Connection - and select “Properties”. Scroll down to “Internet Protocol (TCP/IP) and click on the “Properties” button. - 33-... - Page 33 If you are set up to use DHCP, the window shown below will be displayed. Select “Use the following IP address:” and enter “192.168.1.2.” The subnet mask should automatically populate to “255.255.255.0”. Nothing else will need to be chosen or entered. Click “OK”, then “OK again and retry connection.
- Page 34 Suggested spectrum analyzer setting: When troubleshooting RF issues, and when surveying challenging RF environ- ments, it’s important to have a spectrum analyzer capable of measuring the frequency that you are working with. An attenuator should be used to protect the input, when connected to a source of RF power such as the repeater or a powered DAS.
-
Page 35: Product Warranty
One Year Limited Warranty Seller warrants that its products are transferred rightfully and with good title; that its products are free from any lawful security interest or other lien or encumbrance unknown to Buyer; and that for a period of one year from the date of installation or fifteen months from the date of original shipment, which- ever period expires first, such products will be free from defects in material and workmanship which arise under proper and normal use and service. -
Page 36: Index
Local Network 20 Color 16 Terms used in this manual 5 Connectors 17 Text Menu Interface 26 CPU 5 TMI 5 CSI 5 Manual Gain Control 17 Maximum RF input 17 Mechanical Drawing 18 UHCI 5 Mechanical Specifications 16 D/L SIGNALSTRENGTH: 9... - Page 37 Notes - 38 -...
- Page 38 Notes - 39 -...
- Page 39 960-1041-002 revD ECO 2151...
