Building into fitted kitchen units

These hobs are designed for installation in fitted kitchen units up to 600 mm deep with
suitable characteristics.
Any cabinet side panels taller than the height of the hob itself must be at least 150
mm away from the opening into which the hob is inserted.

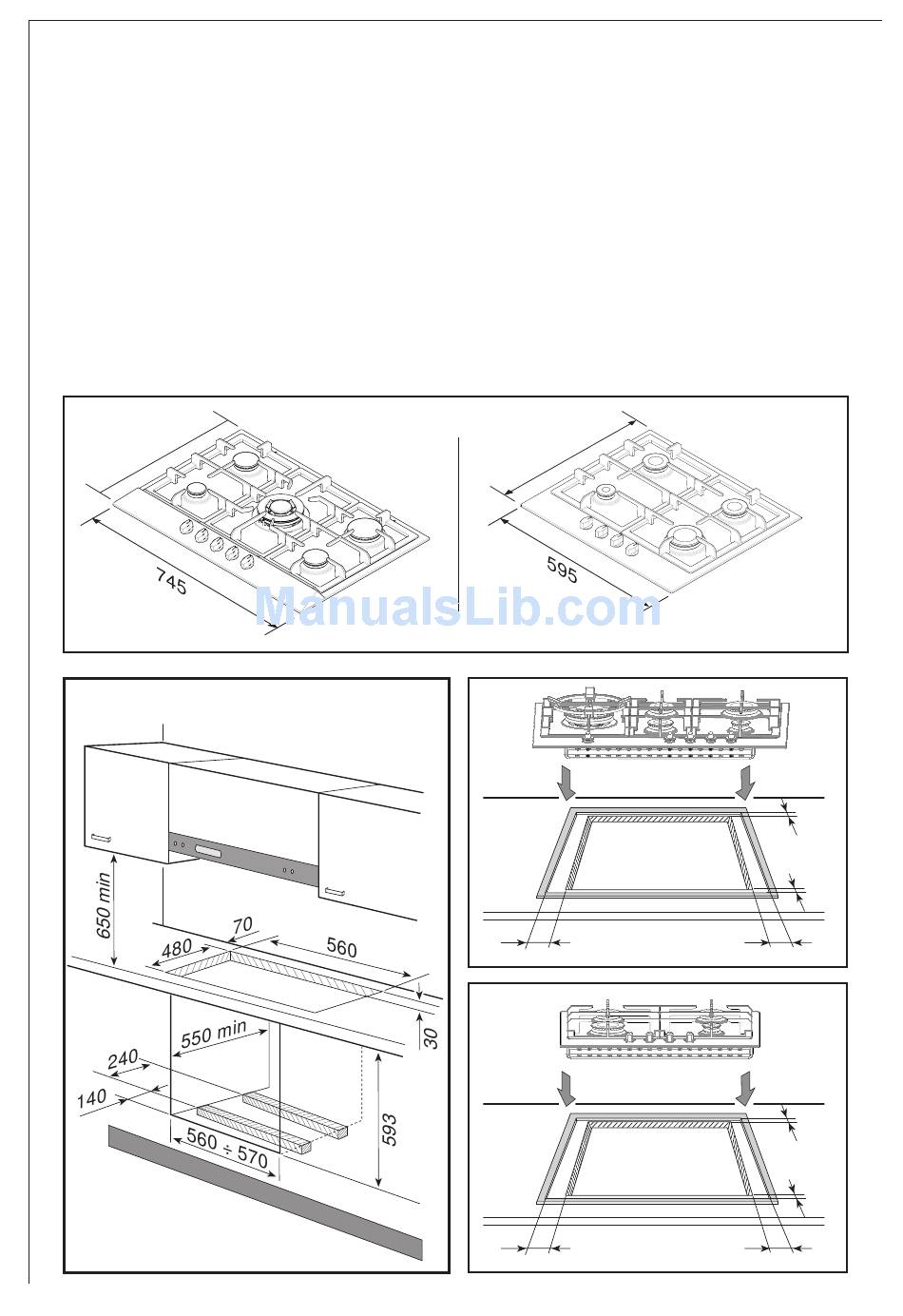

The dimensions of the hob and the installation opening are shown in the illustrations
6 - 7 .
Insertion and fixing
Fit the sealing gasket supplied as shown in figure 8 (for hobs size 745 x 510 mm) or
fig. 8A (for hobs size 595 x 510 mm), taking care that the edges are aligned without
overlapping.
0
5 1
Fig. 6
Fig. 7
14
0
5 1
Fig. 8
87,5
Fig. 8A
12,5
6,5
13,5
87,5
6,5
13,5
12,5
