4.12.3. Upgrade
Click "Browse..."button and select a File to upgrade, after you have selected the appropriate file,
click "Upgrade" button to execute upgrade procedure. Do not cut off the power supply during
the process of upgrading
4.12.4. Reboot
Click "Restart" button to restart the router
4.12.5. Restore
Click "Restore" button, the Router will erase all of your settings and replace them with the
factory defaults, make sure you have backup current settings before click this button
4.12.6. WOL
Input host MAC address, and then click button of "Wake up" to wake up the target host which
in the LAN
Wireless 802.11b/g/n 150Mbps Broadband Router User Manual

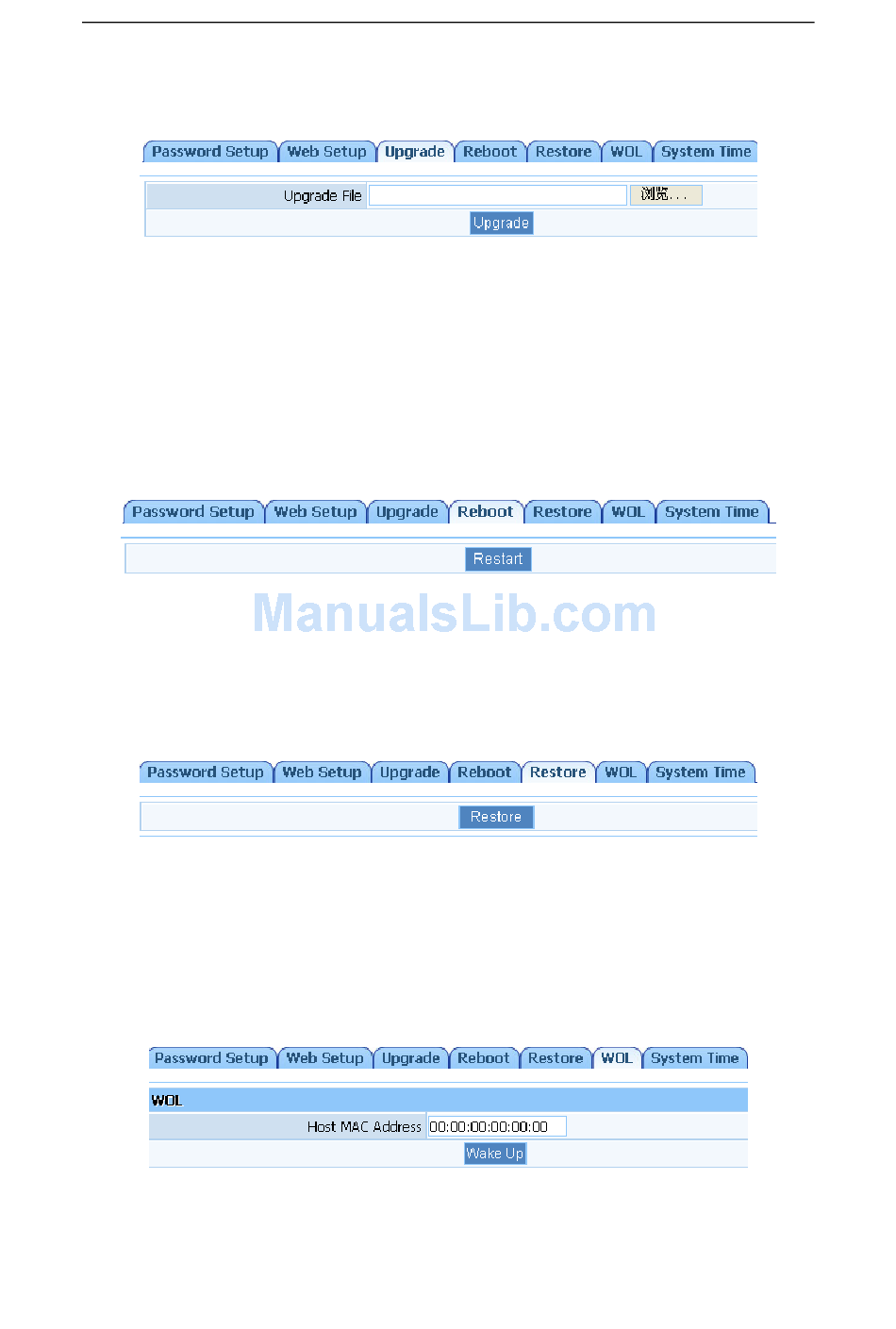

Figure 4-46
Figure 4-47
Figure 4-48
Figure 4-49
53
