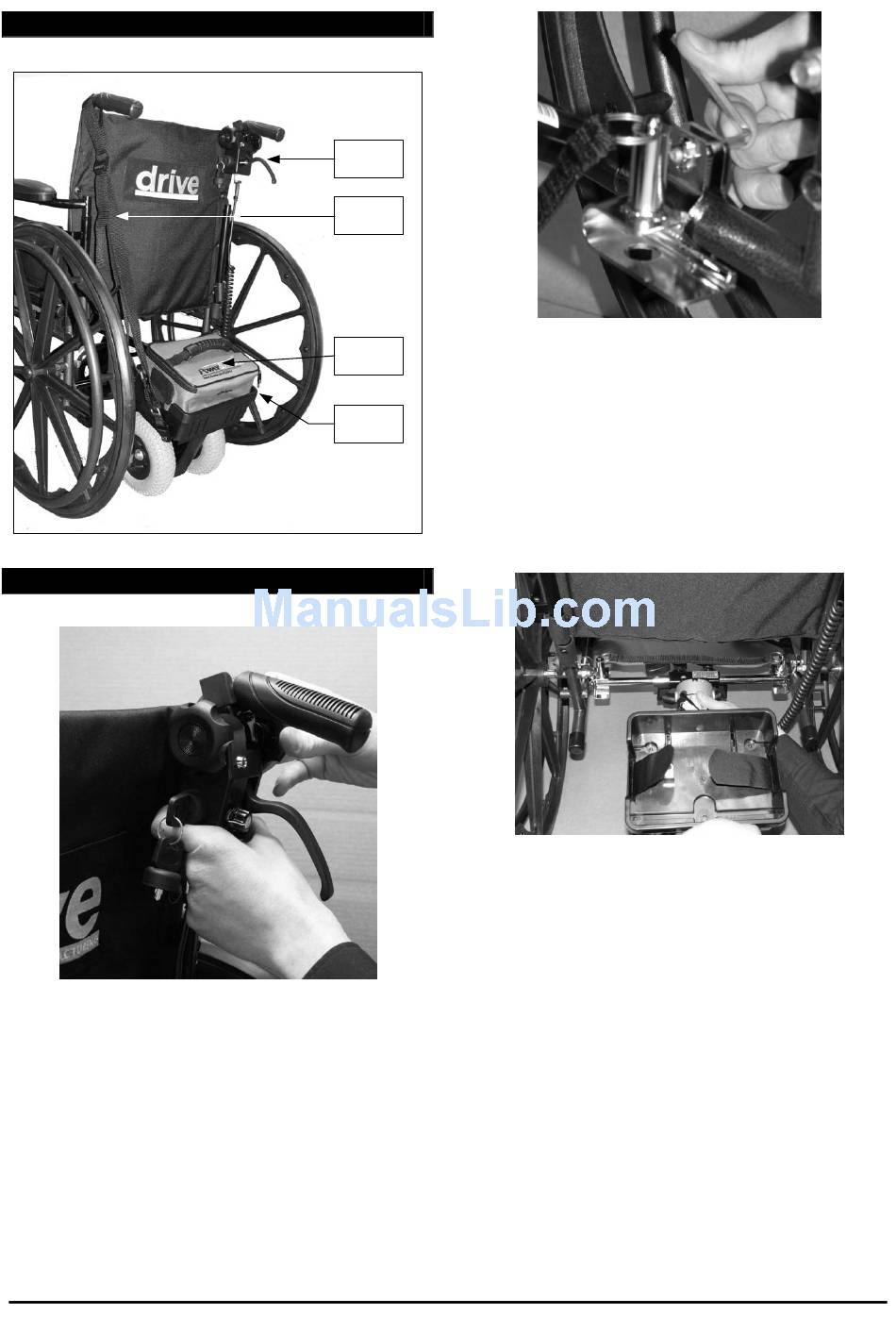

Parts Description

Installation Instructions

Handset Installation
1.
Loosen both knobs on the handset.
Squeeze the crocodile clip on the handset
and apply to the push handle as shown.
Secure the clip by turning the outer knob
clockwise.
Tilt the handset to the required angle then
tighten the inner knob clockwise to secure.
PowerStroll Owner's Handbook
HAND
SET
LIFT UP
STRAP
Bracket Installation
2.
BATTERY
PACK
Install both brackets on the bottom
horizontal tubing of the wheelchair, using an
POWER
Allen Key.
PACK
Ensure that the screws are sufficiently tight
and do not rotate on the tubing.
Attach the two sections of Velcro together.
Powerpack Installation
3.
Feed the telescopic bar through the front
end of the powerpack. Loosen the tristar
knob on the bar and adjust to the correct
length.
Tighten the knobs on the bar and at the
front of the powerpack.
Place the two ends of the bar on the rear of
the brackets, then push the powerpack
forward until it locks in position.
Page 3 of 8 Part Code: Z24000
