- Page 1 EU Authorized Representative Drive Medical LTD Ainley’s Industrial Estate Elland, West Yorkshire, United Kingdom HX5 9JP www.drivemedical.com...

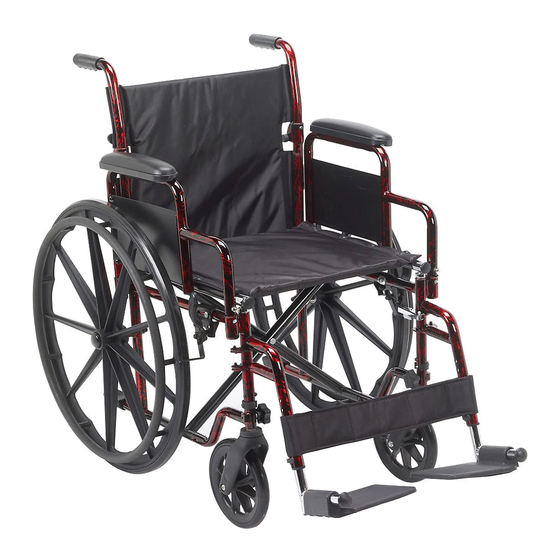

- Page 2 Remove all contents from the carton. Unfold the wheelchair frame by pulling outward on sides of frame until fully opened. 2. The Rebel Wheelchair is shipped with the back in the folded down position. Pull upwards on the back upholstery until the back locks into position. Be sure the back is securely locked before sitting in the wheelchair.
- Page 3 assembly instructions 5. Slide the pin of the “E” Clip into the E-Clip receiving port on the outside of the frame Take the thumb screw and place into the receiving port on the inside of the frame and turn clockwise until tight. Repeat for the Thumb Screw other caster.
- Page 4 assembly instructions 7. Place the footrests on the wheelchair by locating the hanger bracket on the front of the frame and inserting the footrest onto the pins as shown in figure E. The footrests come with a release lever to swing the footrests away from the chair to remove.
- Page 5 9. The Rebel Wheelchair comes with a calf strap for additional support. Locate the Velcro strips and roll the strap over the footrest and attach with the Velcro closure (figure G). Figure G caution Stability - Wheelchair is designed to be safe and stable as long as center of gravity is maintained while going about normal activities.
-
Page 6: Use And Safety
use and safety Wheel Locks - Engage both wheel locks before getting in or out of chair, leaning forward in chair, or while in an elevator or wheelchair lift. Proper adjustment of wheel lock is at least 1/8” when locked. Locks are engaged by pushing handle completely forward. - Page 7 warning Do not attempt to adjust or operate wheelchair without reading carefully all instructions in this manual. This wheelchair has not been approved as a seat that can be used within vehicles of any kind. Always transfer wheelchair user to a vehicle manufacturers approved seat and use safety restraints available.
-
Page 8: Instrucciones De Armado
instrucciones de armado Saque todas las partes de la caja. Desdoble el marco de la silla de ruedas al jalarlo hacia afuera de los costados hasta que quede completamente abierto. 2. La Silla de Ruedas Rebel se envía con el respaldo doblado hacia abajo. Jale la tapicería del respaldo hacia arriba hasta que el respaldo se bloquee en su posición. - Page 9 instrucciones de armado 5. Deslice la clavija del clip “E” dentro del Clip “E” puerto receptor que está en la parte de afuera del marco. Tome el tornillo y colóquelo dentro del puerto receptor por la parte de adentro del marco y gírelo hacia la derecha hasta que quede Tornillo apretado, como se muestra en la figura C.
- Page 10 instrucciones de armado 7. Coloque los estribos en la silla de ruedas, busque el soporte que está en frente del marco e introduzca el estribo dentro de las clavijas como se muestra en la figura E. Los estribos vienen con una palanca de liberación para girar los estribos lejos de la silla y quitarlos.
