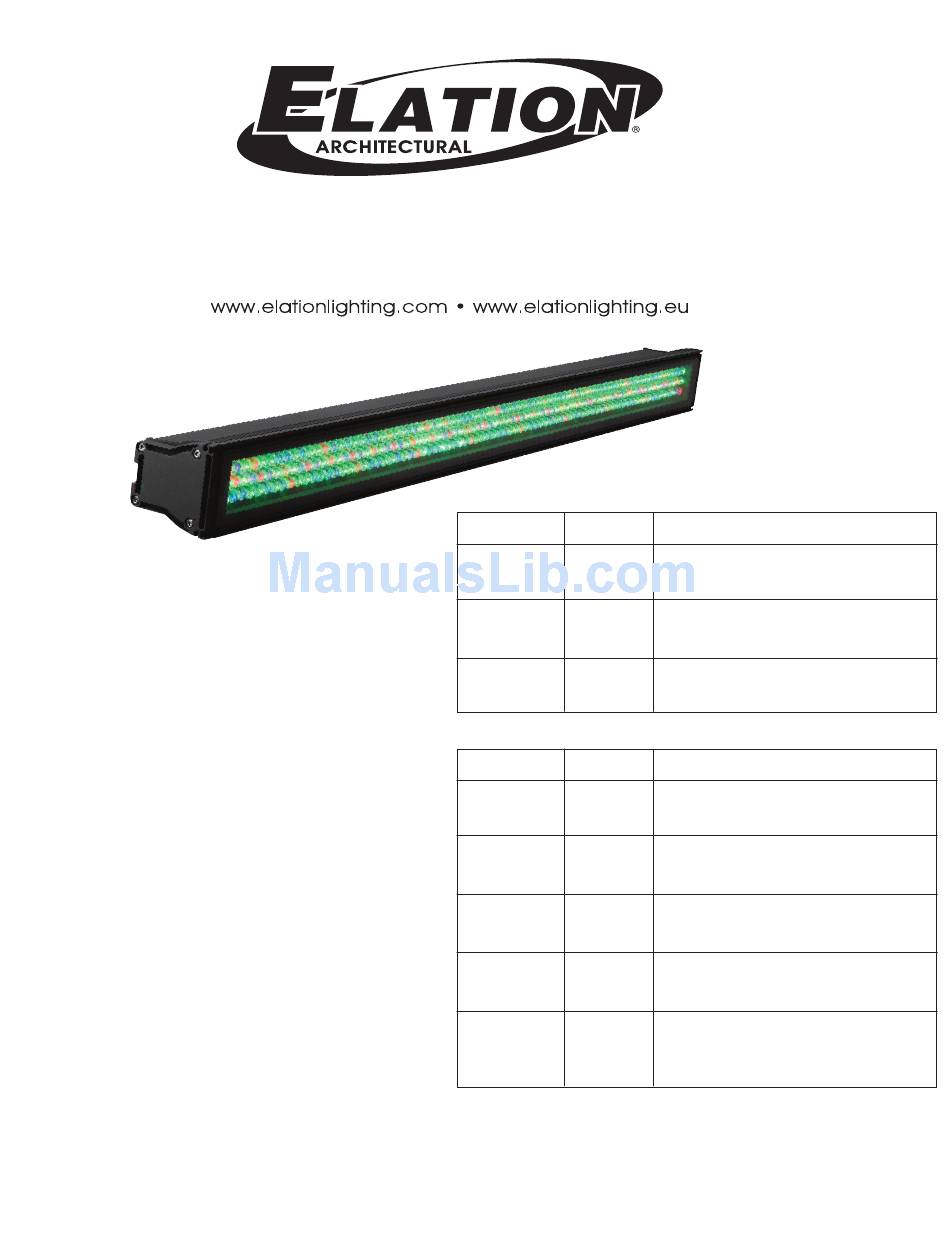

ELAR EXBAR BL SPECIFICATIONS:
Working Position: Any safe working position
Voltage:
Power Consumption:
Weight:
Dimensions: 39.3" (L) x 3.14" (W) x 2.75" (H)
Colors:
Beam Angle:
LEDs:
(48 Red, 102 Green, & 90 Blue)
DMX Channels:
IP Rating:
Warranty:
DMX CHANNEL MODES: There are two DMX modes, a 3 Channel mode and a 5 Channel mode. If
green LED's flash you are in 3 Channel mode, if blue LED's flash you are in 5 Channel mode. Set the
mode before you address the fixture.
Elation® Architectural - www.elationlighting.com - Instruction Manual Page 5
ELAR EXBAR BL
LED RGB BAR
100V ~ 240V
30W
9.2lbs./ 4.2Kgs.
998 x 79 x 69mm
RGB Color Mixing
40 Degree
240 10mm
3 or 5 DMX Channels
IP44
2 Year (730 days)
3 cHAnnEl MoDE
channel Value
1 0 - 255
2 0 - 255
3 0 - 255
5 cHAnnEl MoDE
channel Value
1 0 - 255
2 0 - 255
3 0 - 255
4 0 - 255
5
0 - 10
11 - 255
Function
RED
0% - 100%
GREEN
0% - 100%
BLUE
0% - 100%
Function
RED
0% - 100%
GREEN
0% - 100%
BLUE
0% - 100%
DIMMING
0% - 100%
STROBING
NO FUNCTION
STROBING SLOW - FAST
