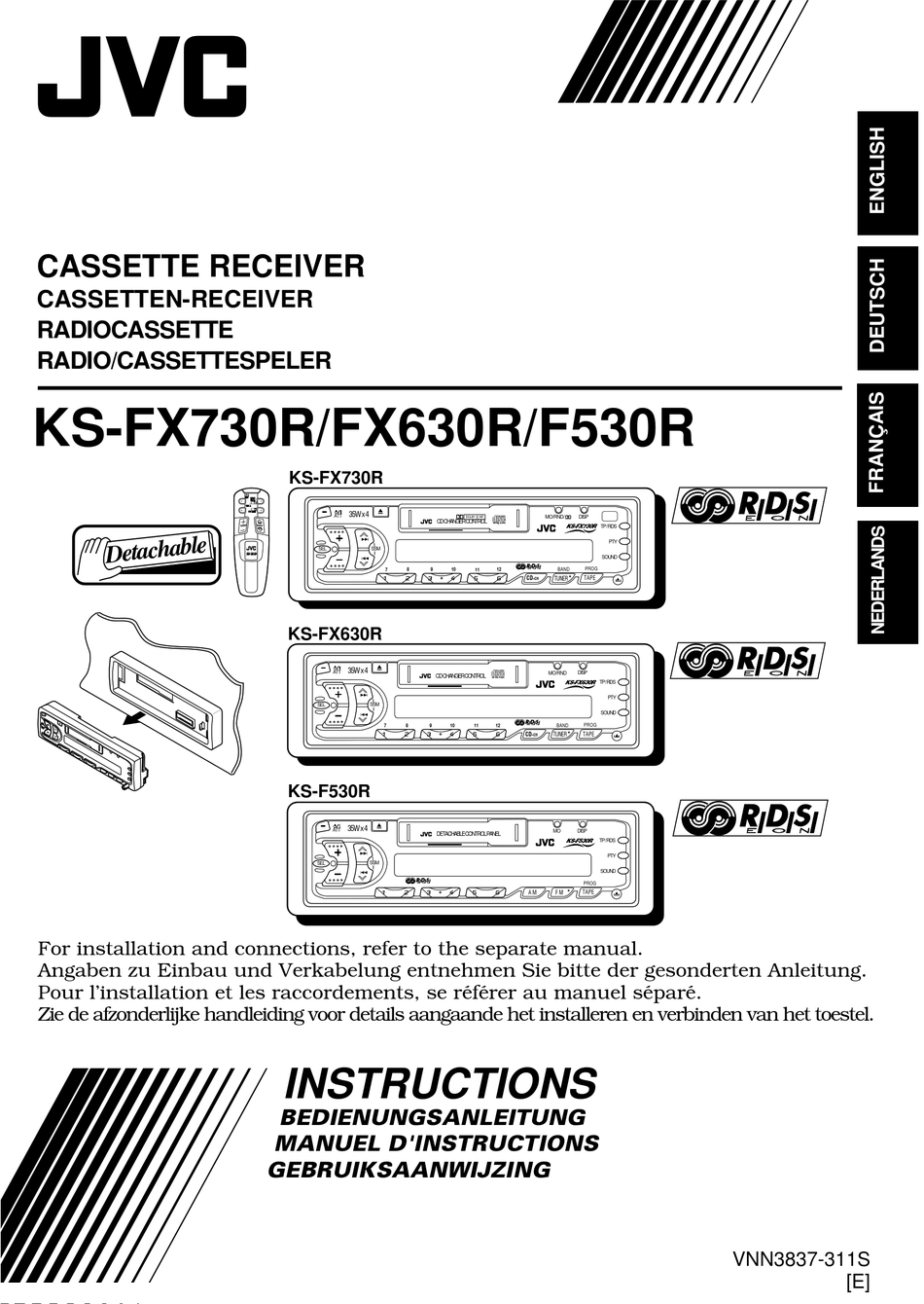

CASSETTE RECEIVER
CASSETTEN-RECEIVER
RADIOCASSETTE
RADIO/CASSETTESPELER
KS-FX730R/FX630R/F530R
For installation and connections, refer to the separate manual.
Angaben zu Einbau und Verkabelung entnehmen Sie bitte der gesonderten Anleitung.
Pour l'installation et les raccordements, se référer au manuel séparé.
Zie de afzonderlijke handleiding voor details aangaande het installeren en verbinden van het toestel.
KS-FX730R
ATT
BAND
PROG
DISC
FUNC
DISC
0
PRESET
35W x 4
ATT
¢
SSM
SEL
RM-RK22
4
7
8
KS-FX630R
0
35W x 4
ATT
¢
SEL
SSM
4
7
8
KS-F530R
0
35W x 4
ATT
¢
SSM
SEL
4
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
DOLBY B NR
MO/RND/
DISP
CD CHANGER CONTROL

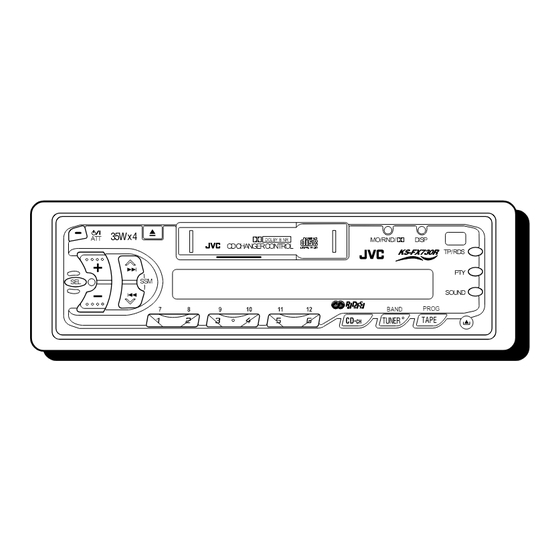

KS-FX730R
TP/RDS
SOUND
9
10
11
12
BAND
PROG
CD-
TUNER
TAPE
CH
MO/RND
DISP
CD CHANGER CONTROL
KS-FX630R
TP/RDS
SOUND
10
BAND
PROG
9
11
12
TAPE
CD-
TUNER
CH
MO
DISP
DETACHABLE CONTROL PANEL
KS-F530R
TP/RDS
SOUND
PROG
F M
TAPE
A M
PTY
5
PTY
5
PTY
5
VNN3837-311S
[E]
Advertisement
Table of Contents
Related Manuals for JVC KS-F530R
Summary of Contents for JVC KS-F530R
- Page 1 Zie de afzonderlijke handleiding voor details aangaande het installeren en verbinden van het toestel. MANUEL D'INSTRUCTIONS GEBRUIKSAANWIJZING KS-FX730R 35W x 4 DOLBY B NR CD CHANGER CONTROL ¢ KS-FX630R 35W x 4 CD CHANGER CONTROL ¢ KS-F530R 35W x 4 DETACHABLE CONTROL PANEL ¢ INSTRUCTIONS BEDIENUNGSANLEITUNG MO/RND/ DISP KS-FX730R TP/RDS SOUND BAND...
-
Page 2: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS BASIC OPERATIONS ... 3 RADIO OPERATIONS ... 4 Listening to the radio ... 4 Storing stations in memory ... -
Page 3: Basic Operations
You do not have to press this button to turn on the power. KS-FX730R/FX630R BAND CD - TUNER KS-F530R Adjust the sound as you want (see pages 18 – 20). To drop the volume in a moment Press ATT briefly while listening to any source. “ATT” starts flashing on the display, and the volume level will drop in a moment. -
Page 4: Radio Operations
To tune in a particular frequency manually: 1 Select the band (FM or AM) For KS-FX730R/FX630R: Press TUNER/BAND repeatedly. For KS-F530R: Press FM or AM. 2 Press and hold ¢ Now you can manually change the frequency while “M” is flashing. -
Page 5: Storing Stations In Memory
KS-FX730R/FX630R BAND TUNER KS-F530R Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No. 1 (lowest frequency) to No. 6 (highest frequency). -
Page 6: Manual Preset
• A previously preset station is erased when a new station is stored in the same preset number. • Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again. KS-F530R Select the FM1 band. Tune into a station of 88.3 MHz. -
Page 7: Tuning Into A Preset Station
Remember that you must store stations first. If you have not stored them yet, see pages 5 and 6. KS-FX730R/FX630R KS-FX730R/FX630R BAND TUNER KS-F530R Select the band (FM1, FM2, FM3 or AM) you want. Select the number (1 – 6) for the preset station you want. KS-F530R... -
Page 8: Using Rds Functions In The Fm Band
Using RDS functions in the FM band RDS (Radio Data System) RDS button To select Network-Tracking mode, press the RDS button for more than one second. • Mode 1 (AF (Alternative Frequencies): on/REG: off): TP/RDS Network-Tracking is activated. Switches between stations belonging to the network being received. Note: •... - Page 9 PTY standby mode Storing your favourite programme type (PTY) into memory (NEWS is factory-preset.) • Press the SEL button to return to the previous mode. ¢ Press the SEL button for more than 2 seconds to enter the preferred setting mode (see page 23).
- Page 10 Setting and operating PTY standby mode • When the PTY button is briefly pressed in the FM mode, the “PTY” indicator is lit during reception of a PTY station and the PTY standby mode is engaged. The PTY name stored on page 9 (for example: “CLASSICS”...
- Page 11 PTY search mode Presetting PTYs in number buttons 1-6 The factory-presets are listed below. POP M ROCK M Select the desired PTY with the + or – button (PTYs already stored flash when they are selected), then press the required number button for more than 2 seconds to store it.
- Page 12 PTY search operation Successful programme search results in the desired PTY station being received so its programme can be heard. • When a PTY station cannot be tuned in, the previous station is received. • After searching, the PTY selected last will be memorized, then displayed first when PTY search is selected again.
- Page 13 PTY codes PTY display DISPLAY N EW S A F FA I R S I NF O S P O RT E D UC A TE D R AMA C ULT U R E S C I ENC E V A RI ED P O P M R O C K M E A SY M...
- Page 14 Other RDS functions EON (Enhanced Other Networks) • When tuning in a broadcasting station transmitting EON data, the EON indicator is lit and the following operations start. EON automatically stores the frequencies of stations from other networks transmitting information codes (TP/TA/AF/PTY/PS (Programme Service), etc.) so they can be mutually used.
-
Page 15: Other Convenient Tuner Functions
Press MO/RND/ (mono/random/Dolby: for KS-FX730R), MO/RND (mono/random: for KS- FX630R) or MO (mono: for KS-F530R) while listening to an FM stereo broadcast. The sound you hear becomes monaural but reception will be improved. Lights when receiving an FM broadcast in stereo. -
Page 16: Tape Operations
TAPE OPERATIONS Listening to a tape Note on One-Touch Operation: When a cassette is already in the cassette compartment, pressing TAPE/PROG turns on the unit and starts tape play automatically. PROG TAPE DOLBY NR BUTTON (only for KS-FX730R) Press the MO/RND/ •... -
Page 17: Finding The Beginning Of A Tune
To fast-forward and rewind a tape • Press ¢ for more than 1 second to fast-forward the tape. When the tape reaches its end, the tape is reversed and playback starts from the beginning of the other side. • Press 4 for more than 1 second to rewind the tape. -
Page 18: Sound Adjustments
SOUND ADJUSTMENTS Selecting preset sound modes You can select a preset sound adjustment suitable to the music genre. Each time you press SOUND, the sound mode changes as follows. SOUND Indication SCM OFF (Flat sound) BEAT Rock or disco music SOFT Quiet background music Light music... -
Page 19: Adjusting The Sound
Adjusting the sound You can adjust the sound characteristics to your preference. Indication Adjust the bass (Bass) Adjust the treble (Treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance LOUD Boost low and high frequencies to produce a well-balanced sound at low (Loudness) volume level. -
Page 20: Storing Your Own Sound Adjustments
Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 18) to your preference and store your own adjustments in memory. SOUND Within 5 seconds Within 5 seconds Within 5 seconds SOUND Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 18. -
Page 21: Other Main Functions
OTHER MAIN FUNCTIONS Setting the clock Selecting 24-hour or 12-hour clock display (Set to 24-hour at the factory) 1. Press the SEL button for more than 2 seconds to set the preferred setting mode (see page 23). 2. Select the “24H/12H” mode with the ¢ 3. -
Page 22: Selecting The Level Display (Only For Ks-Fx730R)
DISP To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows. During tuner operation: Frequency Clock (See page 15 when RDS is on.) • If the unit is not in use when you press DISP, the power turns on, the clock time is shown for 5 seconds, then the power turns off. -
Page 23: Storing Your Own Mode Settings
Storing your own mode settings Preferred setting mode control This mode has been set at the factory, but it can be set to suit your needs. ¢ Select each mode. Select. Hour adjustment Minute adjustment 24/12-hour time display Automatic setting of the clock Display mode Changer display... -
Page 24: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure... -
Page 25: Remote Operations
REMOTE OPERATIONS This section is ONLY FOR KS-FX730R. Before using the remote controller: • Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between. • Do not expose the remote sensor to strong light (direct sunlight or artificial lighting). -
Page 26: Cd Changer Operations
CD CHANGER OPERATIONS This section is ONLY FOR KS-FX730R/FX630R, when used with a JVC CD automatic changer (separately purchased). We recommend that you use one of the CH-X series with your KS-FX730R/FX630R. If you have another CD automatic changer, consult your JVC IN-CAR ENTERTAINMENT dealer for connections. -
Page 27: To Fast-Forward Or Reverse The Track
To fast-forward or reverse the track Press and hold ¢ Press and hold 4 To go to the next track or the previous track Press ¢ of the next track. Each time you press the button consecutively, the beginning of the next track is located and played back. Press 4 the current track. -
Page 28: Selecting Cd Playback Modes
Selecting CD playback modes To play back tracks at random (Random Play) KS-FX730R MO/RND/ KS-FX630R MO/RND Mode RND Indicator RND1 RND2 MO/RND/ MO/RND (For KS-FX630R) Each time you press MO/RND/ FX730R) or MO/RND (Mono/Random: for KS-FX630R) while playing a CD, CD random play mode changes as follows: RND1 RND2 (Random1) -
Page 29: Maintenance
To extend the lifetime of the unit This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below. To clean the heads To keep the tape clean CAUTIONS: •... -
Page 30: Troubleshooting
TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • A cassette tape cannot be inserted. • Cassette tapes become hot. • Tape sound is at very low level and sound quality is degraded. -
Page 31: Specifications
AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 35 watts per channel Rear: 35 watts per channel Continuous Power Output (RMS): Front: 15 watts per channel into 4 , 40 to 20,000 Hz at no more than 0.8% total harmonic distortion. Rear: 15 watts per channel into 4 , 40 to 20,000 Hz at no more than 0.8% total harmonic distortion. - Page 32 VICTOR COMPANY OF JAPAN, LIMITED Printed in Singapore EN, GE, FR, NL 1297MNMUIAJES...
