Da-Mixer Programming Examples - Radio Systems Millenium-A Analog Console Installation And Operation Manual

Radio Systems Millenium-A Console
1 2 3 4 1
Out A
Stereo DA - 1x4
Single stereo input (1/2) to 4 stereo outputs (A/B, C/D, E/F, G/H)
1 2 3 4 1
Out A
Dual Stereo DA - 2x2
Dual stereo input (1/2)+(3/4) each to 2 stereo outputs (A/B, C/D)+(E/F, G/H)
1 2 3 4 1
Out A
Mono 8 Output DA - 1x8
One mono input (1) to 8 mono outputs (A.B.C.D.E.F.G.H)
1 2 3 4 1
Out A
Stereo Summing 8 Output DA - 2x8
One stereo input summed to 8 mono outputs
1 2 3 4 1
Out A
Stereo DA - 1x2 / Mono DA - 1x4
One stereo input (1/2) to 2 stereo outputs (A/B,C/D) and one stereo input (3/4) mixed to 4 mono outputs (E,F,G,H)
1 2 3 4 1
Out A
Stereo Program with 2 Summed Mix-Minus outputs - 1x2 with 3 Mix-Minus
One stereo input (1/2) to 2 DA outputs (A/B,C/D) plus two mix-1 outs (E,F) and two mix-2 outs (G,H)
1 2 3 4 1
Out A
Mono Program with 3 Mix-Minus Outputs - 1 with 4 Mix-Minus
One mono input (1) to 2 DA outputs (A,B) plus three sets of mix-1, mix-2, and mix-3 outputs (C,D/E,F/G,H)

DA-Mixer Programming Examples

Various Output Configurations and Applications
for the Radio Systems DAMIXER Console Option Card

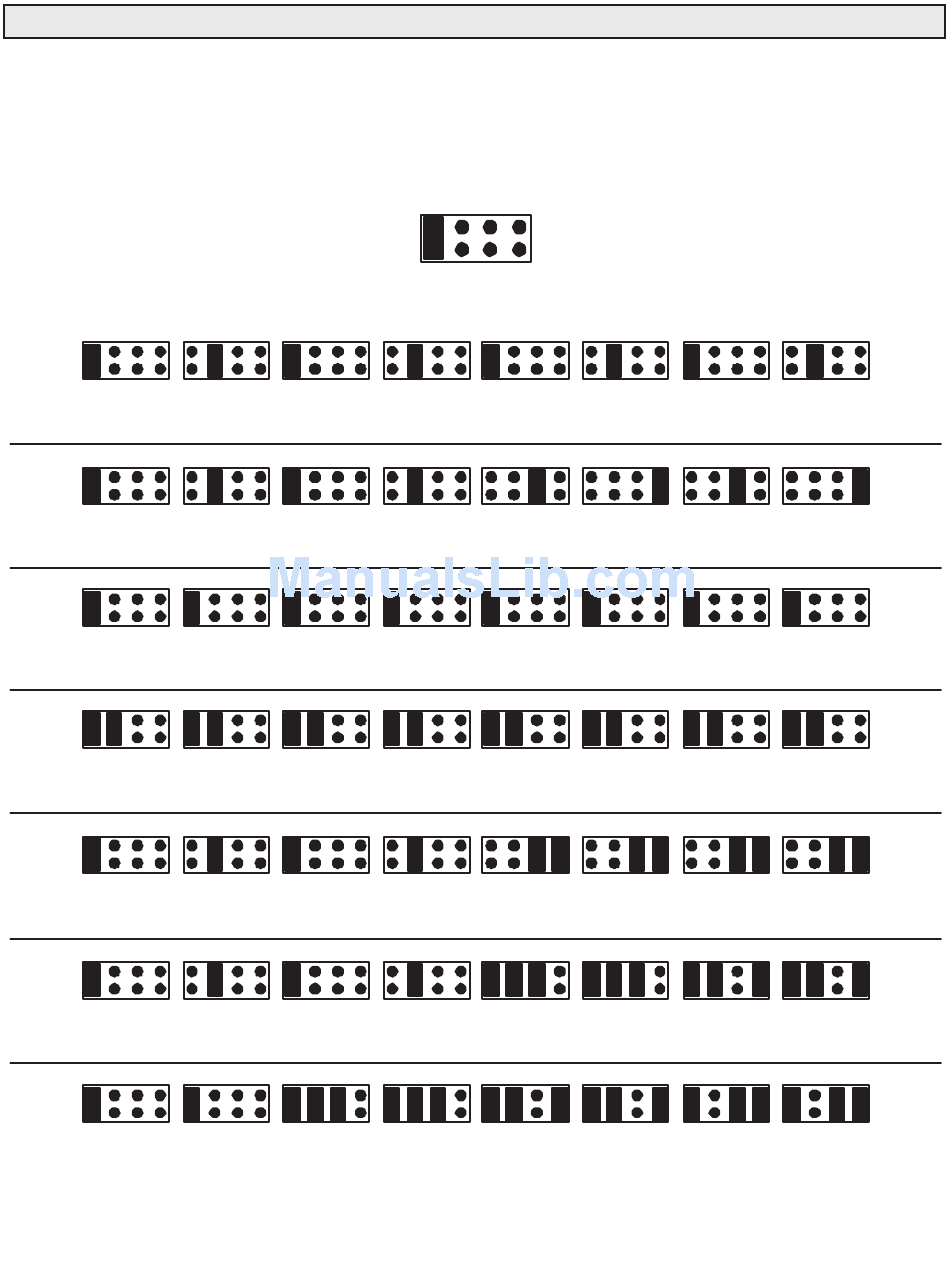

Output Programming Jumpers JU1-JU8
(black over pin 1 indicates user installed jumper)
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
2 3 4 1 2 3 4
Out B Out C
Illustration E-5
1 2 3 4
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out D Out E
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
1 2 3 4 1 2 3 4
Out F Out G
Page 38
