Radio Systems Millenium-A Console
Page 18
Illustration B-3
- "Classic" Version

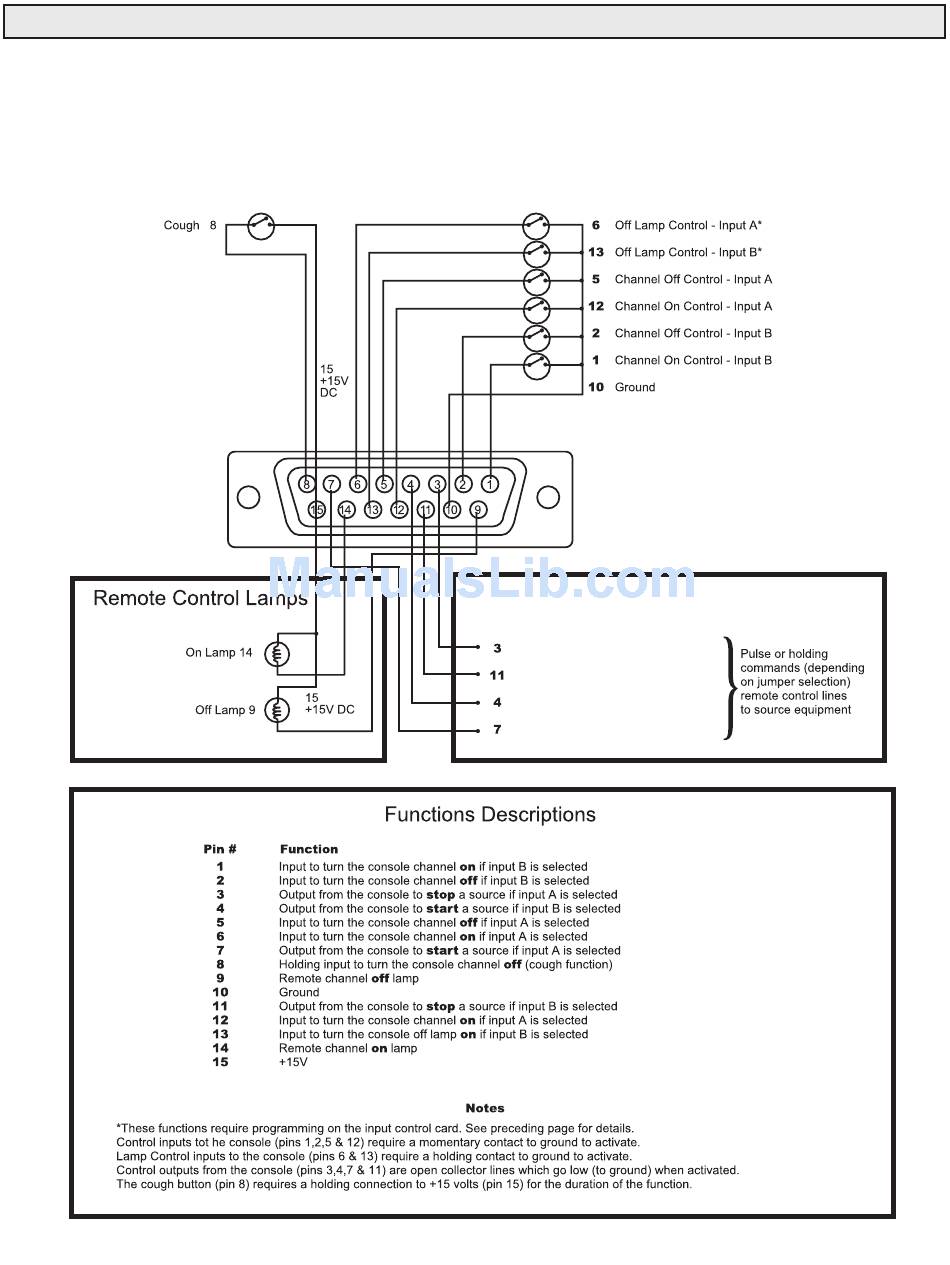

Remote Control Wiring
(for console models shipped after 10/15/10 with control prom PN: 18406)
Note: Jumper JU213 on Input Control Board must be installed to initiate this mode of remote control.
Remote Control On/Off Inputs to the Console Channel
Remote Control Start/Stop Outputs
from the Console Channel
Channel Stop Signal - Input A*
Channel Stop Signal - Input B*
Channel Start Signal - Input B*
Channel Start Signal - Input A*
