F. HEATING AIRFLOW ADJUSTMENTS

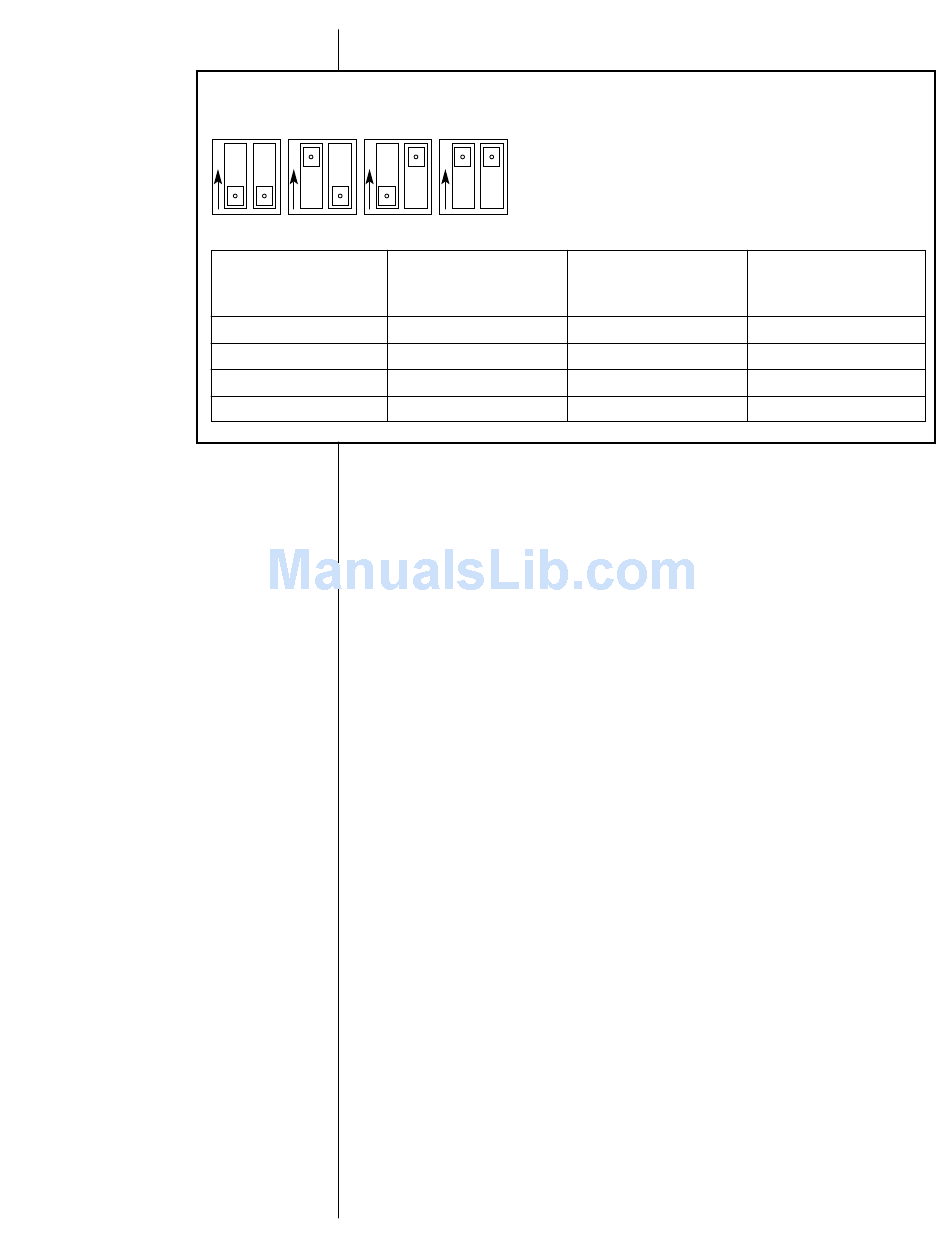

FIGURE 33

HEATING AIRFLOW ADJUSTMENTS

5 6 5 6 5
O O O
N N N
A B
SELECTION
A
B
C
D
Heating airflow may be adjusted +10% or –10% from nominal airflow using switches 5 & 6.
Refer to Figure 33 for switch positions to achieve the desired adjustments in airflow.
NOTE: Continuous fan speed is NOT affected by switches 5 & 6.
G. COOLING DELAY PROFILES
The unit is shipped with a default ON/OFF delay profile for maximum efficiency. This default
may be overridden to maximize comfort by using one of the alternate profiles. ON delay pro-
files are shown in Figure 31.
OFF delay profiles are shown in Figure 32.
IMPORTANT: Blower ON delay profiles are not used in heating mode.
6 5 6
O
N
C D
SWITCH 5
POSITION
OFF
ON
OFF
ON
SWITCH 6
POSITION ADJUSTMENT
OFF
OFF
ON
ON
HEATING
AIRFLOW
NONE
10%
-10%
NONE
