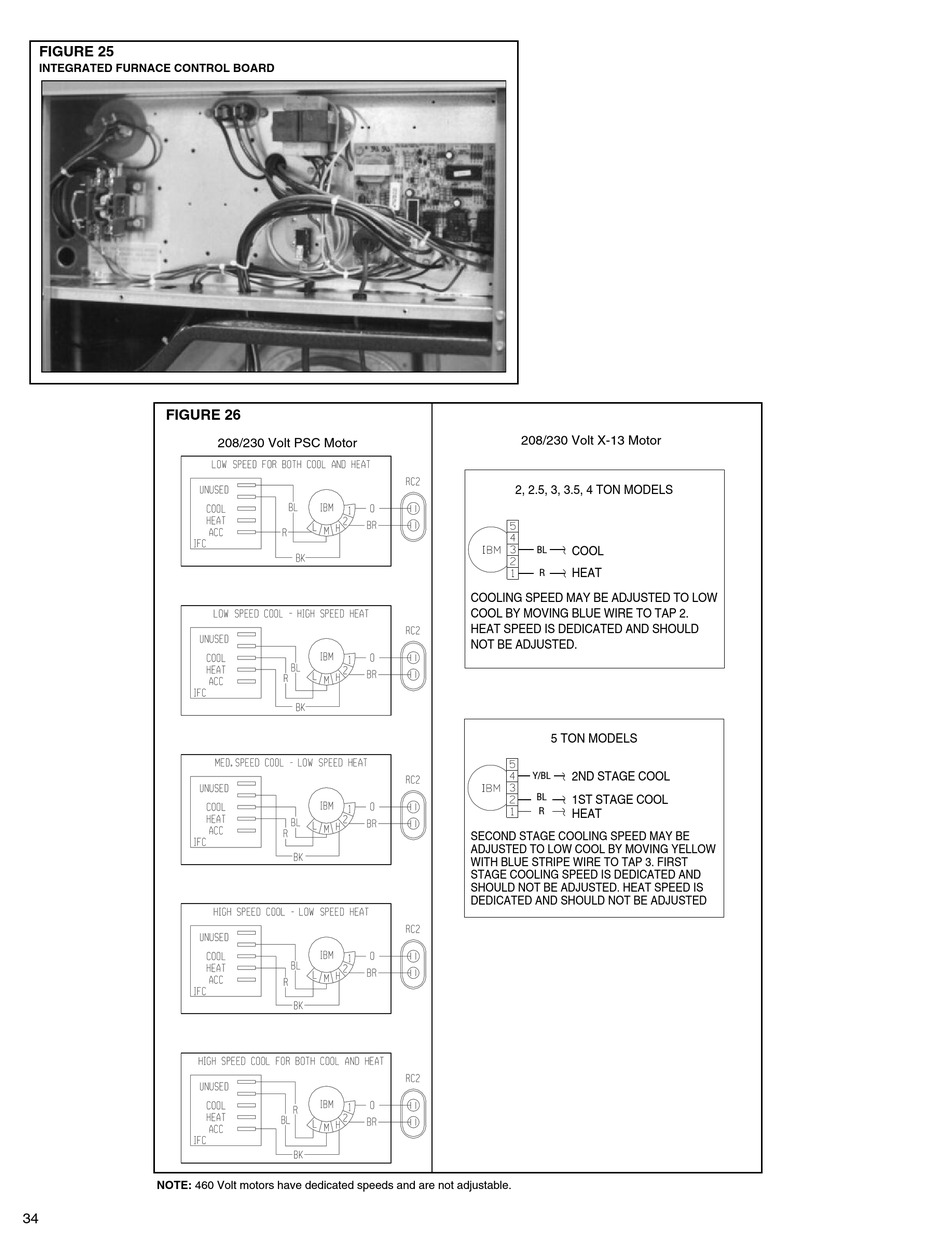

FIGURE 25
FIGURE 21
INTEGRATED FURNACE CONTROL BOARD
INTEGRATED FURNACE CONTROL BOARD
FIGURE 26
NOTE: 460 Volt motors have dedicated speeds and are not adjustable.
34
208/230 Volt PSC Motor
208/230 Volt X-13 Motor
2, 2.5, 3, 3.5, 4 TON MODELS
COOL
BL
HEAT
R
COOLING SPEED MAY BE ADJUSTED TO LOW
COOL BY MOVING BLUE WIRE TO TAP 2.
HEAT SPEED IS DEDICATED AND SHOULD
NOT BE ADJUSTED.
5 TON MODELS
Y/BL 2ND STAGE COOL
BL
1ST STAGE COOL
R
HEAT
SECOND STAGE COOLING SPEED MAY BE
ADJUSTED TO LOW COOL BY MOVING YELLOW
WITH BLUE STRIPE WIRE TO TAP 3. FIRST
STAGE COOLING SPEED IS DEDICATED AND
SHOULD NOT BE ADJUSTED. HEAT SPEED IS
DEDICATED AND SHOULD NOT BE ADJUSTED
