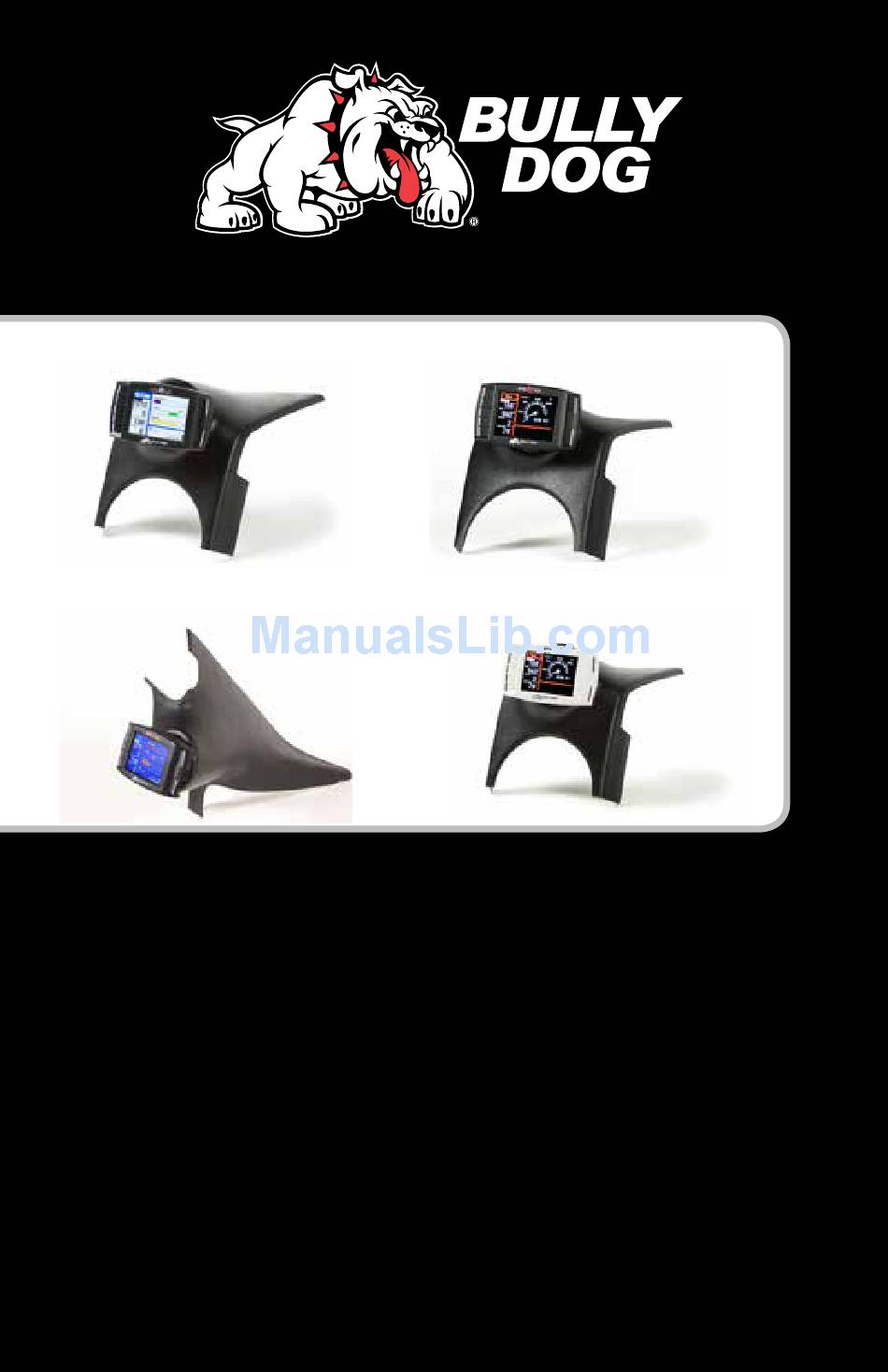

- Page 1 Custom Gauge Pods INSTALLATION MANuAL Triple Dog™ GT Gas Triple Dog™ GT Diesel GT for Hemi Plus WatchDog™ GT Gas (40415), GT Diesel (40420) and GT Hemi Plus (40430) are not legal for sale or use in California on pollution-controlled vehicles.
- Page 2 Introduction These custom gauge pods offer a clean, seamless OEM fit in a convenient and safe location for Bully Dog performance products like the GT and WatchDog. IMPORTANT: A gauge pod adapter (sold separately, part #30420) is required to mount a GT or WatchDog unit with a custom pod mount.
- Page 3 Tools Needed 31302 32304 Phillips screwdriver Phillips and/or flat-head Flat-head screwdriver screwdriver 8 or 10 mm socket 10 mm socket Socket wrench Socket wrench 31303 32305 Phillips screwdriver Torx spin driver 10 mm socket Phillips screw driver Socket wrench T20 Torx bit 31304 32306 Flat-head Screwdriver...
-
Page 4: Gauge Pod Assembly Diagrams
Gauge Pod Assembly Diagrams GT/WatchDog GT Gauge Pod Assembly Diagram Custom Pod Adaptar Custom Gauge Pod (sold separately) Main Harness Plug GT/WatchDog™ Head Unit Main Harness (To OBDII Adapter Plug) When assembling, consider the following: • Will the custom mount be painted? If so, paint the mount BEFORE assembly. - Page 5 PMT Gauge Pod Assembly Diagram Custom Gauge Pod Front Mounting Plate Mounting Screws Back Mounting Plate (Threaded Screw Holes) PMT Cradle Ignition Fuse Wire (To Vehicle Fuse Box) Cradle Cable (To OBDII Adapter Plug) When assembling, consider the following: • Will the custom pod be painted? If so, paint the mount BEFORE attaching cradle assembly.
-
Page 6: Installation
31302: Ford F-Series Super Duty 2003-2007 Bill of Materials Most custom gauge pods come in black. Consider before beginning installation that the custom gauge pod can be painted to match the color of the vehicle interior. The custom gauge pod is made from ABS plastic and can be painted with spray paint found at auto parts stores. - Page 7 5. Pull the A-pillar down to access the screws that secure the grab handle. 6. Remove the two grab handle screws. Pull Back Stock Pillar (Use a Phillips screwdriver.) a. The grab handle will separate from the A-pillar. b. Set the grab handle and screws aside. 7.
- Page 8 31303: Ford F-Series Super Duty 2008-2012 Bill of Materials Most custom gauge pods come in black. Consider before beginning installation that the custom gauge pod can be painted to match the color of the vehicle interior. The custom gauge pod is made from ABS plastic and can be painted with spray paint found at auto parts stores.
- Page 9 4. Place the pod mount in the correct position. (See the figure A.) Place pod mount Figure A 5. Firmly press down on the parts of the pod mount where the adhesive tape touches the dash for a secure attachment.
- Page 10 31304: Ford SD 2011+ Most custom gauge pods come in black. Consider before beginning installation that the custom gauge pod can be painted to match the color of the vehicle interior. The custom gauge pod is made from ABS plastic and can be painted with spray paint found at auto parts stores.
- Page 11 Secure using the supplied screw, not the stock screw. Install Screw 5. Secure the weather stripping, install the side panel and the job is finished. Enjoy your Bully Dog Custom Pod Mount!
- Page 12 32303: Dodge Ram 2003-2009 ® Bill of Materials This model comes prematched to the vehicle so it does not require any paint. Screw 1. Remove the bolt that holds the stock A-pillar in place. a. It is located about halfway down the pillar behind a small oval cover.
- Page 13 4. Peel the clear strip(s) off the adhesive tape on the back of the pod mount. 5. Position the custom gauge pod over the stock A-pillar. (Do not attach or secure it yet.) 6. Route all wiring under the gauge pod (and under the dash, if Line up the Pod necessary).
- Page 14 32304: Dodge Ram® 2010+ Bill of Materials This model comes prematched to the vehicle so it does not require any paint. Screw 1. Remove the bolt that holds the stock A-pillar in place. a. It is located about halfway down the pillar behind a small oval cover piece.
- Page 15 Step 3 is for PMT only. 3. Attach the PMT cradle to the custom pod. (See diagrams on page 4.) 4. Remove the small side panel on the side of the dash. (Use a flat-head screwdriver.) Step 5 is for PMT only. 5.
- Page 16 8. Line up the gauge pod. a. Be careful not to touch the pod to the vehicle (adhesive tape). b. The bottom of the pod should match the bottom of the A-pillar. PMT installs: skip step 9. 9. Make sure that the HDMI cable is sticking out through the gauge hole.
- Page 17 12. Firmly press down on the parts of the pod mount where the adhesive tape touches the stock A-pillar for a secure attachment. 13. Replace the driver’s side dash panel and re-secure the weather stripping.
- Page 18 32305: Jeep JK 2007-2010 Most custom gauge pods come in black. Consider before beginning installation that the custom gauge pod can be painted to match the color of the vehicle interior. The custom gauge pod is made from ABS plastic and can be painted with spray paint found at auto parts stores.
- Page 19 Pull the driver side dash panel off to run cables under the dash to the OBDII Plug. 7. Install Bully Dog A-pillar by guiding the push pin into the appropriate hole and pushing it into place. Secure it with the remaining screw.
- Page 20 T20 Torx bit. 3. Pull upper visor trim down/off. 4. Pull off the stock A-pillar. 5. You should now have exposed the corner frame of your Jeep where you can install the Bully Dog custom gauge pod mount.
- Page 21 Pull the driver side dash panel off to run cables under the dash to the OBDII Plug. 7. Install Bully Dog A-pillar by guiding the push pins into the appropriate hole and pushing it until it locks in place.
- Page 22 33306/33307: GM Sierra/Silverado 2007 (2014 1500 and 2013+ Avalanche Not Included) Bill of Materials Most custom gauge pods come in black. Consider before beginning installation that the custom gauge pod can be Screw painted to match the color of the vehicle interior.
- Page 23 If the vehicle has a speaker attached to the A-pillar, the speaker will need to be removed before the trim piece can be completely removed. 4. To remove the speaker: a. Disconnect the speaker wire. (The plug is located about 4” away from the speaker.) b.
- Page 24 8. Slide the pod over the stock A-pillar until they line up. a. If there is a speaker on the A-pillar, make sure that the speaker in the pod is placed directly over the speaker wire. Position Pod 9. Reconnect the speaker wire. 10.
- Page 25 NOTES...
- Page 26 33302/33303: GM Sierra/Silverado 1999-2007 Bill of Materials Most custom gauge pods come in black. Consider before beginning installa- (4) Plastic Rivets tion that the custom gauge pod can be painted to match the color of the vehicle interior. The custom gauge pod is made from ABS plastic and can be painted with spray paint found at auto parts stores.
- Page 27 with a speaker, make sure that the speaker hole lines up so that it is directly over the speaker in the stock A-pillar. 6. Firmly press against the parts of the pod mount where the adhesive tape touches the stock A-pillar for a secure attachment.
- Page 28 NOTES...
- Page 29 NOTES...
- Page 30 Doc.# 31303-99 V1.3 See More Products from Bully Dog Technologies Sensor Docking Station Gauge Pod Adapter Part #30420 Accessories Prefilters Cleaning Kit ut in a Free Technical Support at: 866-bullydog (866-285-5936) See More at: bullydog.com...
