Summary of Contents for Bully Dog 50 State GT Diesel

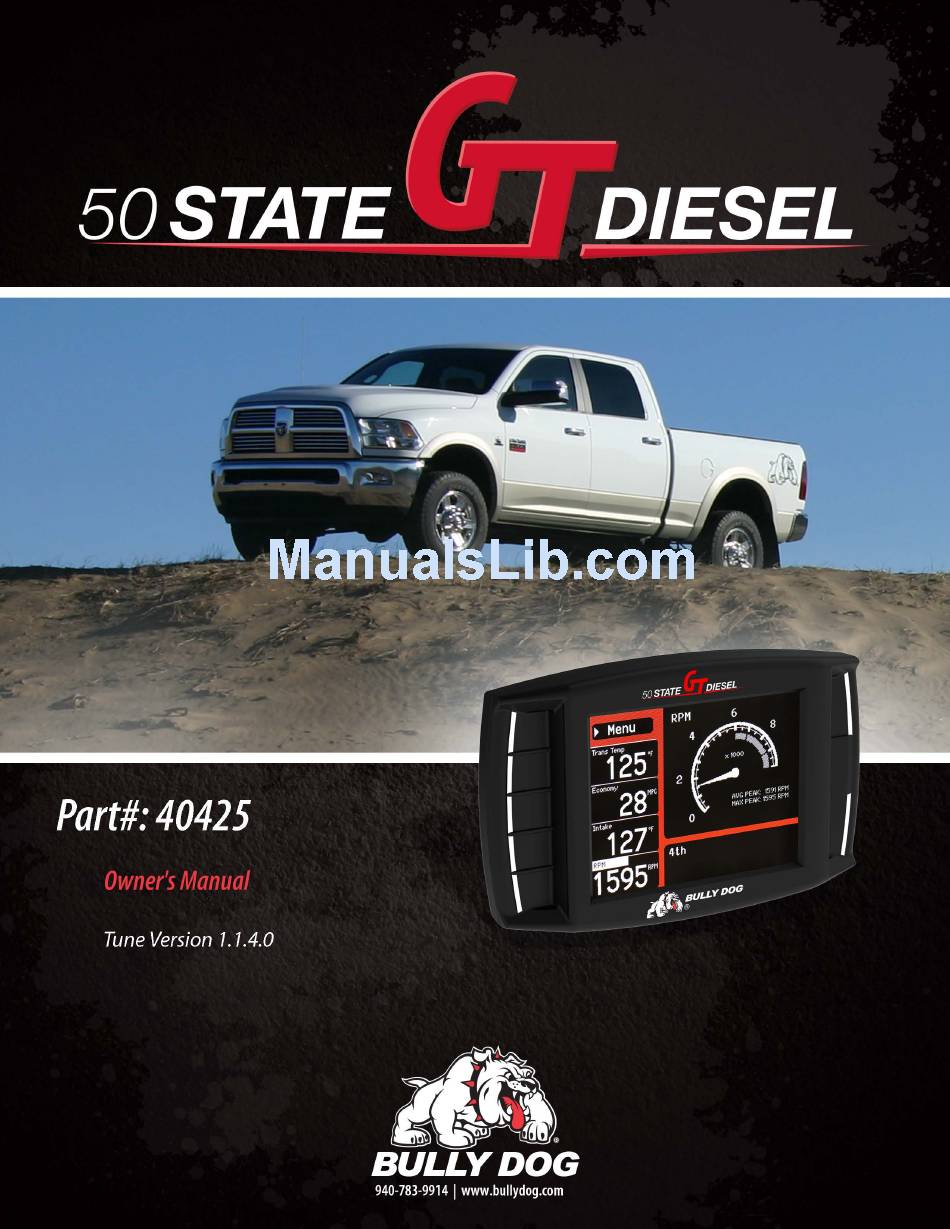

  • Page 1 Doc version 1.1...

  • Page 2: Table Of Contents

    CONTENTS Vehicle Specific Download Features ......16 Speed Limiter ................16 Calibrate Speedometer ............16 Important Warranty Information .......16 Updating the GT ..........17-24 Overview .................17 FAQs about Updating ..................17 Basic Steps to Update (Short Version) ............18 What You Need to Update the GT ...............18 Updating (Detailed Steps for Windows) ......19-22 Troubleshooting Updating Problems ........23 Updating (Detailed Steps for Apple) ........24...

  • Page 3: About The Gt

    3. Install the tune to your vehicle. See page 29 for more information. IMPORTANT NOTE: You MUST uninstall your Bully Dog engine tune before taking your vehicle in for ANY type of service. There are also other important times to uninstall the tune.

  • Page 4: Parts List

    PARTS LIST Your GT package should include the following items: 1. The GT Head Unit 5. Fuse Tap Part Number: 40425-1 6. Fuse Spade 2. OBDII Adapter Plug Part Number: 40400-105 7. Micro SD Card Part Number: 40410-10 8. Micro SD Card Reader 3.

  • Page 5: Parts Description

    PARTS DESCRIPTION The GT Head Unit The main component of the Gauge Tuner is the head unit. It has the screen and the buttons that allow you to access all of the functions and features of the tuner. GT Front Side: The GT has seven capacitive touch but- tons.

  • Page 6: Parts Description

    5. HDMI Port: Connects the OBDII adapter plug to the GT Head Unit. 6. Pyrometer/Sensor Docking Station Port: Connects the GT to optional sensors including pyrometers or the Bully Dog Sensor Docking Station. 7. Future Peripherals: Not currently in use – may be used to connect additional devices in the future...

  • Page 7: Button Navigation

    BUTTON NAVIGATION 1: Press the top left button to enter the Main Menu, also use this button to exit menus. FUNCTION Only for On-the-Fly Vehicles Press any of the four buttons on the FUNCTION 4: FUNCTION 2: Power Level Up left side of the GT adjacent to one of the vehicle pa- Power Level Down rameters on the screen will display that parameter in...

  • Page 8: The Main Screen

    THE MAIN SCREEN This picture of the GT main screen has the Driving Coach selected for the Large Gauge option. You can change which gauge is featured in the upper right corner of the main screen by holding down one of the buttons on the left side of the GT until the gauge type that you want is shown.

  • Page 9: Available Options - All Models

    4. When you are done, use the top left button to go back to the Main Menu and General Display. NOTE: All of the gauge types may not be available through your vehicle’s diagnostic port (OBDII port). This fact is out of the control of Bully Dog; however, Bully...

  • Page 10: Gauge Setup

    This option shows the coolant temperature. The temperature infor- This gauge option shows the information from sensors connected to mation is used in defuel and warning level settings to help prevent the 0-5V auxiliary inputs on the Bully Dog Sensor Docking Station. damage to the engine. Throttle...

  • Page 11: Performance Testing

    This feature offers drag racers the ability to complete the 1/4 Mile and 0-100 KPH performance tests. You can also download saved tests from your GT to your computer and analyze it using the Bully Dog Performance Testing Software. The software is available by free download from www.bullydog.com.

  • Page 12: Driving Coach Setup

    Driving Coach Setup The Driving Coach is a special feature designed to be your fuel economy dashboard and information center. It provides real-time visual and audio feedback about driving efficiency and where energy is being lost. The driving coach will help you understand the optimal conditions for your particular vehicle through real-time observation, giving you the power to maximize your vehicle’...
  • Page 13 Next: Go to a safe place with little to no traffic where you can perform a speed test. Make sure the speed limit is at least 60 mph. Here are two different ways to find out your vehicle’s actual speed: Method 1: GPS 1. Use a GPS device to compare your actual speed and the speed displayed on the Bully Dog. 2. Calculate the Percent Difference by using this formula:...
  • Page 14 Driving Coach Setup (continued) Checking Average Fuel Economy It is important to check the accuracy of the average economy readout on the GT at least once every changing season. There are many reasons to check and adjust the average fuel economy, here is one example: The fuel delivered to gas stations during the winter contains an average of 1.3% less energy than the fuel delivered in warmer seasons.

  • Page 15: Vehicle Setup

    Engine Coolant Temp Level are available to be used. Boost Level Turn this setting off or add a Bully Dog boost sensor if your vehicle does not have a factory turbo boost. Transmission Temperature NOTE: If the GT is stuck in Engine Warm Up mode, change this Turn this setting off or add a Bully Dog boost sensor if your vehicle does setting to a lower temperature or turn the feature off.

  • Page 16: Show Settings

    Show Settings The Show Settings screen will show you information about your vehicle, the GT, and your current vehicle settings. This screen will also indicate if the GT tune is currently installed or not installed on a vehicle. Uninstall Download This option will allow you to uninstall the tune from your vehicle.

  • Page 17: Vehicle Specific Download Features

    See page 36 for more information about GT resets and the required fee. For pricing information and as- sistance in having a damaged GT unit repaired, contact technical support. See page 44 for more information about contacting technical support. You can find more specific warranty information at the following page on the Bully Dog website: http://www.bullydog.com/warranty.php...

  • Page 18: Updating The Gt

    This often immediately fixes the problem! 3. Bully Dog engineers are constantly working to expand the features and vehicles that the GT is able to support. Once a new vehicle or option is unlocked, they make sure it is available to everyone by including it in the updated software version.

  • Page 19: Basic Steps To Update (Short Version)

    UPDATING THE GT Basic Steps to Update (Short Version) You can find a more detailed description of this process on page 22. 1. Run the Update Agent. 2. Connect the Micro SD card to your computer. 3. Choose the vehicle application and let the Agent search. 4.
  • Page 20 • If it is already installed, skip to step 5. You can see if it is already installed by checking your Start Menu under All Programs. The Update Agent will be listed under the Bully Dog Technologies folder: Windows XP...
  • Page 21 UPDATING THE GT (DETAILED STEPS FOR WINDOWS) The following instructions are intended for Microsoft Windows computers. 4. You can download the installation file at http://www.bullydog.com/update_agent.php • Save the file first, then run it. (If you try to run the file without saving, your computer will generate an error message.) (Mozilla Firefox®...
  • Page 22 - Or you can stop the previous instance of the Update Agent and open a new one – either option is a winner. • If you have already installed the application in the past, it should be listed under Bully Dog Technologies in your computer’s list of All Programs. Just double-click the Update Agent icon in that folder to let it start.
  • Page 23 UPDATING THE GT (DETAILED STEPS FOR WINDOWS) 8. NOTE: This step varies depending on how you have connected the Bully Dog to your computer. • If you have the Micro SD card connected to the computer: - Disconnect it from the computer and put it in the GT.

  • Page 24: Troubleshooting Updating Problems

    Why isn’t the Update Agent recognizing that the Micro SD card is connected to my computer? The SD card is missing an important file. You can get the file and fix the problem by following these steps: 1. Go to the Bully Dog website. 2. Click on the link for the Update Agent page.

  • Page 25: Updating (Detailed Steps For Apple)

    • Connect the GT with the Micro SD card installed by using a USB cable. Do not use the HDMI cable to update the GT. 3. Format your Micro SD card to the FAT file system. 4. Go to the Bully Dog website and click on the link for Update Agent. • There are two locations for this link: •...

  • Page 26: Physical Installation

    PHYSICAL INSTALLATION Be sure to check the list and description of included parts on pages 4-6. Brief Preview This is a quick list of the basic installation steps. You can find more specific information about each step in the next section. 1.

  • Page 27: Detailed Instructions

    PHYSICAL INSTALLATION Detailed Instructions 1. Connect The OBDII Adapter Plug to the OBDII Port. See page 6 for a detailed description of the different parts of the OBDII adapter plug. • Find the OBDII port in your vehicle. As shown in the illustration, the specific location of the port can vary between different vehicles, but it is always somewhere under the driver’s side dash.

  • Page 28: Using The Universal Windshield Mount

    PHYSICAL INSTALLATION Detailed Instructions (Continued) 3. Run the HDMI cable under the dash. This step helps you install the HDMI cable in a way that is discreet, stylish, and that helps to protect the GT 1. Plug one end of the HDMI cable into the port on the OBDII adapter plug. 2.

  • Page 29: Additional Gt Mounting Options

    ADDITIONAL MOUNTING OPTIONS Bully Dog has created alternative mounting solutions which will allow you to mount your GT in even more convenient locations. RAM Mirror-Mate Part Numbers: 31600 and 33600 The RAM Mirror-Mate mounting kit will allow you to mount your GT directly beneath your rearview mirror.

  • Page 30: Installing The Tune

    You might need to connect to a computer to get special files from technical support if you encounter problems during the install. Do NOT install if you do not have a way to contact technical support. DO make sure that you can contact Bully Dog technical support. Technical support is open Monday-Friday, 8 a.m. – 5 p.m., Mountain Standard Time.

  • Page 31: Important Preparation Steps

    Make SURE the Tuner is Ready DO complete an online update with the Bully Dog Update Agent. This is a free application available on the Bully Dog website.

  • Page 32: How To Install The Tune

    INSTALLING THE TUNE 1. Complete the Pre-install steps • Update GT using Update Agent -pages 17-24. • Physical Installation -pages 27-28. • Install tune preparations -pages 29-30. 2. Turn your key to the Run position. (DO NOT start the engine) 3.

  • Page 33: Troubleshooting Installation Problems

    INSTALLING THE TUNE Troubleshooting Installation Problems Error During Installation 1. Make note of the code number and all information displayed on the screen. 2. Disconnect and update your GT. See page pages 17 for instructions. 3. Make sure that you have disconnected all aftermarket electronics and completed all of the important preparation steps. See pages 29-30 for more information.

  • Page 34: Uninstalling - Returning To Stock

    UNINSTALLING - RETURNING TO STOCK What does this mean? “Uninstalling the tune” and “returning to stock” are different ways to describe the same thing: writing the original (stock) information to the engine computer so it uses the settings that it used before you installed your GT. Doing this also sends a signal to the GT to let it know that it is no longer installed on a vehicle, which will allow you to install the tune at a later time.

  • Page 35: How To Return To Stock

    UNINSTALLING - RETURNING TO STOCK How to Return to Stock There are two ways to return your vehicle to stock. IMPORTANT NOTE: Both methods are very similar to installing the tune to your vehicle, so you should make the same preparations and take the same precautions. This means choosing a good time and place, making sure the battery is charged, pulling fuses (if necessary), disconnecting aftermarket electronics, etc.

  • Page 36: How Do I Know If The Gt Is (Still) Installed

    UNINSTALLING - RETURNING TO STOCK How Do I Know if the GT is (Still) Installed? There are two ways to check if the tune is currently installed: Main Screen 1. Look at the lower right corner of the main display screen. 2.

  • Page 37: More Information

    MORE INFORMATION Pyrometer Calibration What is Pyrometer Calibration? Pyro calibration is a way to find the best temperature to use for the GT defueling or warning setting for your vehicle. This will help you prevent heat damage to your engine. How to Calibrate Your Pyrometer 1.

  • Page 38: Windows Update

    MORE INFORMATION Windows Update Windows XP 1. Click the Start button. 2. Click All Programs 3. Click Windows Update 4. Windows Update will check to see if you have the current version of the updating software:...
  • Page 39 MORE INFORMATION Windows Update (continued) Windows XP 5. If your computer doesn’t have the most recent update software, your browser will display a pop-up bar like the one shown below: If your computer shows that message, click on the bar and then click Install ActiveX Control: If your computer doesn’t show...
  • Page 40 MORE INFORMATION Windows Update (continued) Windows XP 9. At this point, you have two choices: • Express: Choose this option if you prefer an automatic update and have the time to wait for all of the updates to finish downloading and install- ing.
  • Page 41 MORE INFORMATION Windows Update (continued) Windows XP 12. Your computer will then download and install the updates for the Windows Update software. When your computer has finished downloading and installing the updates, you will be prompted to restart your computer. You must restart in order to proceed to the next step in the update process.
  • Page 42 MORE INFORMATION Windows Update (continued) Windows XP 14. After checking for the latest updates for your computer, Windows Update will display a list of updates that are available. First, scroll down and clear any of the High Priority updates that may already be selected.
  • Page 43 MORE INFORMATION Windows Update (continued) Windows XP 17. Once the .NET Framework 3.5 Service Pack is selected, click on Review and Install Updates. 18. Make sure that the .NET Framework is the only update selected, then click Install Updates.
  • Page 44 20. Once the .NET installation is complete, click Restart Now. 21. Once your computer has restarted, the update process is Complete! You can now install and run the Bully Dog Update Agent and update your GT. For more information about updating your GT, see pages...

  • Page 45: Contacting Technical Support

    CONTACTING TECHNICAL SUPPORT Technical Support is open Monday-Friday, 8 a.m. – 5 p.m., Mountain Standard Time. The phone number to contact technical support is (940)783-9915. You should have all of the following items available when contacting technical support: • Your GT tuner •...

  • Page 46: Faqs/Troubleshooting

    FAQS/TROUBLESHOOTING Engine Warm-Up Mode My engine is stuck in warm-up mode and I can’t change the power level. What is going on and how can I fix this? This is a feature that we have included with the GT to help people, particularly fleet managers, ensure that their vehicles are properly warmed up before additional power level settings can be used.
  • Page 47 FAQS/TROUBLESHOOTING My Vehicle Won’t Start after Returning to Stock My truck won’t start after I uninstalled the tune. How do I fix this? Follow these steps to get your truck running with the tune uninstalled: 1. Make sure that you have completed all of the preparation steps on page pages 29-30. 2.
  • Page 48 FAQS/TROUBLESHOOTING DPF Delete Will the GT delete my DPF? No. Bully Dog does not offer DPF delete. Bully Dog will never offer DPF delete. Crazy Larry Can I get the Crazy Larry tune on my GT? No. Crazy Larry is no longer available. Due to EPA regulations, it will not be offered again.
