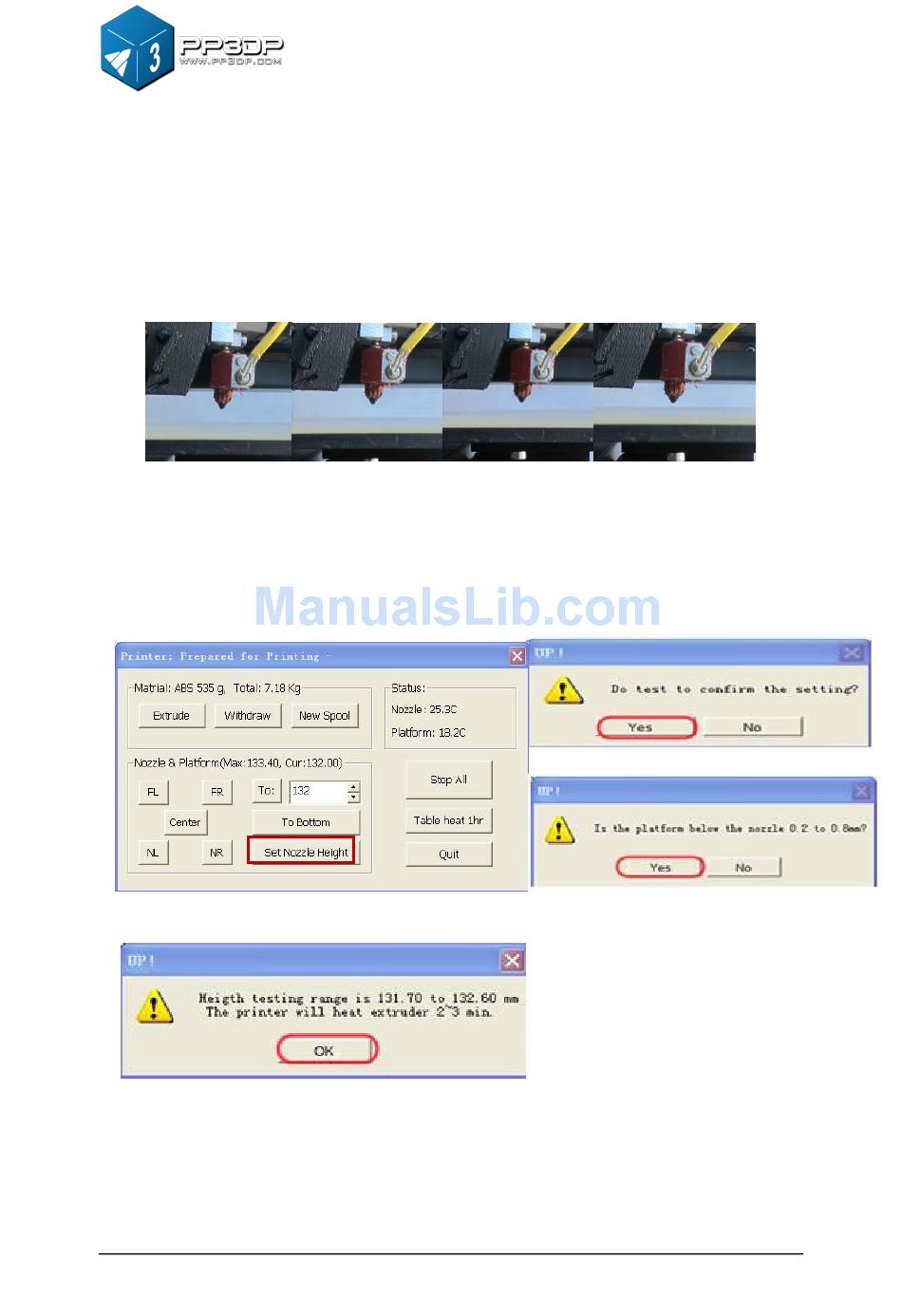

3 - Check the distance between the nozzle and the platform. If, for example,
the platform appears to be about 7mm away from the nozzle, increase the
number in the text box to 130 and click the ―To‖ button. Note that we have
only increased the number by 3mm instead of 4mm. The reason for this is
that we do not want to crash the platform into the nozzle, so we want to
increase the height in smaller and smaller increments as we get closer to
the nozzle.
4 - Once you are about 1mm away from the nozzle, start increasing the
number in the text box by 0.1mm increments and click the ―To‖ button.
Repeat this until you get to within 0.2mm of the nozzle.
5 - Click the ―Set Nozzle Height‖ in the Maintenance dialogue to do test.
Click ―OK‖, the system will beep, and then the nozzle begins heating.
6 – After three beeps, the system will print a line for you to check if the height is ok.
