PP3DP UP! mini User Manual page 13

(1) Connect the power adapter to the power interface.
(2) Insert the end of ABS filament into the Filament tube.
(3) Start the UP! Software (refer to the software install procedure in 3.1.2 if you
have not already installed it), and press the ―Extrude‖ button in the
―maintenance‖ dialogue box, which is accessed from the ―3D Print‖ menu.
(4) After the printer nozzle has warmed up to 260° C, the printer will beep. Push
the filament into the hole at the top of the extruder head and hold it there
with some gentle pressure until the extruder motor grabs it and starts
pulling it through the extrusion head. The extruder will then automatically
extrude a thin filament of material.
UP! mini 3D Printer User Manual

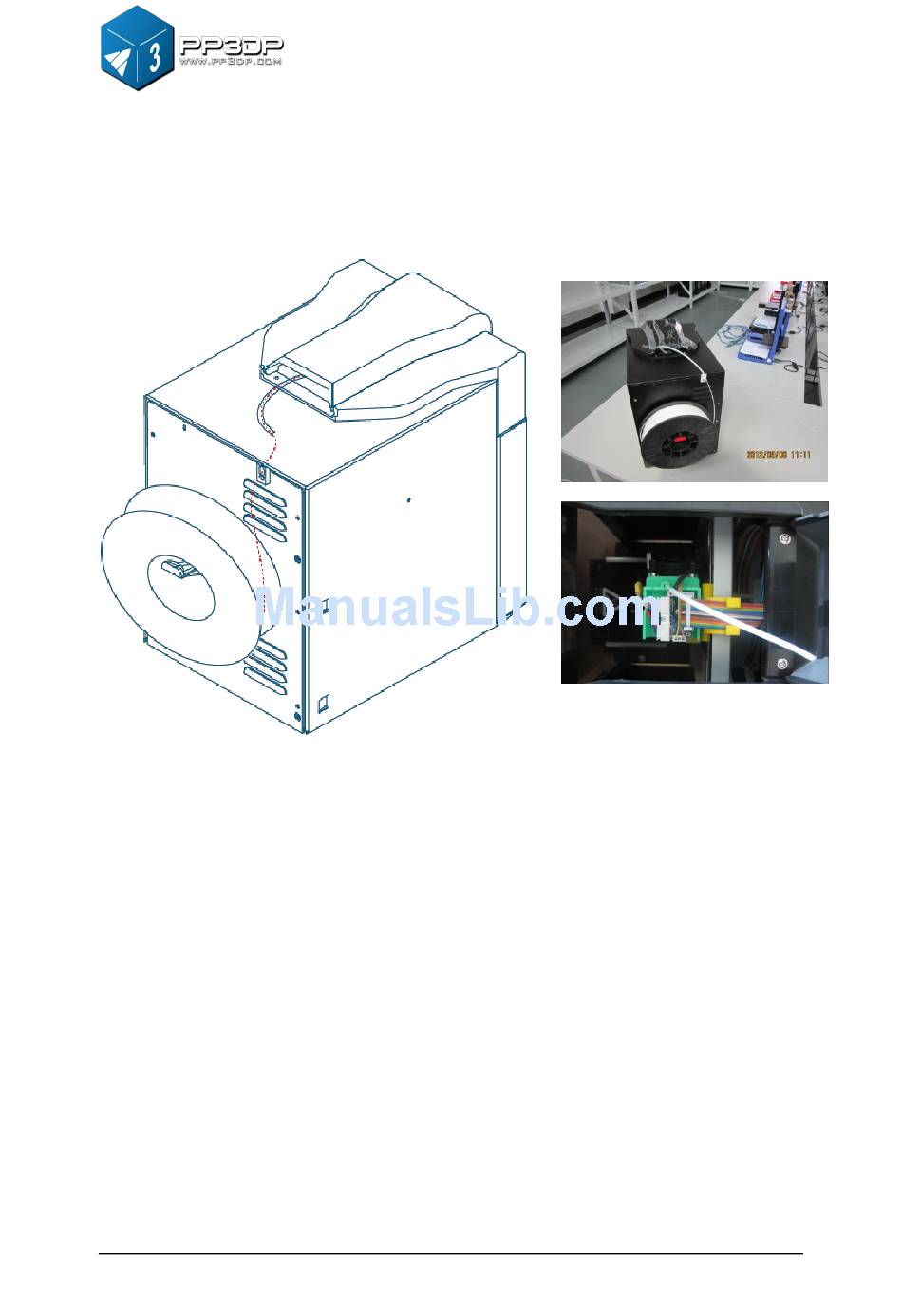

Material Extrude (top view)
3.Opeation
12
