Page 1: Installation Guide

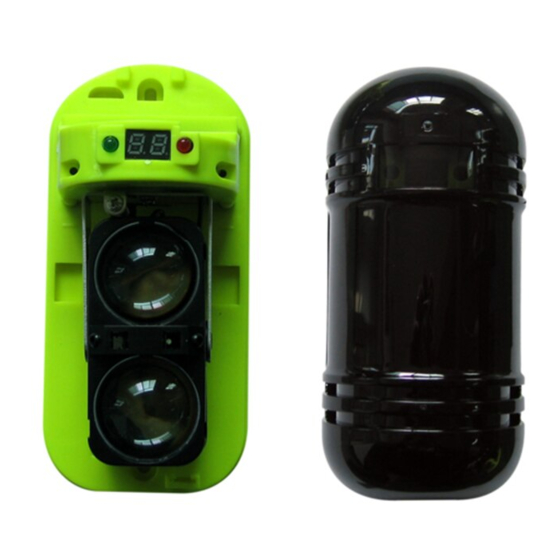

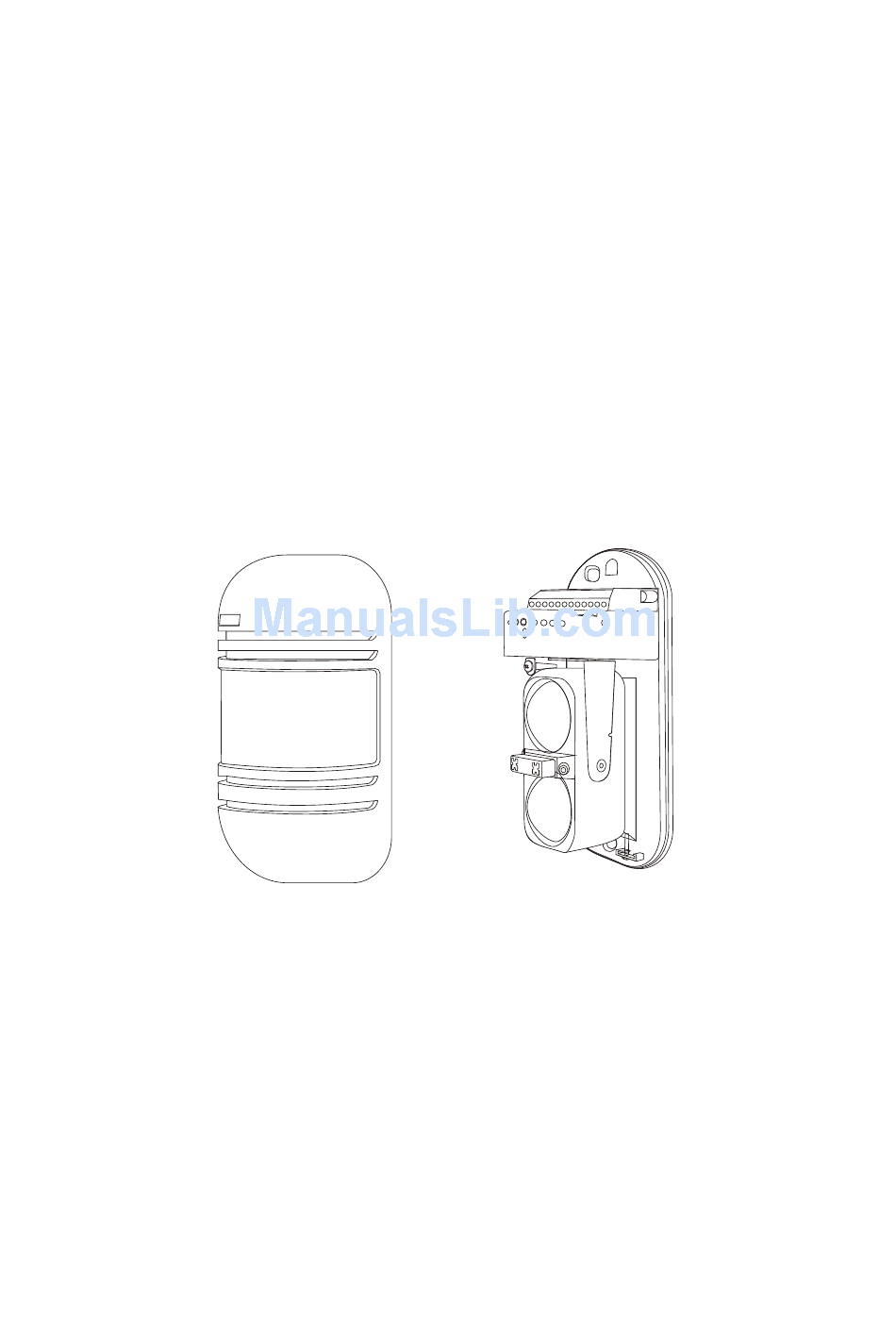

ABT 2 BEAMS ACTIVE PHOTOELECTRIC DETECTOR WITH DIGITAL FREQUENCY COVNVERSION INSTALLATION GUIDE... -
Page 2: Technical Parameters
Indoor 120m 180m 240m 300m No. of beams 2 beams Detection mode 2 beams blocked simultaneous Optical source Infrared digital pulse beam Response speed 50-240ms Alarm output Relay contact output: NO. NC contact rating: AC/DC30V 30AMax Power supply DC13.8-24V 15W Operation temperature &... - Page 3 The base is unstable Direct sunlight, lamplight etc. Horizontal 180 ( 90 ) Vertical 50mm Style Guarding distance Beam spread diameter 0.6m ABT-20 ABT-30 0.7m 50mm ABT-40 1.0m ABT-60 1.5m ABT-80 1.8m Detection distance...
-
Page 4: Setting Procedure
.Setting procedure 2.Attach the paper stencil onto the location 1.Remove the cover 3.Put the cable through the where the equipment is to be mounted, and hole for wiring. drill the holes in the positions on its mark. Wiring hole 5.Connect the cable to the wire terminal. 4.Fix the main body onto the wall RECEIVER 15mm... - Page 5 8.Put on the cover after adjusting the response time of the beam. Installation of fixed bracket 8.3.Fasten the base-plate 8.1.Drill a hole on the bracket and to the bracket. extend out the cable from it. (Back-to-back installation guiding diagram) 8.2.Remove the cover. .
- Page 6 . Beam response time adjustment Please see the diagram to adjust the response time of the receiver. Usually, the time set shall be less than the time when the intruder crosses the guarding area. High speed:1 (6.9m/s) Fast running:2(4m/s) Fast walking(1.2m/s):3 Normal walking(0.7m/s):4 Slow walking(0.4m/s):5 .Physical test...
- Page 7 Trouble checking Fault Cause Solution Check the power wiring The LED of the transmitter doesn't light up Power failure (open circuit, short-circuit, etc.) The LED of the receiver doesn't light up Power failure (open circuit, short-circuit, etc.) Check the power wiring 1.By reflecting, or light from other sources enter the 1.Remove the reflecting object or change the receiver...
