Heiman HM-807DWP Manual

PRODUCT INTRODUCTION
This product is digital infrared motion detector
stability. It adopts dual sensor signal processing technology and
provides superhigh detection and anti false alarm
performance,and MCU processing ensuring its reliability from
the design basis. Any intruder passing through the detection area,
the detector will automatically detect the movements of human
body and pets.If Any dynamic movement, it will send the alarm
signal to the mainframe.This product is suitable for the safety in
residential areas, villas,factories, shopping malls, warehouses and
office buildings etc.
PRODUCT PROFILE
TECHNICAL SPECIFICATIONS
Consumption Current:≤18mA
Detecting Distance: 12 m
Detecting Angle: 110 degrees
Detecting Speed:0.3m/s~ 3m/s
PIR sensitivity adjustment availability
Adjustable immunity
Self-Testing Time: 60s
Alarm Delay Time: 3s/30s optional
Alarm Indication: Red LED with on / off availability
Sensor: Double element pyroelectrie infrared sensor
Operating Temperature: -10°C ~ +50°C
Wired connection feeding 12 volts
Environment Humidity: Max 95% RH (no
Anti-RF interference:10MHZ~1GHz 20v/m
Installation Mode: Wall or corner mount
Alarm Output: NC/NO optional, contact rated at DC28V 100mA
Tamper Output: NC, contact rated at DC28V 100mA
FEATURES
● EN 50130 certified
● MCU control, high efficience of anti false alarm
● Dual Sensor technology,real pet-immunity
● Immunity(25kgs)
● Dual-mode Temperature Compensation
● Dynamic Thresholds Adjustment Technology
● Bipolar Pulse Count Adjustable
● Anti White Light Interference, Anti RF Interference
● Fresnel Lens
● Alarm Output N.C./N.O. Optional
● Alarm Delay Time Optional (3s/30s)
● SMT Manufacture Technology, Stabler Performance
● Wall mounted
Digital Passive Infrared Motion Detector Manual
with high
congelation)
1
INSTALLATION CONDITIONS
1. For good pet immunity performance, the installation height is
recommended not lower than 2m. Mount the detector flat on a
wall or in a corner. Do not angle it downwards.
2. Avoid placing the detector in outsides, near a air-conditioner or
a heat source, in direct sunlight, beneath a rotating object and
near fluttering curtains. Do not place objects about 1.8m high
in front of the detector, that a pet can jump onto and pet
immunity will be reduced.
3. Surface of installation should be firm with no vibration.
4. Mount the detector where an intruder passes easily.

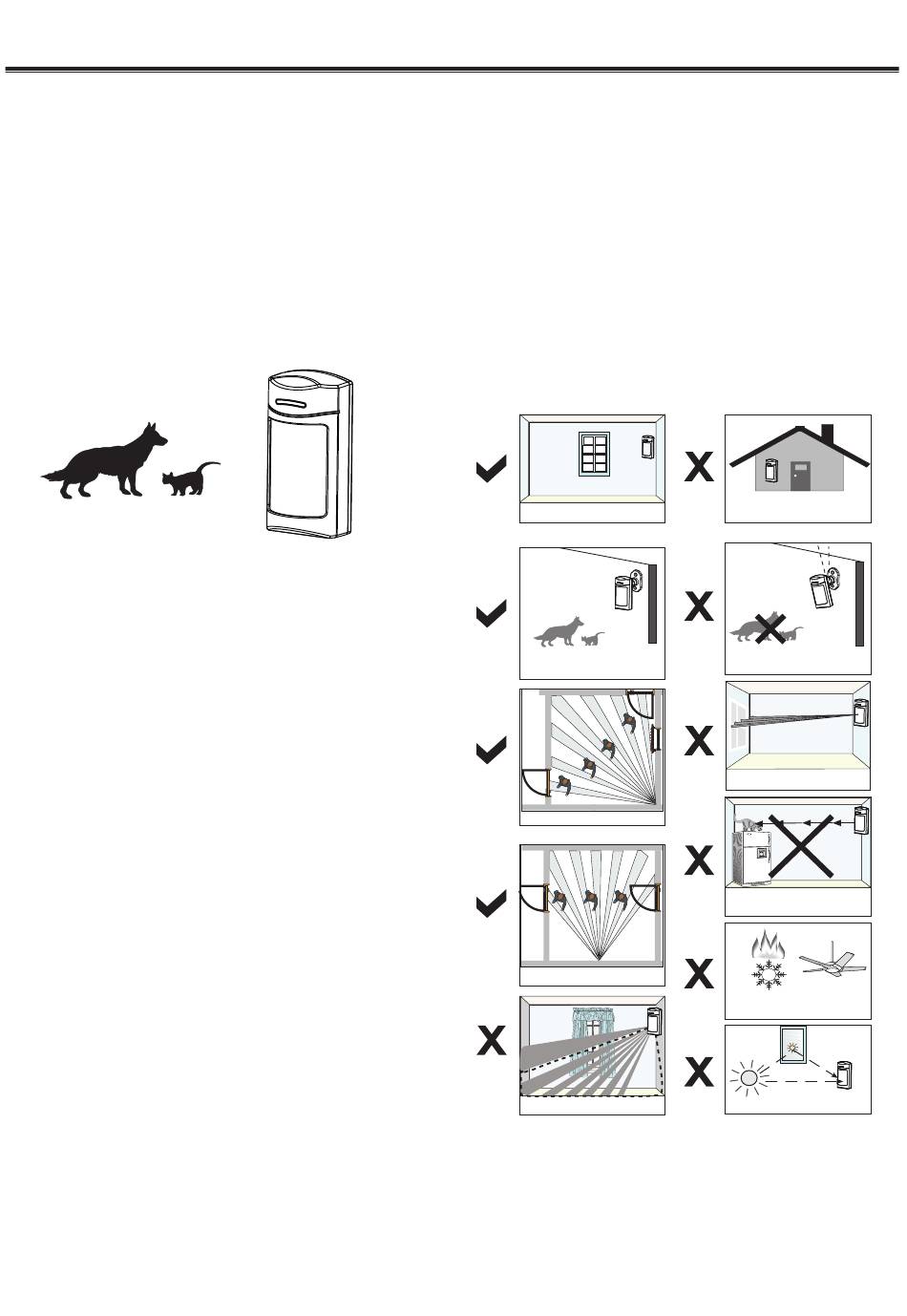

INSTALLTION HINTS
Mount indoor
Mount flat on a wall
Mount in a corner
Wall mount
Mount near fluttering curtains
WIRING INSTRUCTIONS
Red wire: positive DC power
Black wire: negative DC power
Yellow wire: tamper output
White wire: alarm output
Outdoor
＞0°
Angle downwards
Pet immunity loss
Aiming at windows
With objects (1.8m) ahead
Pet immunity loss
Mount near
heat or cold sources,
beneath rotating objects
Mount in direct sunlight
