Heiman HM-621THS User Manual

PRODUCT INTRODUCTION

This product is a combination unit of smoke and carbon
monoxide detector. The smoke chamber using the principle of
smoke particles reflecting infrared lights can accurately detect
the early smoke of a fire. And the gas detection adopts a carbon
monoxide electrochemical sensor to ensure stable and constant
performance. When concentration of the leaked carbon
monoxide or smoke density reaches the given alarm level, the
detector LED flashes red and buzzer gives out alarm sounds.
Besides suitable for early warning and protection of carbon
monoxide leakages or fires in houses, villas, factories,
shopping malls, warehouses, office buildings etc. indoor
places, this unit has a subtle shockproof design, which makes it
also suitable for vehicle use.

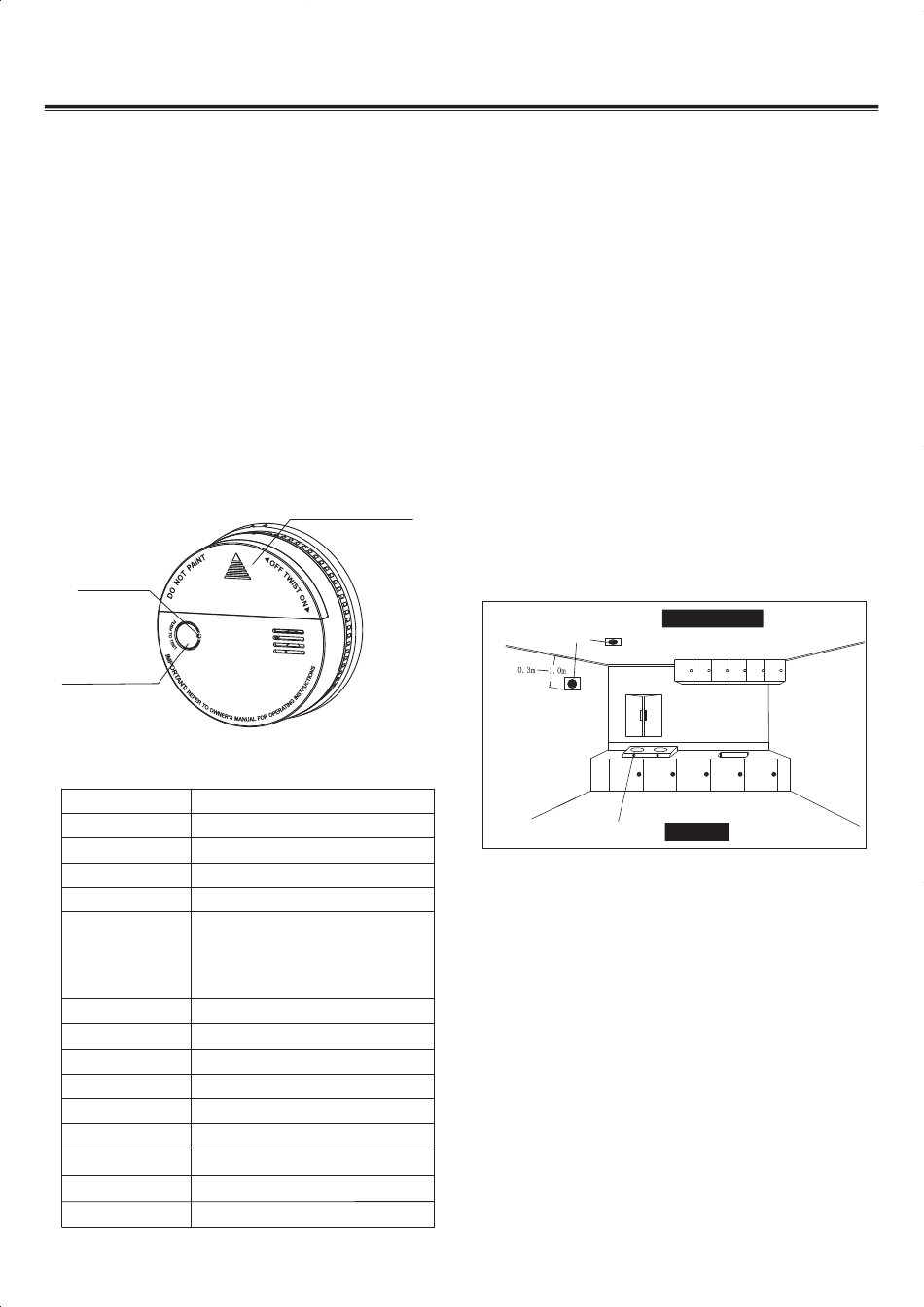

PRODUCT PROFILE

LED Indicator
Test & Hush Button

TECHNICAL PARAMETER

Operating Voltage DC 3V (2pcs AA alkaline batteries)
Static Current
Alarm Current
Warm-Up Time
Hush Time
40ppm≤X＜75ppm, alarm after 75 minutes
75ppm≤ ＜
CO Alarm Level (X) 200ppm
< 40ppm, alarm reset
Smoke Sensitivity
Alarm Indication
Failure Indication
Sound Level
Alarm Audios Smoke: Di - Di - Di... ; CO: DiDiDiDi...
Working Environment -10°C ~ +50°C, Humidity≤95RH
Installation Mode
Dimension
EN50291, UL217, GB15322.5-233
Execute Criterion
Battery Compartment
≤10uA
≤25mA
3 minutes
10 minutes
X 200ppm, alarm after 25 minutes
≤ , alarm after 30-50 secs (sensor
X
stabling time)
0.16dB/m(±0.05dB/m)
Red LED
Yellow LED
≥85dB/3m
Wall or Ceiling mounted
Φ110*45mm
User Manual of Smoke and Carbon Monoxide Detector

FEATURES

● Adopts MCU Processing
● Smoke and Carbon Monoxide Dual Detection
● Different Smoke and CO Alarm Audios
● Manual Test / Auto-Reset
● Hush Function
● Low Voltage Compensation
1
● Temperature Compensation
● Low Battery Warning
● Auto-Check Malfunction in Smoke Chamber
● Anti-RF Interference (20V/m-1GHz)
● Dustproof, Mothproof, Anti-light Interference
● SMT Manufacture Technology with High Reliability
● Shockproof Design Suitable for Vehicle Use

INSTALLATION

1. Since Carbon Monoxide is a little lighter than air and smoke
generated in fires will rise in the air, normally the detector is
installed in a higher position. For wall mounted, install at
about 0.3-1.0m from ceiling. For ceiling mounted, normally
install at the ceiling center of the protected area (refer to the
following image)
DE T E C T O R
G A S B UR N E R
2. Fix the detector base into a wall or ceiling with screws and
fasten the detector head on the base.
3. While installing at home, keep the detector away from your
gas stove to prevent flame roasting. Avoid installing in
places with heavy oil or smoke that may cause false alarm or
block the gas convection holes and influence the detector
sensitivity. Also do not install the detector near to exhaust
fans, windows, doors and in places with great vapor in
bathrooms.

OPERATING PRINCIPLE

1. Insert 2pcs 1.5V AA batteries into the battery compartment.
The detector enters into warm-up status. LED flashes Green.
2. About 3 minutes later, the flashing Green LED goes out. And
the detector goes into normal working status.
flashes Green once every 30s, indicating normal battery
supply.
1
M201-1EVer1.0
C E I L I N G
F L O O R
The LED
