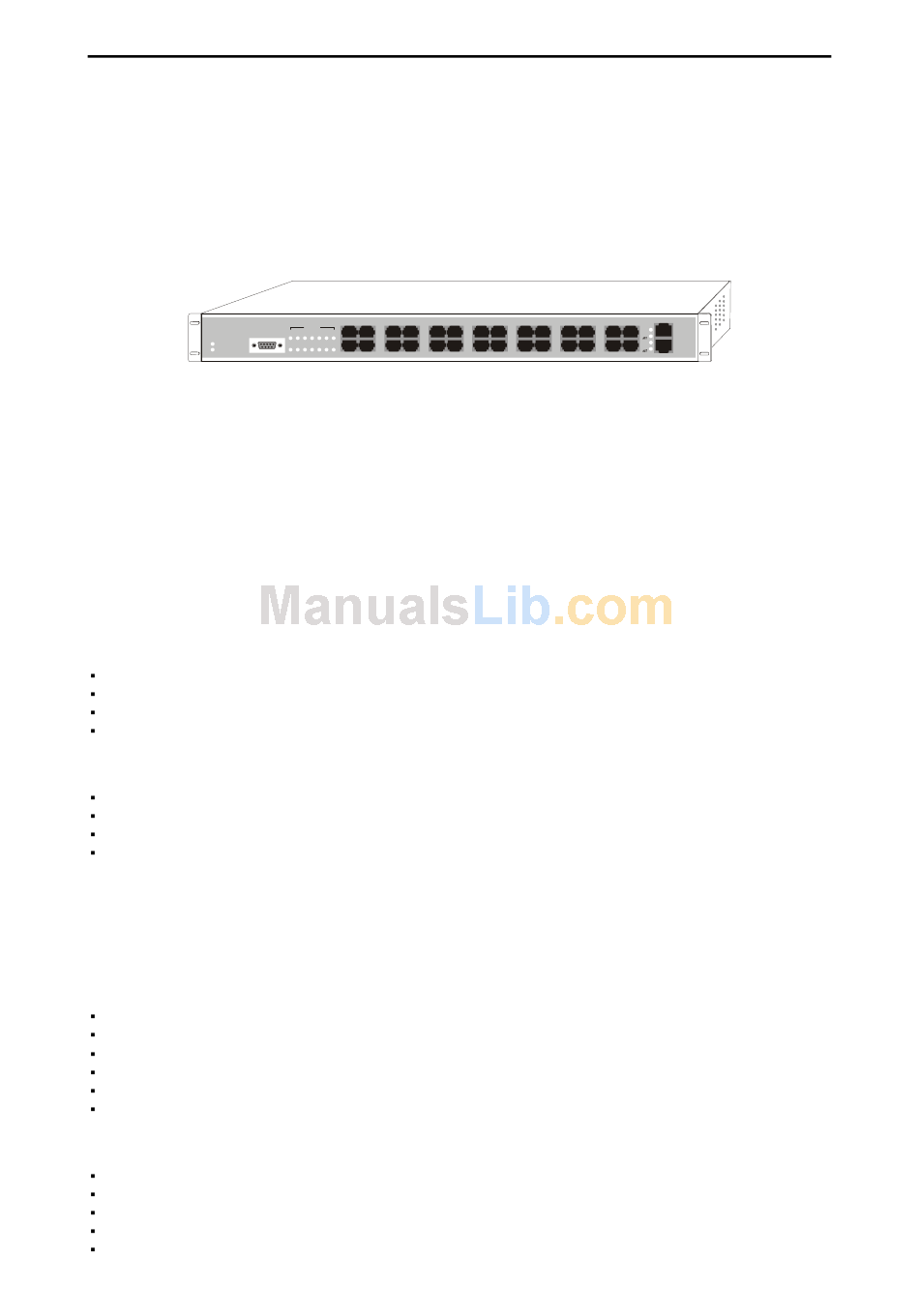

Abocom HSM1402 Specification Sheet

HSM1402
Manageable 14-port HomePNA Plus 2 Fast Ethernet Switch

INTRODUCTION

The manageable 14-port HomePNA Switch is a device utilizing the existing telephone wiring within a building to
deliver data and does not interrupt regular voice services. Data and voice run simultaneously on the same pair of
wire without any rewiring. It is suitable for hotel/motel, multi-tenant apartment, multi-tenant commercial,
multi-tenant student dorm, campus and local loop. This switch supports a concentrator mode, where each of the
ports is dedicated to directly communicate with the Uplink/downlink ports. This mode ensures that data from any of
ports 1-14 cannot be directly seen by another port. This feature, therefore, provides data privacy to subscribers.
Console
Power
Warning
The manageable 14-port HomePNA Switch is designed to eliminate unnecessary network traffic, and relieve
congestion by delivering dedicated bandwidth for each of the ports. Able to begin operating after power-up, the
switch will learn addresses automatically, and begin forwarding packets at full wire-speed to any of the outputs.
Additionally, this switch comes with the full network management functions such as SNMP, Web-browser, Telnet,
Windows GUI tool and Local Console management. Moreover, the switch can be operated stand-alone or can be
cascaded to stack up with multiple units to provide low cost network solutions.

SPECIFICATIONS

Network Connection

Totally 14 HomePNA 1.1 ports, each port has 2 RJ-11 connectors
One has built-in low-pass filter for PBX/PSTN connection
The other is passing-through for HomePNA client connections
The transmitting power for each HomePNA port can be adjusted
The receiving threshold for each HomePNA port can be adjusted
2 10/100 Fast Ethernet ports
Compliant with IEEE802.3/802.3u, 10/100BASE-TX standard
Full Duplex supported
IEEE 802.3x compliant Flow Control supported for full-duplex
Advanced MDI/MDIX auto crossover feature
1 Console port for out-of-band management

Switching and Management Function

Switching functions
Layer 2 switching based on MAC address
Store and Forward packet switching
Broadcast Storm rate filtering
8K MAC address table supported
Port-based VLAN supported(up to 14 VLAN groups)
Overlapping VLAN supported

Management functions

SNMP MIB I management agent supported
Windows GUI configuration/management program supported
Local console management supported
Telnet management supported
Web management supported
LINE1 PNA1 LINE3 PNA3 LINE5 PNA5
HomePNA
1 3 5 7 9 11 13
2 4 6 8 10 12 14
LINE2 PNA2 LINE4 LINE6 PNA6
PNA4
- 1 -
LINE7 PNA7 LINE9 PNA9 LINE11 PNA11 LINE13 PNA13
100
LINK/
100
LINK/
LINE8 PNA8 LINE10 PNA10 LINE12 PNA12 PNA14
LINE14
UPLINK
(Management)
DOWNLINK
EtherNet
