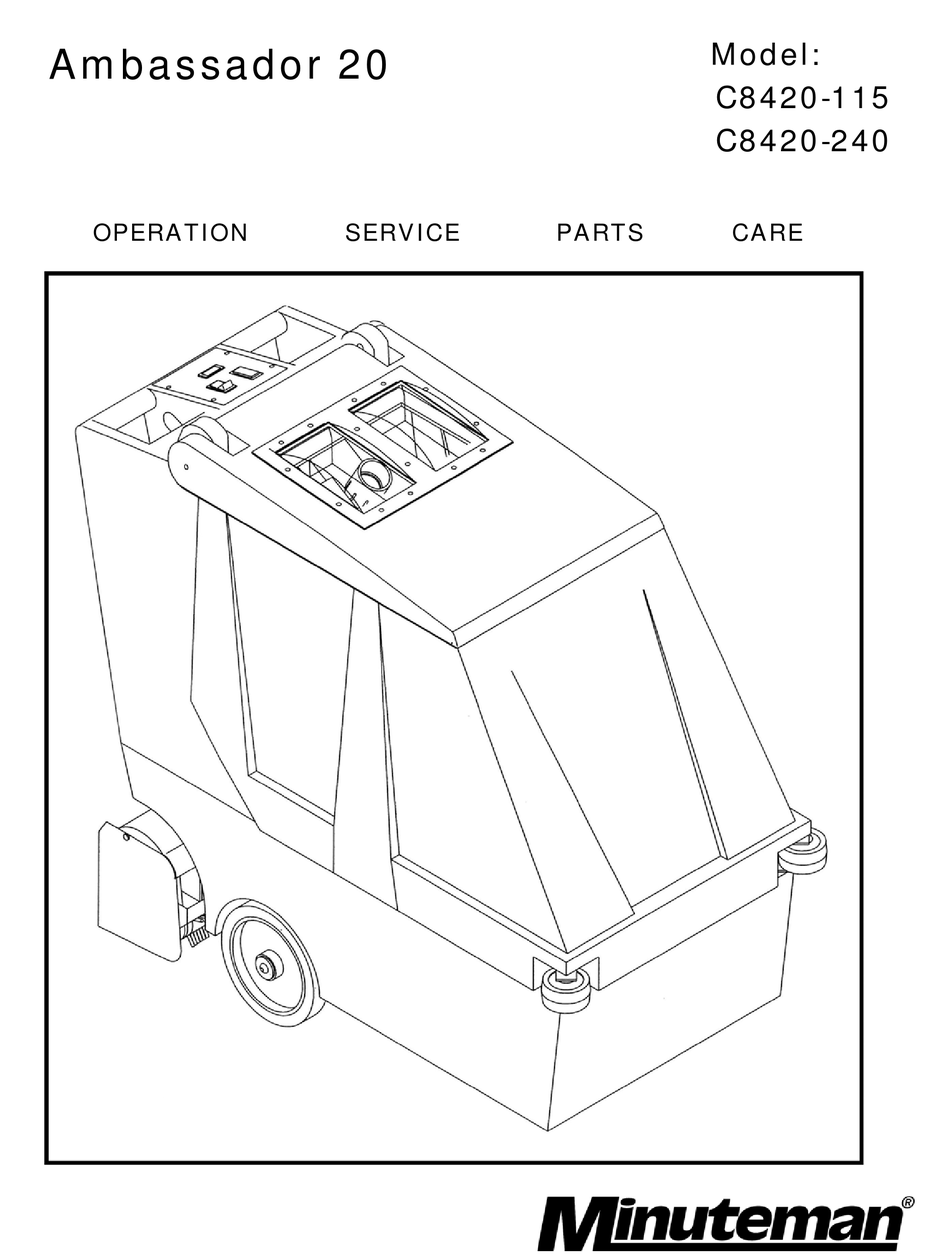

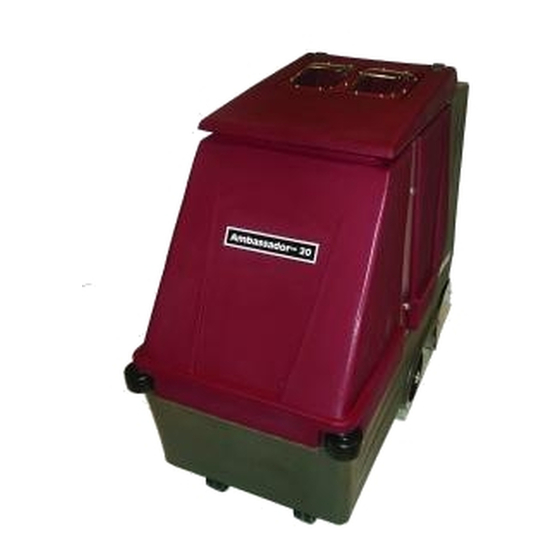

- Page 1 Model: Ambassador 20 Automatic C8420-115 Carpet Scrubber C8420-240 OPERATION SERVICE PARTS CARE...
- Page 2 This manual is furnished with each new Minuteman Ambassador 20. This provides the necessary operating and preventative maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: •...
-
Page 3: Table Of Contents
OPERATING INSTRUCTIONS................... 6 Accessory Attachments ................... 6 EXPLODED VIEWS ....................7 WIRING DIAGRAM ....................15 TROUBLE SHOOTING GUIDE ................17 SOLUTION SYSTEM .................... 17 SOLUTION RECOVERY ..................17 ELECTRICAL SYSTEM A.C.................. 18 Minuteman International Made Simple Commercial Limited Warranty..... 19... -
Page 4: Important Safety Instructions
COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING: To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. -
Page 5: Inspection
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. WARNING • Read Instructions Manual before operating this piece of equipment. •... -
Page 8: Operator View Of Controls
OPERATOR VIEW OF CONTROLS... -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Filling: Fill the solution tank with the desired amount of water and add liquid cleaning solution to the proper dilution ratio. DO NOT USE powdered cleaning chemicals. Powders are unlikely to dissolve thoroughly, resulting in clogging the inline solution filter. -
Page 10: Exploded Views
EXPLODED VIEWS... -
Page 18: Wiring Diagram
WIRING DIAGRAM... - Page 19 WIRING DIAGRAM (cont’d)
-
Page 20: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Use this guide to pinpoint problem areas that may arise with the use of your Ambassador 20. CAUTION! Unplug supply cord before servicing machine components. SOLUTION SYSTEM I. No water dispensed from spray jets A. The hose connection at the pump for the spray tube may not be tight. Disconnect, then reconnect the fitting, to ensure the fittings snap together securely. -
Page 21: Electrical System A.c
SOLUTION RECOVERY (cont’d) II. Pump motor does not run. A. Check pressure switch for short circuit. By-pass the pressure switch by connecting the two black leads to the switch to one another, if the motor then runs, replace the pressure switch. III. -
Page 22: Minuteman International Made Simple Commercial Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations.
