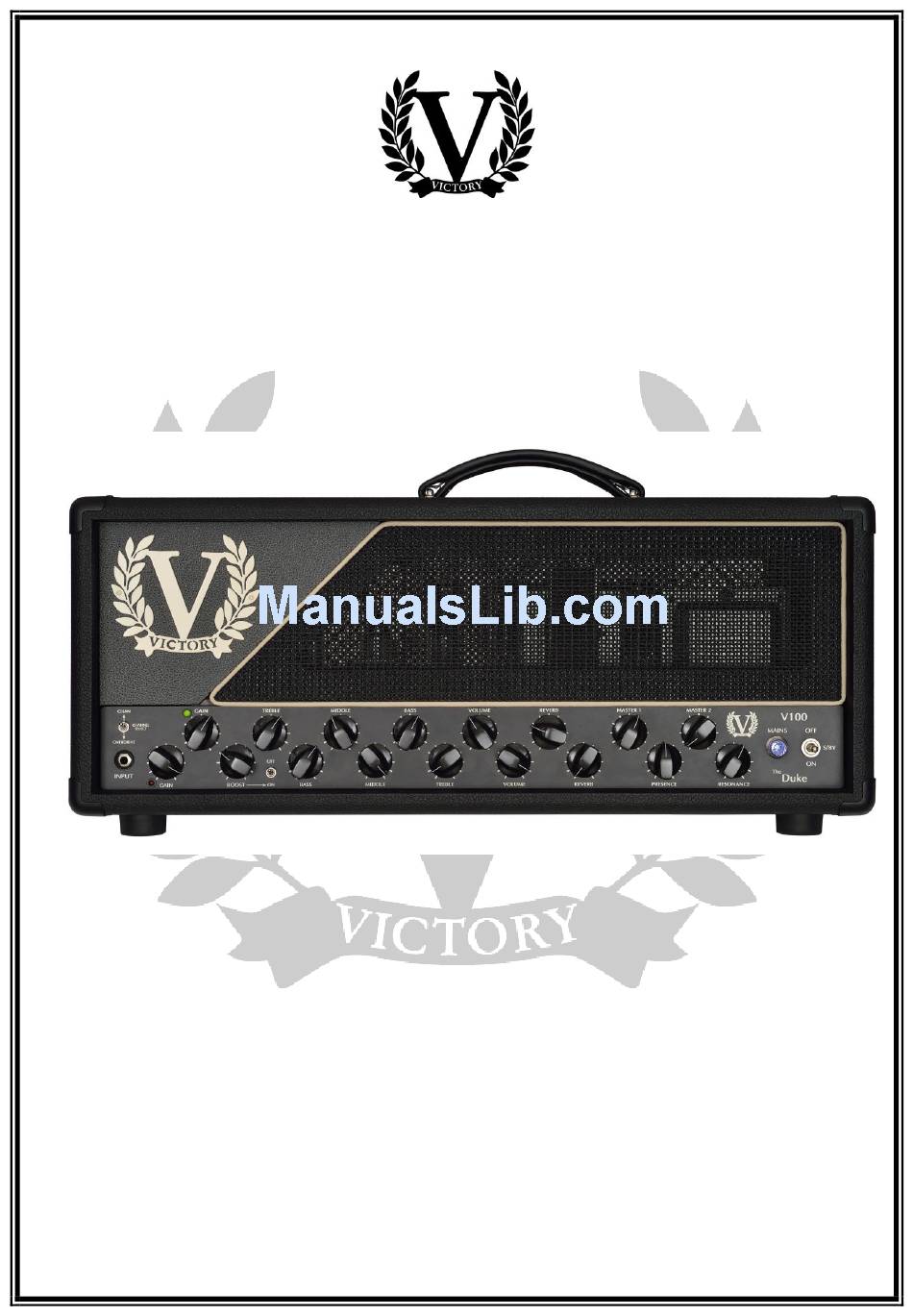

Page 1: User Guide

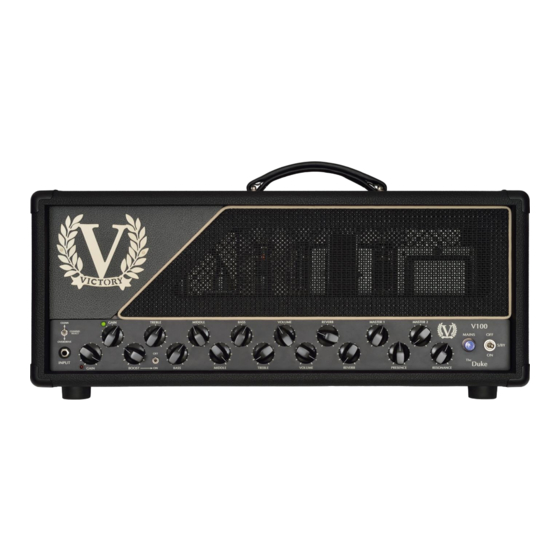

VICTORY V100 All Valve 100 Watt Guitar Head User Guide... - Page 2 Thank you, and congratulations on acquiring a Victory Amplification V100. This amp is proudly designed and built by our committed team of engineers and craftsmen in the UK. We value simplicity in operation, flexibility in use and absolutely no compromise in tone. Our aim is simple: to create amplifiers that inspire you ever onwards in your playing and never let you down.
- Page 3 Input Plug your guitar in here! Channel switch The V100 has two channels that you can switch between using this front-panel toggle, or a remote footswitch plugged into the Channel/Boost footswitch socket. Clean channel The clean channel is indicated by a green LED channel indicator next to the gain control.
- Page 4 Boost The overdrive in the V100 also has a switchable gain boost, which is accessible via the footswitch or front panel toggle switch. It enables you to go from crunchy rhythm guitar to sustaining lead guitar tones.
- Page 5 OFF-S/BY-ON Switch The V100 should always be switched from OFF to the centre position, Standby, (S/BY) first. The ‘STANDBY’ mode turns just the valve heaters and low voltages on. This allows the valves to heat up before they get 100s of volts up them, (it’s less of a shock). After around 60 seconds, the amp can be switch to ON.
- Page 6 The output transformer in the V100 has 3 separate secondary windings; a 4 Ohm, an 8 Ohm and a 16 Ohm. This makes it easy to connect many different combinations of speakers. There are five speaker output jacks: 2 x 4 ohms, (wired in parallel), 2 x 8 ohms, (wired in parallel) and 1 x 16 ohms.
- Page 7 Whenever any output valves are changed, the amplifier will need to be re-biased. This must be done by a qualified or competent person as there are lethal voltages inside the V100 and getting killed by a guitar amplifier is a rubbish way to die.
- Page 8 27.7Kgs Boxed Warranty All Victory products come with a 5 year limited warranty. This covers any defects in manufacturing or faulty components. Valves and speakers are warrantied for 90 days from the purchase date but replacement parts will be at our discretion. Please contact your local dealer if you have any issues with your Victory product.
