Summary of Contents for Victory The Sheriff 22

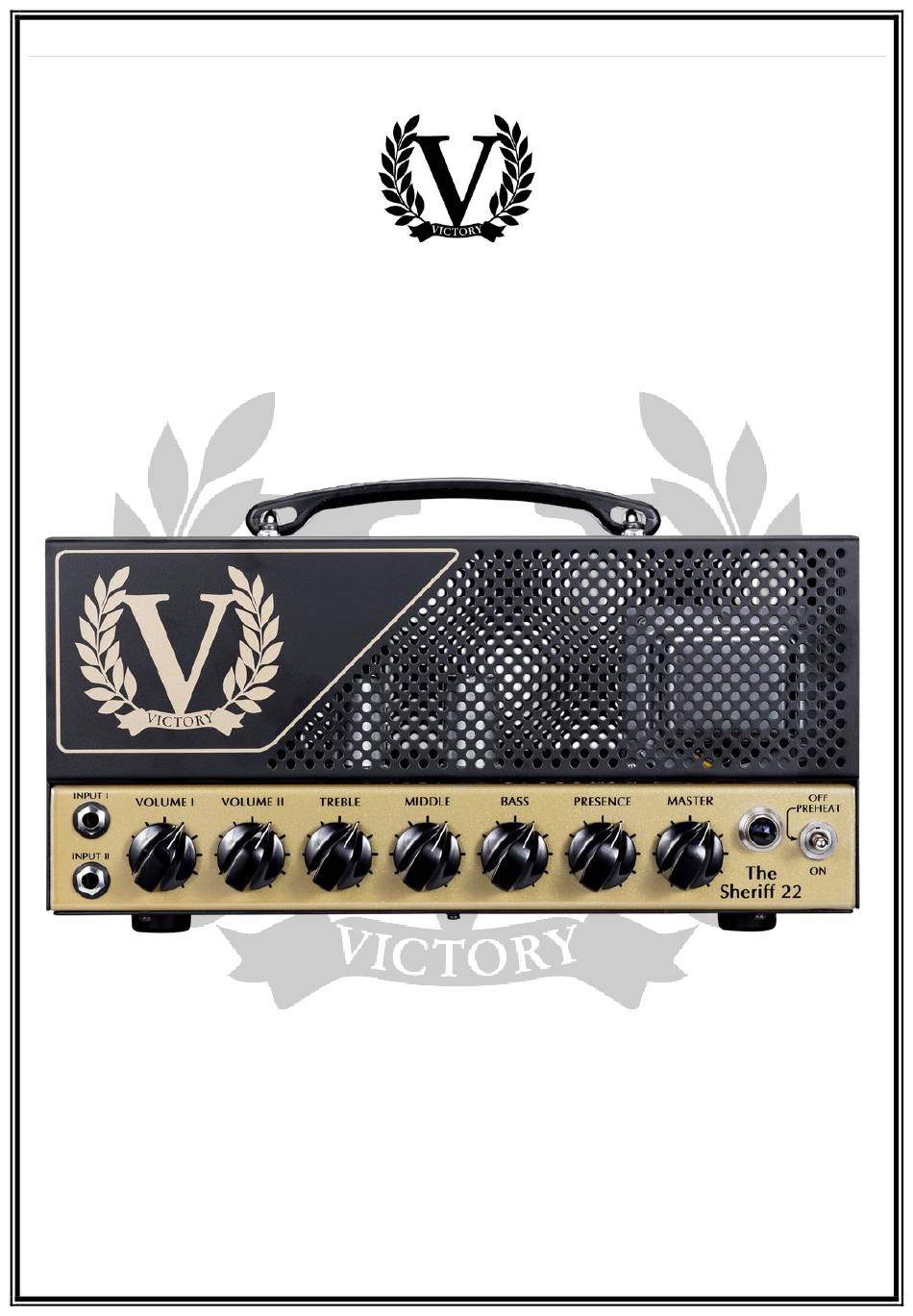

- Page 1 P a g e VICTORY ‘The Sheriff 22’ All Valve 22 Watt Guitar Head User Guide...
- Page 2 P a g e Thank you, and congratulations on acquiring a Victory Amplification, ‘The Sheriff 22’. This amp is proudly designed and built by our committed team of engineers and craftsmen in the UK. We value simplicity in operation, flexibility in use and absolutely no compromise in tone.
- Page 3 & 80s classic rock and beyond. FOOTSWITCH The Sheriff 22 comes with a single latching footswitch to switch between INPUT I and INPUT II. To enable this function, the Footswitch needs to be plugged into INPUT I and your guitar plugged into INPUT II.
- Page 4 MASTER The MASTER volume control is used to set the stage or overall volume of the Sheriff 22. If this is turned to maximum, then the 22 becomes a non-master volume amplifier where the VOLUME I &...
- Page 5 (i.e. if it’s a 0.5A fuse in the UK @ 230V, it will needs to be a 1A fuse for the USA @ 115V). Always use the correct rating and type of fuse. Victory amplifiers exclusively use UL- approved 20x5mm glass ‘T’ or ‘Timed’ fuses. If you have difficulty acquiring the correct fuses, please contact Victory using service@victoryamps.co.uk.
- Page 6 Biasing The Sheriff 22 is a fixed Bias amplifier and requires the output valve idle current to be pre-set with a variable resistor. Biasing needs to be done each time the output valves are replaced and should be checked periodically to make sure they are working at their optimum for sound quality &...
- Page 7 The output transformer in the Sheriff 22 has 2 separate secondary windings; a 16 Ohm and an 8 Ohm. This makes it easy to connect different combinations of speakers. There are three speaker output jacks: 2 x 8 Ohms, (wired in parallel) and 1 x 16 ohms.
- Page 8 The SEND socket is for connection to the input of effects units. On the Sheriff 22 it is a lower impedance version of the signal that appears at the INPUT. Use the send to connect to floor pedals or rack effects such as Delay, Chorus and Reverb etc.
- Page 9 Dedicated Low Power Output: 0.3 Watts Notes on output volume and speaker attenuation: Victory amplifiers are designed to be played loud with gigging and rehearsal in mind so it can be quite difficult to get suitable volumes and tones from valve amplifiers at home or ‘bedroom’...
- Page 10 10 | P a g e Please contact your local dealer if you have any issues with your Victory product. Victory are setting up Official Service Centres around the world so please check on the Victory website to see where your nearest centre is located. These will have original Victory spare parts including the recommended valves for your amplifier direct from the Victory factory.
- Page 11 Please make sure you don’t close these pins up fully or it will be difficult to replace the Valves. Replacement valves and tools for biasing such as a Multimeter and Terminal Screwdrivers are available directly from Victory in the store: www.victorystore.co.uk.
- Page 12 P a g e A note from Team Victory We’ve built your Victory Amplifier as a professional, no-compromise musical instrument, with a great deal of pride and an absolute commitment to tone. We encourage you to learn to get to know it by experimenting with all the controls, in order to discover its vast array of tonal combinations.
