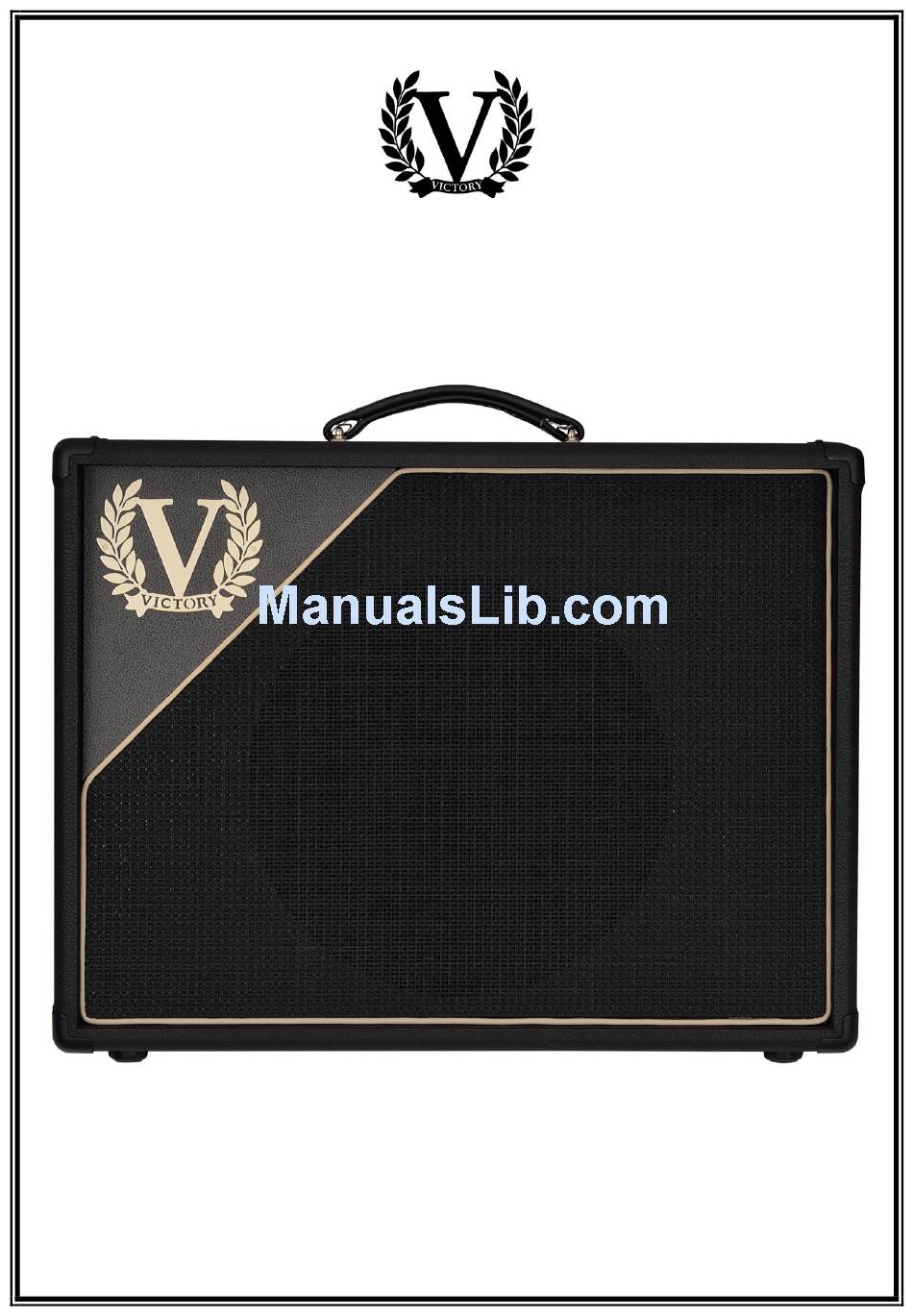

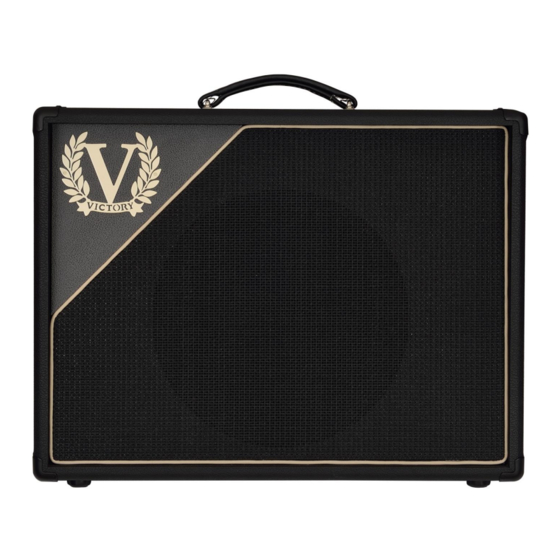

- Page 1 VICTORY V10 ‘The Baron’ All Valve 10 Watt Guitar Combo User Guide...
-
Page 2: Safety First
Thank you, and congratulations on acquiring a Victory Amplification V10 ‘The Baron’ combination amplifier. This amp is proudly designed and built by our committed team of engineers and craftsmen in the UK. We value simplicity in operation, flexibility in use and absolutely no compromise in tone. -
Page 3: Front Panel
Unauthorized substitutions may result in fire, electric shock, or other hazards. What’s included? Your new Victory V10 comes with the following: 1 x Single Latching Footswitch for BOOST function A mains lead for your country... -
Page 4: Effects Loop
may find you need to reduce the bass control. As with all the EQ pots, adjust to taste! MIDDLE Controls the midrange frequencies in your sound. Run the middle control higher to help cut through a band mix, or generally fatten and ‘widen’ your sound. - Page 5 conjunction with the Volume control on the guitar allows for a wide range of Volumes & Gains to be achieved. This can be very powerful for tone shaping. These Master Volume controls are positioned before the phase splitter valve and after the FX return. OCTAL MASTER This controls the amount of signal being sent through the 8-Pin or ‘OCTAL’...
- Page 6 (i.e. if it’s a 1A fuse in the UK @ 230V, it will needs to be a 2A fuse for the USA @ 115V). Always use the correct rating and type of fuse. Victory amplifiers exclusively use UL-approved 20x5mm glass ‘T’ or ‘Timed’ fuses. If you have difficulty acquiring the correct fuses, please contact Victory using service@victoryamps.co.uk.
- Page 7 16 Ohm cabinet and then connect this cabinet, (via the LINK socket) to the input of the second 16 Ohm cabinet. All Victory cabinets have a LINK socket which is wired in parallel with the INPUT socket.
- Page 8 So the rule is that if you use any extension speaker then the internal speaker is always unplugged and either not used or plugged into one of the ‘EXTENSION SPEAKER’ sockets depending on the impedance of the extension speaker. BOOST FOOTSWITCH: Connect the supplied Single latching footswitch here to switch the BOOST on &...
- Page 9 (designed for EL34/6L6 valves), so this clip will need to be removed. Later versions of the V10 have a large spring-retainer fitted which is suitable for all types of Octal valve. If you wish to fit one of these, please contact Victory on service@victoryamps.com with a mailing address and we’ll post one out to you.
- Page 10 the amplifier is disconnected from the mains supply and left OFF for at least an hour. This will ensure that any voltages internally have dissipated. Using a small flat-blade screwdriver, (ideally no more than 1mm across with an insulated handle), and with the valve removed, carefully push the screwdriver down the end of the pin socket and gently push to close the gap.
- Page 11 Output Power NOVAL & OCTAL both at 10: 10.5 Watts Warranty All Victory products come with a 5 year limited warranty. This covers any defects in manufacturing or faulty components. Valves and speakers are warrantied for 90 days from the purchase date but replacement parts will be at our discretion.
- Page 12 HAND MADE IN ENGLAND Issue 2 13.07.2016...
