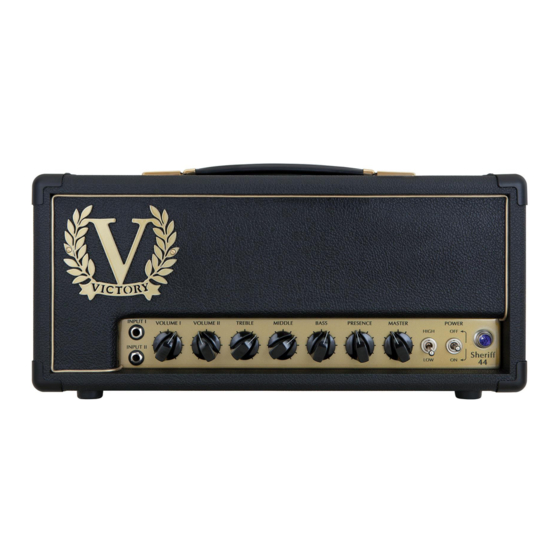

- Page 1 VICTORY ‘The Sheriff 44’ All Valve 44 Watt Guitar Head User Guide...
- Page 2 Thank you, and congratulations on acquiring a Victory Amplification, ‘The Sheriff 44’. This amp is proudly designed and built by our committed team of engineers and craftsmen in the UK. We value simplicity in operation, flexibility in use and absolutely no compromise in tone.
- Page 3 & 80s classic rock and beyond. Footswitch The Sheriff 44 comes with a single latching footswitch to switch between Input I and Input II. To enable this function, the Footswitch needs to be plugged into Input I and your guitar plugged into Input II.
- Page 4 MASTER The Master Volume control is used to set the stage or overall volume of the Sheriff 44. If this is turned to maximum, then the 44 becomes a non-master volume amplifier where either Volume control in conjunction with the Volume control on the guitar allows for a wide range of Volumes &...
- Page 5 (i.e. if it’s a 1A fuse in the UK @ 230V, it will needs to be a 2A fuse for the USA @ 115V). Always use the correct rating and type of fuse. Victory amplifiers exclusively use UL- approved 20x5mm glass ‘T’ or ‘Timed’ fuses. If you have difficulty acquiring the correct fuses, please contact Victory using service@victoryamps.co.uk.
- Page 6 BIAS Switch: FIXED or CATHODE The Sheriff 44 has the option of Fixed or Cathode Bias. Fixed Bias gives more power, (see below for all the available modes) and requires the output valve idle current to be pre-set with a variable resistor, (potentiometer in this case). Cathode Biasing sounds and feels more urgent and dynamic at lower volumes but compresses quickly as the volume goes up.
- Page 7 5. For a pair of 16 Ohm cabinets, use both of the 8 Ohm sockets. FX LOOP The Sheriff 44 has an effects loop, which is a simple, low impedance, series loop. This will not add any noise, gain or volume to your signal so if you experience such changes when using an effect pedal, they will be caused by that effect.
- Page 8 Output Power WARNING! The Sheriff 44 has been designed to achieve a very high sound pressure level (SPL) so caution is required when playing in high power mode or hearing damage may result. The following measurements were taken at 240V mains input into an 8 Ohm load using a 1 KHz Sine Wave with the output waveforms set just before clipping.
